Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Specifications
Certification :
AISI
MOQ :
100
Price :
2.42
Thickness range :
0.3 - 80.0mm
Width options :
1000mm, 1219mm, 1250mm, 1500mm, 1800mm, 2000mm
Length options :
1000mm-6000mm
Material grade :
304L
Surface finish :
2B, BA, HL, Mirror, NO1, NO4, 8K
Technique :
Hot Rolled
Shape :
Flat
Carbon content :
0.03% max
Chromium content :
18.00 - 20.00%
Nickel content :
8.00 - 12.00%
Tensile strength :
485 MPa min
Yield strength :
170 MPa min
Elongation :
40% min
Hardness :
183 HB max
Standard sizes :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Description
TISCO 304L Stainless Steel Plate & Sheet
High-quality 304L stainless steel plates and sheets with thickness range from 0.3mm to 80.0mm, manufactured by TISCO to AISI 304L standards.
Product Specifications
Product NameStainless Steel Plate
ThicknessCold rolled: 0.4mm-3mm | Hot rolled: 3.0mm-100mm
Width1000mm, 1219mm, 1250mm, 1500mm, 1800mm, 2000mm or customized
Length1000mm-6000mm or as requested
MaterialStainless Steel
Finish2B, BA, HL, Mirror, NO1, NO4, 8K
StandardASTM, AISI, DIN, EN, GB, JIS
Available Materials200 series: 201, 202, 202cu, 204
300 series: 301, 302, 303, 304, 304L, 304H, 309S, 310, 310S, 316, 316L, 317L, 321, 347
400 series: 409, 409L, 410, 420, 430, 431, 439
Others: 2205, 2507, 904L, 317L, 254SMO, 253MA, 630, etc.
BrandTISCO, BAOSTEEL, ZPSS, LISCO, JISCO
Application RangeDecoration Industry, Kitchenware, Building, Elevator
Available Size Specifications
Thickness1000mm1219mm1500mm1800mm2000mm
0.3mm★★
0.4mm★★
0.5mm★★
0.6mm★★★
0.7mm★★
0.8mm★★★
1.0mm★★★
1.2mm★★★
1.5mm★★★
2.0mm★★★★★
2.5mm★★★★★
3.0mm★★★★★
4.0mm★★★
5.0mm★★★
6.0mm★★★
8.0mm★★★
10.0mm★★
12.0mm★★
14.0mm★★
16.0mm★★
20.0mm★★
25.0mm★
30.0-80.0mm★
About 304 Stainless Steel
Grade 304 is the most commonly used stainless steel. It is an austenitic, corrosion-resistant steel with excellent strength, toughness, fabrication characteristics and weldability. The low carbon version, 304L, may be required for full corrosion resistance when thicker sections are welded. The 304H version has a guaranteed minimum carbon content, which ensures good strength at high temperatures.
Typical Applications
  • Brewing and dairy equipment
  • Evaporators, drums, barrels
  • Heat exchangers, hospital equipment
  • Refrigeration parts
  • Chemical and food processing
  • Shop fittings, bench tops, kitchens
  • Kitchen utensils, sinks, wash troughs
  • Hand rails, dishwashers, clothes dryers
  • Ovens, heating trays, air conditioning equipment
  • Guttering and rain water goods
  • Counters and display cabinets
  • Hot and cold food bars
  • Commercial oven hoods, beer barrels
Chemical Composition
GradeElementCarbonSiliconManganesePhosphorusSulphurNickelChromiumNitrogen
304Spec (max)0.080.752.000.0450.0308.00-10.5018.00-20.000.10
Typical0.0450.491.220.0280.0058.318.20.045
304LSpec (max)0.030.752.000.0450.0308.00-12.0018.00-20.000.10
Typical0.0200.421.460.0280.0059.118.30.048
304HSpec (max)0.04-0.100.752.000.0450.0308.00-10.5018.00-20.00-
Typical0.0490.491.250.0280.0058.318.30.043
Mechanical Properties
GradeThickness0.2% Proof Stress (MPa)Tensile Strength (MPa)Elongation (%)Hardness HB (max)
304Specification (min)20552040202
0.3 - 3.5mm26066055160
3.6 - 6mm25060055160
304> 6mm24058055155
304LSpecification (min)17048540183
304HSpecification (min)20552040202
Available Products
We can supply 304 stainless steel as plate, coil, sheet, strip, round, hexagon, flat bar, angles, tube, pipe and welding consumables.
Finishing Options
No1 (hot rolled, annealed and pickled), 2D (cold rolled), 2B (cold rolled, skin passed), N4 (polished), BA (bright annealed). Flat products are available surface protected with white polyethylene (PE) film. Protection with blue poly vinyl chloride (PVC) for deep drawing or black PVC (for heavy forming) is also available.
Corrosion Resistance
Grade 304 stainless steel has excellent corrosion resistance in many environments. It gives good service in atmospheric conditions, resisting most environments except for marine conditions, or where industrial pollution is heavy. Best appearance is maintained where the design allows even rain washing of the surface. It has given excellent service in some situations in potable water. Pitting and crevice corrosion may occur at higher chloride content, and 200 ppm is accepted as the upper limit. Grade 304 stainless steel is not generally used in seawater, due to the probability of crevice corrosion developing under sediments, precipitation and biofouling.
Applications
  • Architecture Building: Surface, Pillar, Window frame, Stair hand-rail
  • Kitchen Utensil: Washing machine drum, Gas range stove, Plate, Housewares, Hollowware
  • Others: Computer components, Automotive trim
Packing & Delivery
MOQ1 Ton
Price TermFOB
PaymentL/C at sight or 30% TT as deposit
Delivery Time20-30 days after receiving deposit by T/T or L/C
SampleSamples free and express charges bear by you
PackagingStandard export package with water proof paper, metal pallet, angle bar protection, and steel strip or as required

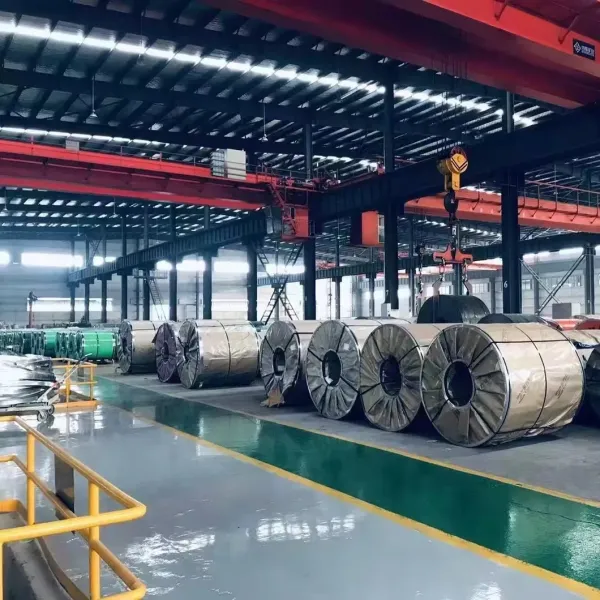

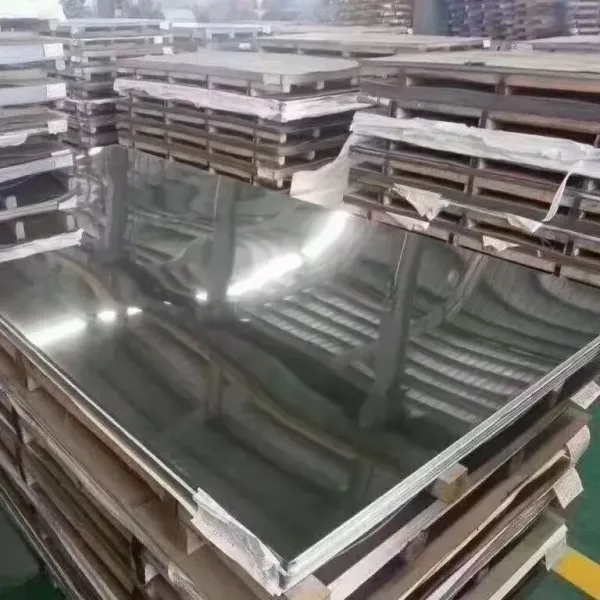

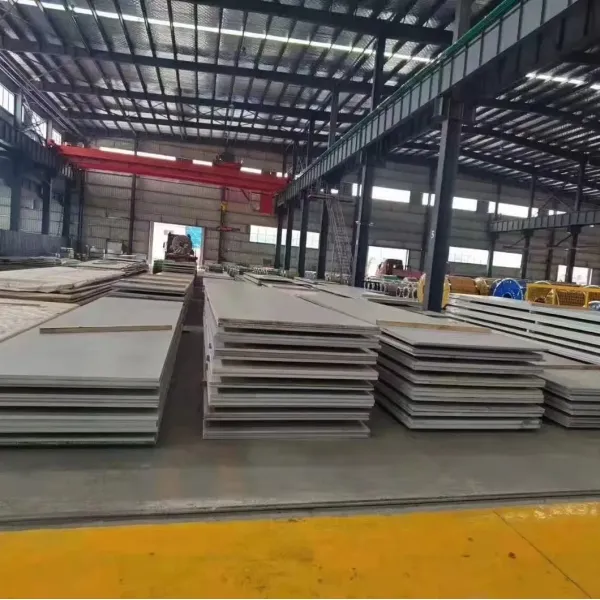

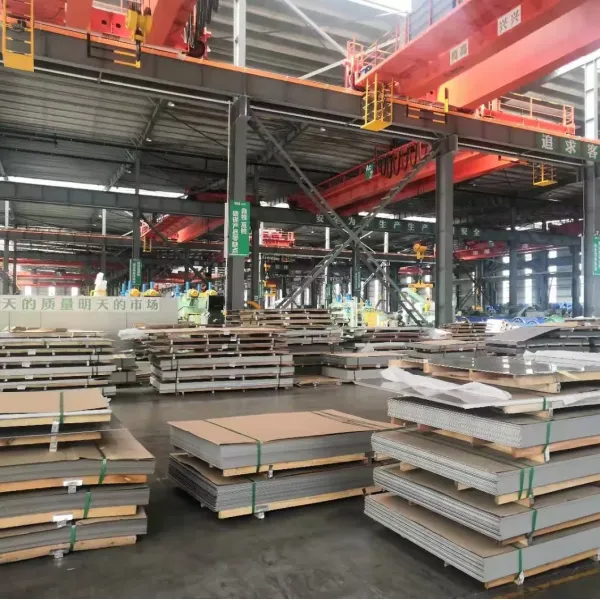

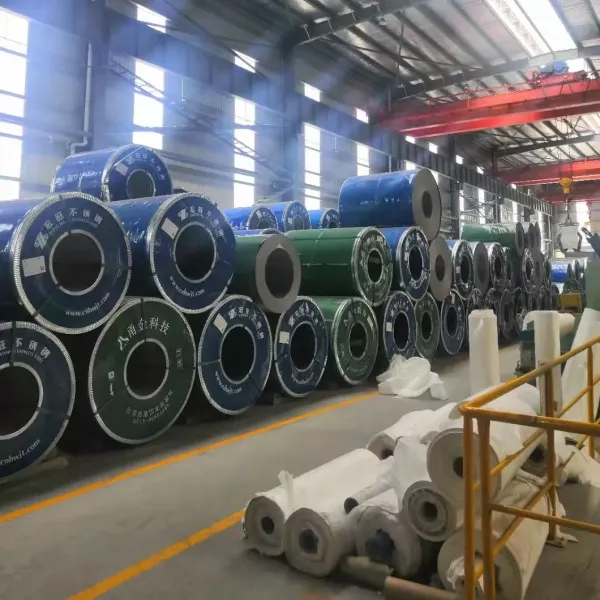

Product Images
Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard Tisco 304L Stainless Steel Plate & Sheet with 0.3 - 80.0mm Thickness Polished Surface and ASTM AISI DIN EN GB JIS Standard
Company Information
Our company is a professional stainless steel trading company integrating sales, processing, distribution and storage. We always carry out the "high efficiency, mutual benefit, service first" business philosophy and service purpose, adhere to reasonable and preferential prices, beyond customer expectations of service, to provide the society with a variety of inexpensive quality stainless steel products.
The company specializes in the distribution of domestic and imported cold and hot rolled stainless steel coils and plates, operating steel types: 201, 202, 304, 321, 316L, 444, 409, 430, 309S, 310S and so on. The products come from Shanxi TISCO, Guangzhou Lianzhong, Zhangjiagang Pohang, Ningbo Baoxin, AvestaPolarit, Outokumpu, POSCO, etc. We also provide processing services including opening, grinding, slitting, and shearing.
The company's products are widely used in: chemical machinery, pharmaceutical machinery, food machinery, drying equipment, environmental protection equipment, metallurgical machinery, pressure vessels, kitchen equipment, etc.
