EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
Specifications
Certification :
ISO, AISI, ASTM, GB, EN, DIN
MOQ :
500KGS
Price :
2.85-4.04 USD/KG
Brand Name :
TSING SHAN
Model Number :
1.4462 S31803 S32205
Place of Origin :
China
Payment Terms :
L/C, T/T
Supply Ability :
50000KGS
Delivery Time :
7 Days
Packaging Details :
Export Packing
Model NO. :
2205
Shape :
Flat
Technique :
Hot Rolled
Surface Treatment :
Pickling
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Thickness :
Cold Rolled 0.6 - 3.0mm, Hot Rolled 3.0 - 80.0mm
Width :
1000mm, 1219mm, 1500mm, 1800mm, 2000mm
Standard Size :
1000*2000mm, 1219*2438mm, 1500*6000mm, 1800*6000mm, 2000*6000mm
Tensile Strength :
621 MPa min
Yield Strength :
448 MPa min
Elongation :
25% min
Hardness Rockwell C :
31 max
Hardness Brinell :
293 max
Production Capacity :
50000kgs
Packing Weight :
2 - 3 Tons
Description
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
Product Specifications
Product Name Duplex Stainless Steel Plate
Grade 2205 / S31803 / S32205 / 1.4462
Thickness Cold Rolled 0.6 - 3.0mm, Hot Rolled 3.0 - 80.0mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm
Standard Size 1000×2000mm, 1219×2438mm, 1500×6000mm, 1800×6000mm, 2000×6000mm or custom cutting
Brand POSCO, TISCO, BAOSTEEL, JISCO, ESS
Other Grades 304, 316L, 309S, 310S, 321, 347, 2507, 904L, 254SMO, etc.
Service Cutting
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
Duplex 2205 stainless steel (both ferritic and austenitic) is used extensively in applications that require good corrosion resistance and strength. The S31803 grade stainless steel has undergone modifications resulting in UNS S32205, offering higher resistance to corrosion.
At temperatures above 300°C, brittle micro-constituents undergo precipitation, and below -50°C they undergo ductile-to-brittle transition, making this grade unsuitable for use at these temperatures.
Duplex 2205 (UNS S32205) is a nitrogen-enhanced stainless steel chosen for its excellent corrosion resistance and high strength. It offers superior corrosion resistance compared to most austenitic stainless steels, with additional benefits including:
  • High resistance to pitting and crevice corrosion
  • Excellent performance in most caustic environments
  • Good weldability
Chemical Composition
Compositional ranges for grade 2205 duplex stainless steel
Grade C Mn Si P S Cr Mo Ni N
2205 (S31803) - 0.030 - 2.00 - 1.00 - 0.030 - 0.020 21.0-23.0 2.5-3.5 4.5-6.5 0.08-0.20
2205 (S32205) - 0.030 - 2.00 - 1.00 - 0.030 - 0.020 22.0-23.0 3.0-3.5 4.5-6.5 0.14-0.20
Mechanical Properties
Typical mechanical properties of grade 2205 duplex stainless steel
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Rockwell C (HR C) Brinell (HB)
2205 621 448 25 31 max 293 max
Grade Specification Comparison
Grade UNS EN BS JIS SS
2205 S31803/S32205 1.4462 X2CrNiMoN22-5-3 SUS329J3L 2377
Applications
The unique material composition makes Duplex 2205 ideal for critical applications across various industries:
  • Chemical processing, transport, and storage
  • Marine and land cargo tanks
  • Biofuel production
  • Food processing
  • Pulp and paper manufacturing
  • Oil and gas exploration and processing
  • Waste management
  • High chloride environments
Product Gallery

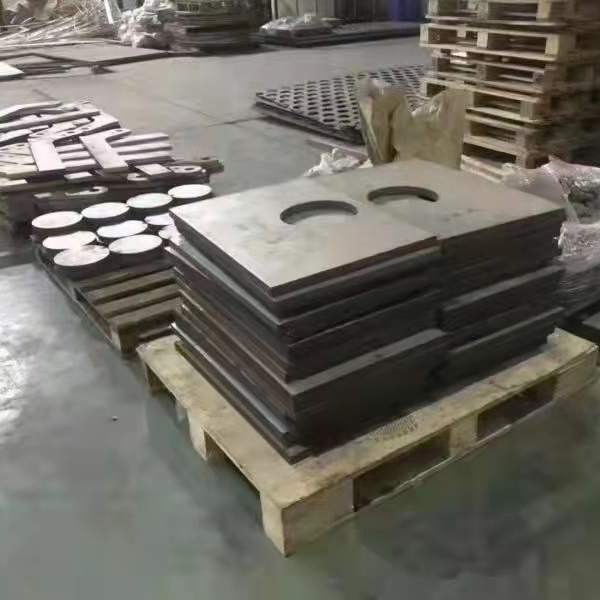

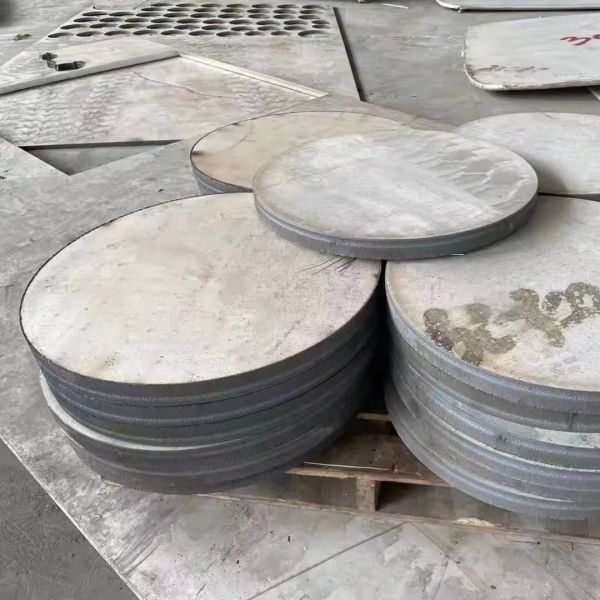

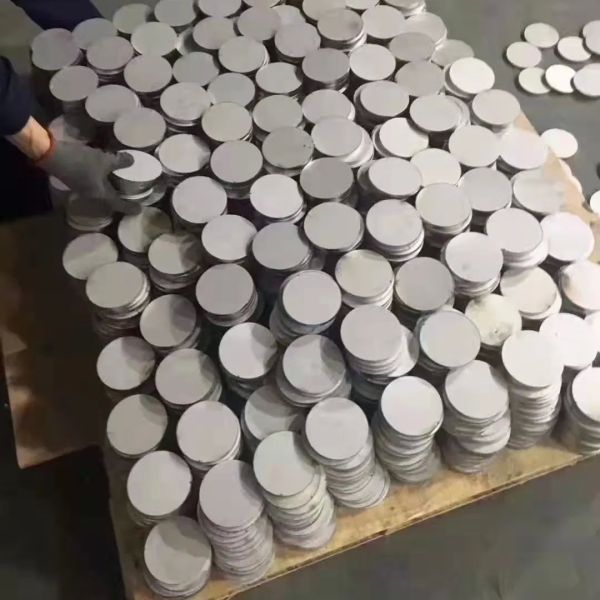

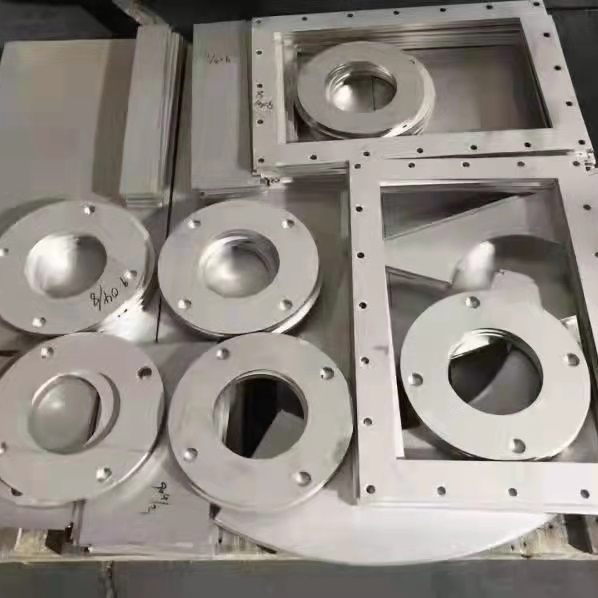

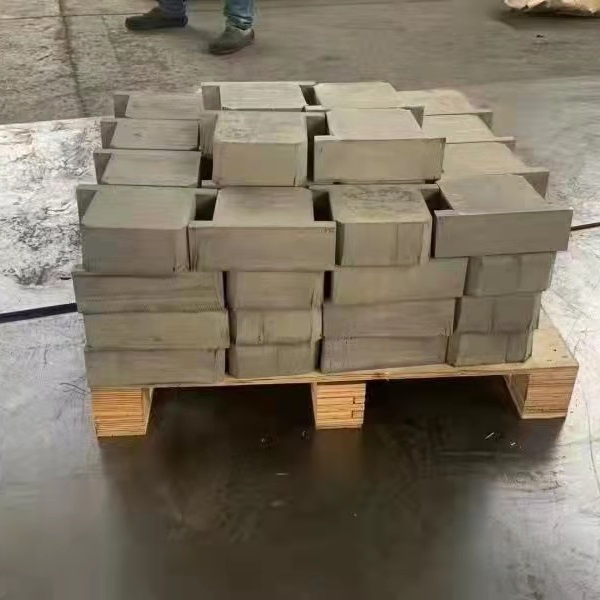

EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
Company Overview
  • Integrated wholesale of duplex steel and material processing
  • Domestic partners: TISCO, BAOSTEEL, POSCO, JISCO, LISCO, TSINGSHAN, ESS, etc.
  • Foreign partners: COLUMBUS, NAS, OUTOKUMPU, Nippon metal, Nippon Yakin Kogyo NSC, etc.
  • Main products: 2205, 2507 duplex stainless steel, 254SMO austenitic stainless steel
  • Applications: ship washing tower equipment, roadbed desulfurization tower, cooling tower, and various industrial uses
  • Processing equipment: Imported Italian machinery including hot rolling machines, strip machines, high-level water cutting machines, plasma cutting machines, large CNC milling machines, boring machines, and other advanced equipment
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
Logistics & Packaging
Packaging Information
  • Packaging Method: Wooden pallets with waterproof paper
  • Packaging Size: 1000×2000mm, 1219×2438mm, 1500×6000mm, 2000×6000mm or custom sizes
  • Packaging Weight: Approximately 2-3 tons per package
Container Loading
  • 20ft container: 2.2m width × 2.2m height × 5.8m length, capacity 25 tons
  • 40ft container: 2.2m width × 2.2m height × 11.6m length, capacity 25 tons
EN 10204-3.1 Certified Grade 1.4462 2205 Duplex Stainless Steel Plate with Hot Rolled Technique
