ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar with H1150 Heat Treatment for High Tensile Strength
Specifications
Certification :
ISO, AISI, ASTM, EN, DIN, JIS
MOQ :
50
Price :
3.15
Model NO. :
631
Shape :
Round
Technique :
Hot Rolled
Surface Treatment :
Bright
Diameter :
Ø1/4'' to Ø16'' (6mm~400mm)
Length :
1~8 meters
Diameter Tolerance :
H9, H11, H13, K9, K11, K13
Length Tolerance :
0/+50mm
Finishing :
Solution treated + age hardening heat treated (H900, H1100, H1150)
Tensile Strength :
1015Mpa
Yield Strength :
906Mpa
Elongation :
17.1%
Reduction Area :
60.3%
Hardness :
HRC 34.5
Production Capacity :
50000kgs
Description
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines
High-performance precipitation hardening stainless steel round bars designed for demanding industrial applications.
Product Specifications
Product ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines
Steel Type AISI 631 (17-7PH) / 00Cr17Ni4Cu4Nb
Standard ASTM A564
Diameter Ø1/4" to Ø16" (6mm~400mm)
Common sizes: Ø1", Ø2", Ø2.5", Ø3", Ø3.5", Ø4", Ø4.5", Ø5", Ø6", Ø7", Ø8"
Length 1~8 meters
Surface Bright
Diameter Tolerance H9, H11, H13, K9, K11, K13 (as per client requirements)
Length Tolerance 0/+50mm
Finishing Solution treated + age hardening heat treated (H900, H1100, H1150)
Material Properties
High tensile strength and hardness after heat treatment. Excellent mechanical properties suitable for demanding applications.
Mechanical Properties
Tensile Strength (Rm) 1015 MPa
Yield Strength (Rp0.2) 906 MPa
Elongation (A5) 17.1%
Reduction of Area (Z) 60.3%
Hardness (HRC) 34.5
Applications
  • Shipbuilding industry: marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft
  • Pump shafts and valve parts
  • Machine manufacturing industry
  • Paper mill equipment
Delivery & Certification
Delivery Time Generally within 25 days (quantity dependent)
Certification ISO, BV, TUV, SGS, Mill Test Certificate
Package Fumigated wooden boxes for optimal protection
Additional Products Available
Stainless Steel Products: Sheet/plate, coil, pipe/tube, bar/rod, square/angle bar
Galvanized Steel Products: Sheet/plate, coil, pipe/tube
Material Grades: 304, 321, 316, 316L, 310S, 309S, 202, 201, 430, 409L, 444, 410s, 904L, 2205, 2507, Incoloy 800/800H/800HT/825, Inconel 600/625/718, Monel 400, Hastelloy C-276
Company Capabilities
23 years of specialization in stainless steel products with comprehensive processing services including cutting, welding, surface treatment, and precision processing.
  • Large storage company with own factory
  • Over 200 product types available
  • Special materials: Monel, Incoloy, Inconel, Hastelloy
  • Strict ISO 9001:2008 quality control system
  • AAA enterprise certified by Jiangsu government
  • Audited by top inspection companies: ISO, SGS, TUV, BV
  • Export to 60+ countries worldwide
  • Annual production capacity: 50,000 tons
Our Services
Free Samples Available for most products
Response Time 24-hour online support with 12-hour response guarantee
Delivery Most products delivered within 7 days after order
Trial Orders Small trial orders accepted
Customization Custom sizes and surface treatments available
Quality Inspection MTC, PMI inspection, SGS and third-party inspections
Technical Support Professional assistance for product selection

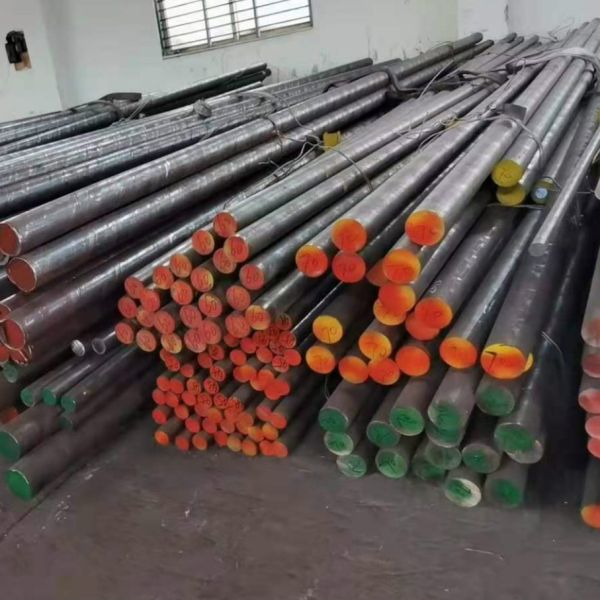

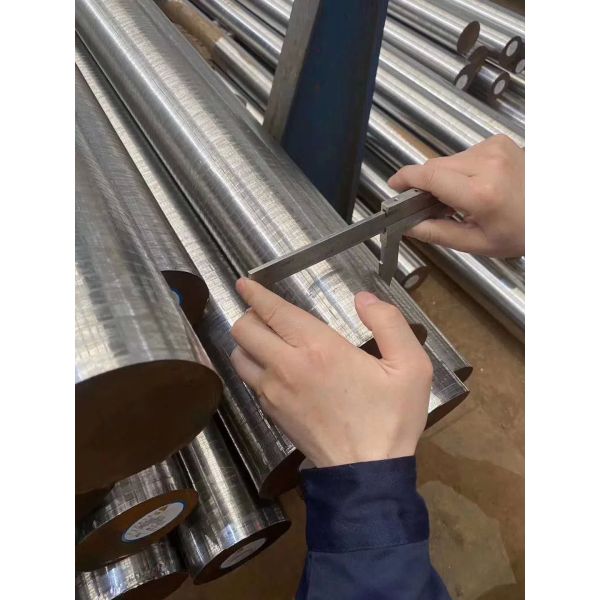

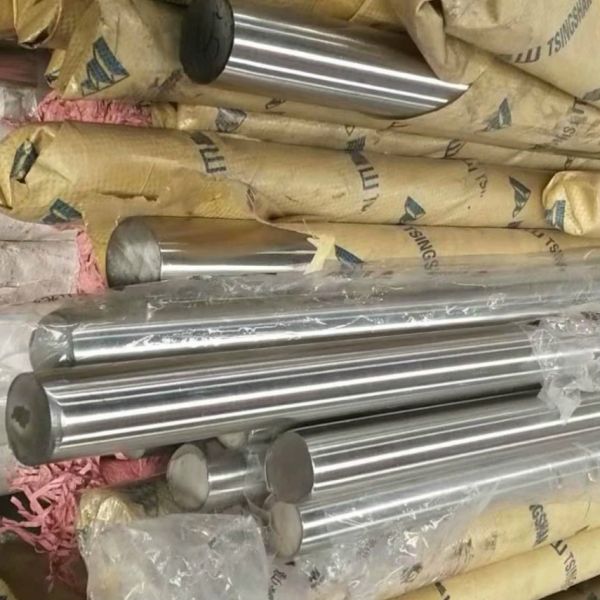

Product Images
