Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
Specifications
Certification :
ISO, AISI, ASTM, EN, DIN, JIS
MOQ :
50
Price :
3.4
Shape :
Round
Technique :
Hot Rolled
Surface Treatment :
Bright
Diameter :
8 - 450mm
Length :
6m /pcs or cutting as request
Tensile Strength :
1105 - 1310 MPa
Yield Strength :
1000 - 1170 MPa
Elongation :
10 - 16%
Hardness :
28 - 44 HRC
Density :
7750 kg/m³
Thermal Conductivity :
18.4 - 22.7 W/m.K
Specific Heat :
460 J/kg.K
Electrical Resistivity :
800 nΩ.m
Max Temperature :
572°F (300°C)
Solution Treatment :
1040°C for 0.5 h
Description
Precipitation Hardening Stainless Steel 17-4PH Round Bar
UNS S17400 Steel Rod with Solution Treatment for applications requiring high strength and moderate corrosion resistance up to 600°F (316°C).
Product Specifications
Product
17-4PH Stainless Steel Round Bar
Standard
ASTM GB DIN EN
Diameter
8 - 450mm
Length
6m /pcs or custom cutting
Finishing
Black Bar / Bright Bar
Service
Cutting, surface polishing, heat treatment
Material Description
17-4PH (Type 630) is a chromium-copper precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. This grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance equivalent to Alloy 304 or 430 in most media.
Key Applications
  • Offshore equipment (foils, helicopter deck platforms)
  • Food processing industry
  • Pulp and paper industry
  • Aerospace components (turbine blades)
  • Mechanical components
  • Nuclear waste casks
  • Engine components
  • Boat propeller shafts
  • Plastic molding dies
  • Valves and gears
International Standards
ASTM A693 grade 630 (AMS 5604B) UNS S17400 • EURONORM 1.4542 X5CrNiCuNb 16-4 • AFNOR Z5 CNU 17-4PH • DIN 1.4542
Chemical Composition
Element Content (%)
C≤ 0.07
Mn≤ 1.00
Si≤ 1.00
P≤ 0.04
S≤ 0.030
Cr15.0 - 17.5
Ni3.0 - 5.0
Cu3.0 - 5.0
Nb+Ta0.15 - 0.45
Mechanical Properties
Condition Tensile Strength (MPa) Yield Strength 0.2% Proof (MPa) Elongation (% in 50mm) Hardness (HRC)
Solution Treated1105 typ1000 typ15 typ38 max
Condition 9001310 min1170 min10 min40 min
Condition 1150930 min724 min16 min28 min
Physical Properties
Property Value
Density7750 kg/m³
Thermal Conductivity (100°C)18.4 W/m·K
Thermal Conductivity (500°C)22.7 W/m·K
Specific Heat (0-100°C)460 J/kg·K
Electrical Resistivity800 nΩ·m
Mean Coeff. of Thermal Expansion (0-100°C)10.8 µm/m·°C
Heat Treatment
Solution Treatment (Condition A): Heated at 1040°C for 0.5 h, then air-cooled to 30°C. Small sections can be oil quenched.
Age Hardening: Performed at low temperatures to achieve required mechanical properties with typical shrinkage of 0.10% for H1150 condition and 0.05% for H900 condition.
Processing Characteristics
Welding: Can be welded using all conventional methods without pre-heating requirement.
Machining: Can be machined in solution-treated condition with rates similar to grade 304 stainless steel.
Alternative Grade Comparison
Alternative Grade Selection Considerations
431Higher toughness, better availability in some sizes
416Free-machining martensitic stainless steel, lower cost
316Higher corrosion resistance but much lower strength
2205Much better corrosion resistance with lower strength

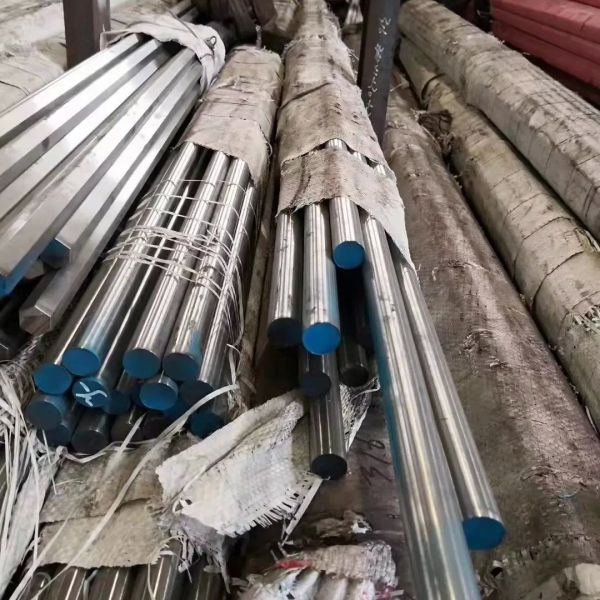

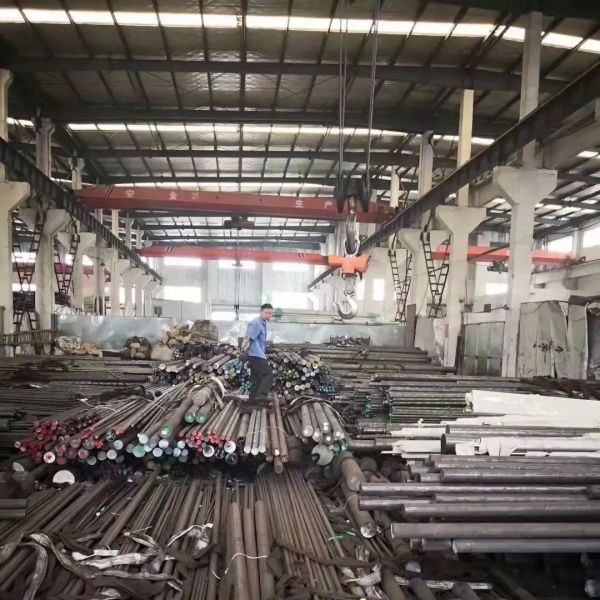

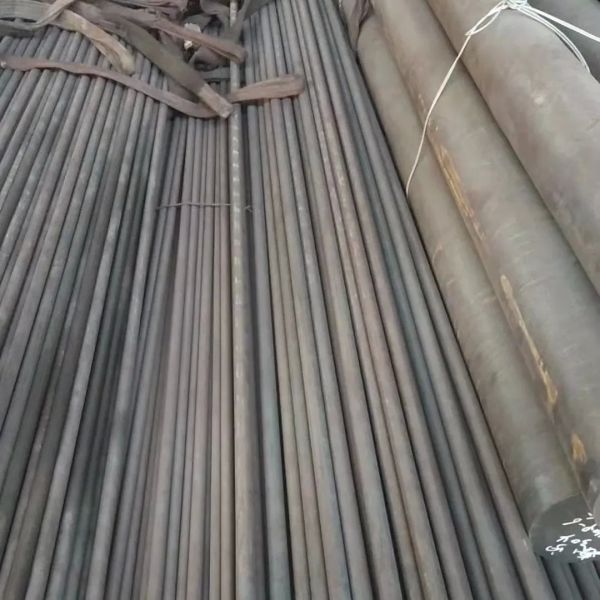

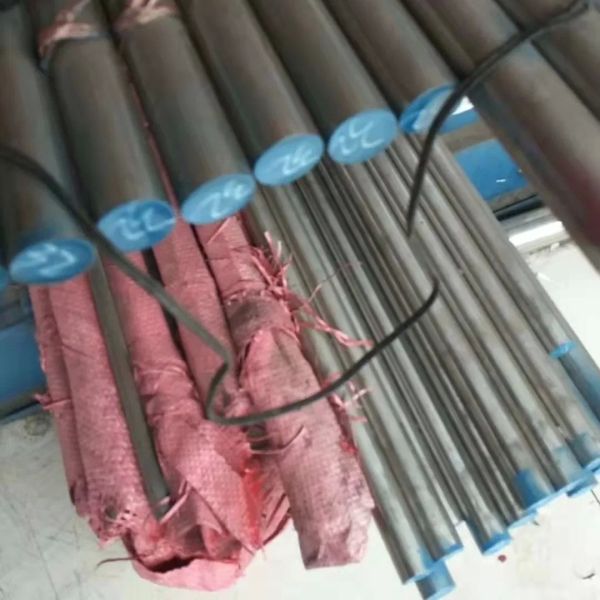

Product Images
Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening Hot Rolled Bright Surface 17-4PH Stainless Steel Round Bar UNS S17400 OD 6-300mm Precipitation Hardening
