Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Specifications
Certification :
ISO, AISI, ASTM, EN, DIN, JIS
MOQ :
50
Price :
3.38
Model NO. :
17-4PH/630
Shape :
Round
Technique :
Hot Rolled
Surface Treatment :
Bright
Specification :
OD 6-300mm
Diameter :
8 - 450mm
Length :
6m /pcs or cutting as request
Main Grade :
201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507
Tensile Strength :
1105-1310 MPa
Yield Strength :
1000-1170 MPa
Elongation :
10-16% in 50mm
Hardness :
28-44 HRC
Thermal Conductivity :
18.4-22.7 W/m.K
Specific Heat :
460 J/kg.K
Elec Resistivity :
800 nΩ.m
Description
Custom Cutting 17-4PH Stainless Steel Bar 8-300mm Stainless Steel Rod
Precision-cut 17-4PH stainless steel bars and rods available in diameters from 8mm to 450mm, with custom cutting services to meet your specific requirements.
Product Specifications
Product17-4PH Stainless Steel Round Bar
StandardASTM GB DIN EN
Diameter8 - 450mm
Length6m /pcs or cutting as requested
FinishingBlack Bar / Bright Bar
Main Grades201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b/c, 904L, 2205, 2507, Hastelloy C276, C4, C22, Inconel 600, 625, Incoloy 800, 825, 825H, etc.
ServiceCutting, surface polishing, heat treatment
BrandWalsin, BAOSTEEL, TISCO, QINGSHAN
17-4PH Stainless Steel Material Description
17-4 Precipitation Hardening (Type 630) is a chromium-copper precipitation hardening stainless steel used for applications requiring high strength and moderate corrosion resistance. High strength is maintained to approximately 600°F (316°C).
General Properties
Alloy 17-4 PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. The grade combines high strength, hardness (up to 572°F / 300°C), and corrosion resistance. Mechanical properties can be optimized with heat treatment, achieving very high yield strength up to 1100-1300 MPa (160-190 ksi).
This grade should not be used at temperatures above 572°F (300°C) or at very low temperatures. It has adequate resistance to atmospheric corrosion or in diluted acids or salts where its corrosion resistance is equivalent to Alloy 304 or 430.
Applications & Standards
Applications Standards
  • Offshore (foils, helicopter deck platforms, etc.)
  • Food industry
  • Pulp and paper industry
  • Aerospace (turbine blades, etc.)
  • Mechanical components
  • Nuclear waste casks
  • ASTM A693 grade 630 (AMS 5604B) UNS S17400
  • EURONORM 1.4542 X5CrNiCuNb 16-4
  • AFNOR Z5 CNU 17-4PH
  • DIN 1.4542
Chemical Composition
Composition of 17-4PH Stainless Steel
GradeCMnSiPSCrNiCuNb+Ta
630min. max: - 0.07- 1- 1- 0.04- 0.03015 17.53 53 50.15 0.45
Mechanical Properties
ConditionTensile Strength (MPa)Yield Strength 0.2% Proof (MPa)Elongation (% in 50mm)Hardness Rockwell C (HR C)Hardness Brinell (HB)
Solution Treated1105 typ1000 typ15 typ38 max363 max
Condition 9001310 min1170 min10 min40 min388 min
Condition 1150930 min724 min16 min28 min277 min
Physical Properties
Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Elec Resistivity (nΩ.m)
0-100°C: 10.8
0-315°C: 11.6
0-538°C: -		 At 100°C: 18.4
At 500°C: 22.7		 460 800

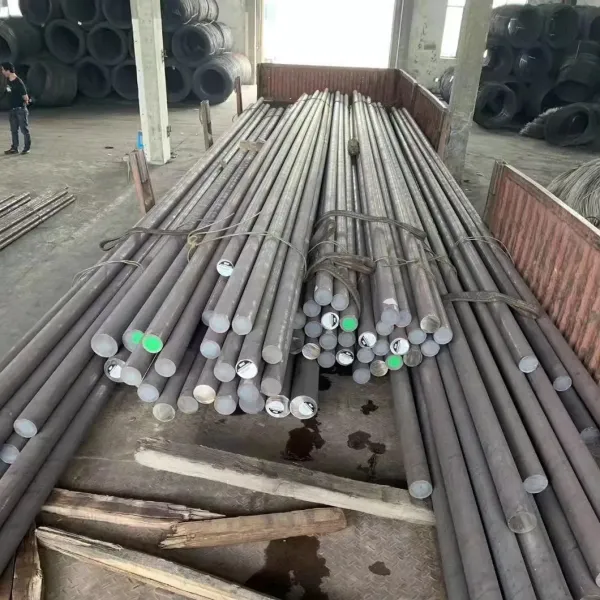

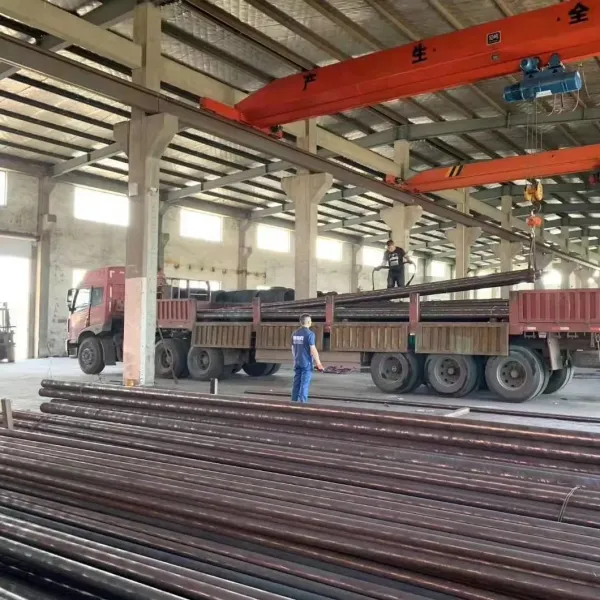

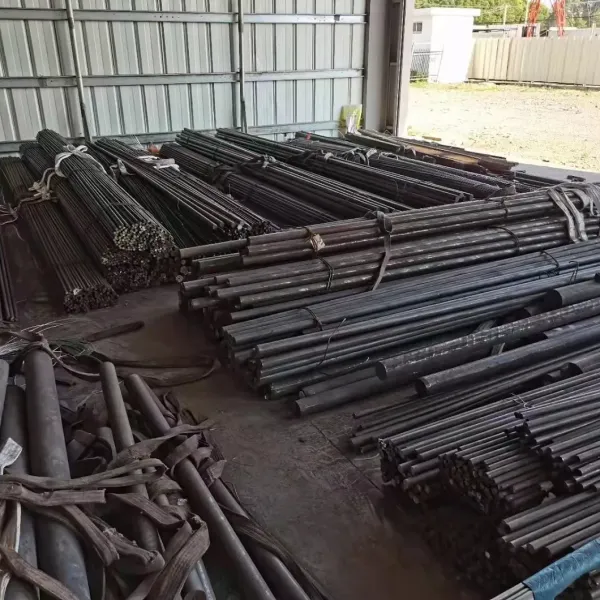

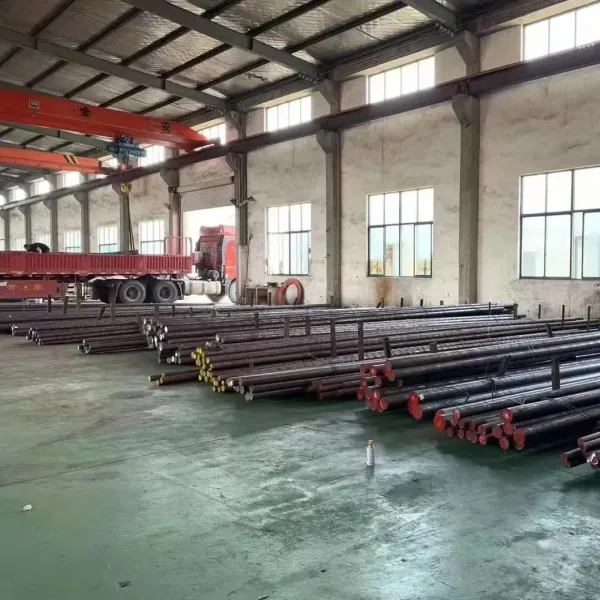

Product Images
Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface Custom Cutting 17-4PH Stainless Steel Round Bar Hot Rolled with Bright Surface
Applications
  • Engine components
  • High strength and boat propeller shafts
  • Plastic moulding dies
  • Valves and gears
