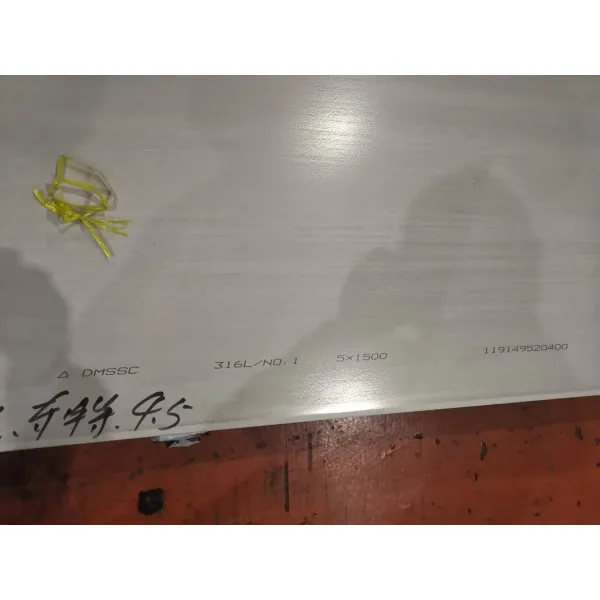

ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
ASTM A240 316L Stainless Steel Plate with Polished Surface and 2000mm Width for Corrosion Resistance
Specifications
Certification :
AISI
MOQ :
50
Price :
2.35
Model NO. :
S31603 316L
Shape :
Round
Technique :
Hot Rolled
Surface Treatment :
Polished
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity :
50000kgs
Carbon Content :
0.030 max
Chromium Content :
16.0-18.0
Nickel Content :
10.0-14.0
Molybdenum Content :
2.00-3.00
Yield Strength :
25 ksi
Tensile Strength :
70 ksi
Elongation :
40%
Hardness :
95 Rb
Width :
2000mm
Description
ASTM A240 1D Surface Inox S31603 316L Stainless Steel Plate
SS 316L PLATE ASTM A240 316L Stainless Steel Plate NO.1 Finished 2000mm Width
In ASTM A240, type 316 and 316L is a chromium nickel austenitic steel. The addition of molybdenum enhances corrosion resistance, making 316/316L more corrosion resistant than 304/304L. While 316L has lower carbon content, its strength is only slightly higher than 316 steel. Grade 316L is often comparable to 316 grade and is particularly suitable for weld treatment due to its lower carbon content.
316/316L steel offers outstanding corrosion resistant properties in both atmospheric and oxidizing environments, including marine atmospheres. It maintains excellent corrosion resistance in welded states. Typically non-magnetic in annealed condition, cold drawing or cold rolling processes may introduce slight magnetism, which can be addressed through further processing.
Applications of ASTM A240 316/316L
  • Manufacturing products exposed to salt water and acids
  • Applications involving sulfuric acid and chloride exposure
  • Petrochemical and chemical processing equipment
  • High-heat applications including engines and motors
  • Tanks, supports, frames, enclosures, and housings
  • Engine, motor and machinery components and parts
Chemical Composition of 316/316L Steel Plate
Element 316 316L
Carbon0.080.030 max
Chromium16.0-18.016.0-18.0
Nickel10.0-14.010.0-14.0
Molybdenum2.00-3.002.00-3.00
Manganese2.002.00
Silicon0.750.75
Nitrogen0.100.10
Phosphorus0.0450.045
Sulfur0.0300.030
Mechanical Properties of 316/316L Steel Plate
Mechanical Property 316 316L
Yield Strength, min. (ksi)3025
Tensile Strength, min. (ksi)7570
Elongation, min. (%)4040
Hardness, max. (Rb)9595
Stainless Steel Standards of 316/316L Steel
316 316L
ASTM A240ASTM A240
ASTM A666ASTM A666
ASME SA240ASME SA240
AMS 5524AMS 5507
