C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
Specifications
MOQ :
500
Price :
8.4
Model Number :
C10200
Shape :
Plate
Alloy Type :
Non-alloy
Size Range :
10*3-200*40mm
Copper Grade :
TU2
Round Bar Size :
6mm - 200mm
Square Bar Size :
4x4mm - 200x200mm
Hex Bar Size :
8x8mm - 100x100mm
Flat Bar Size :
20x2mm - 200x20mm
Length :
2m,3m,5.8m,6m
Processing Method :
Extrusion/cold drawn
Temper :
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface Finish :
Mill, polished, bright, oiled, hair line, brush, mirror, sand blast
Conductivity :
100% IACS
Copper Purity :
99.95%
Description
TU2 Copper Flat Bar C10200 Oxygen-Free Copper Round Bar
Product Specifications
Product Name Copper Flat Bar
Copper & Copper Alloy Grades C11000, C10100, C12200, H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200, C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561, CuZn30, CuZn32, CuZn35, CuZn37, CuZn40, TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1, QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1, etc.
Available Sizes Round Bar: 6mm - 200mm
Square Bar: 4x4mm - 200x200mm
Hex Bar: 8x8mm - 100x100mm
Flat Bar: 20x2mm - 200x20mm
Standard Lengths 2m, 3m, 5.8m, 6m, or custom lengths as required
Processing Methods Extrusion / Cold Drawn
Temper Options 1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface Finishes Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or custom finishes as required
Material Description
Oxygen-Free Copper C10200
Oxygen Free Copper C10200 is an ideal material for applications requiring extremely high electrical conductivity and resistance to hydrogen embrittlement. This material provides excellent performance for glass-to-metal seals, developing an adherent, non-scaling oxide at elevated temperatures. It offers corrosion resistance in normal atmospheric and water environments and achieves a minimum 100% IACS conductivity rating.
Oxygen Free Copper C10200 features high ductility and impact strength, excellent thermal conductivity, good creep resistance, low volatility in high vacuum conditions, and can be readily soldered and brazed.
Grade Specifications
Copper has extensive applications across energy and petrochemical industries, transportation, electronics, electric power, machinery, metallurgy, and other critical fields. Our company specializes in producing various copper products with competitive pricing and large inventory availability.
China Germany Europe International US Japan
GB DIN EN ISO UNS JIS
TU2 OF-Cu 2.004 Cu-OFE C10200 C1020
T2 Se-Cu 2.0065 Cu-ETP C11000 C1100
TP2 SF-Cu 2.0090 Cu-DHP C12000 C1220
Product Applications
  • Electrical & Electronic Conductors
  • Superconductor Matrixes
  • Lead-in Wires & Anodes for Vacuum Tubes
  • Vacuum Seals & Glass-to-Metal Seals
  • Power Substations
  • Coaxial Cables
  • Microwave Tubes & Rectifiers
  • Plasma Applications
Typical Chemical Composition
Minimum 99.95% Copper

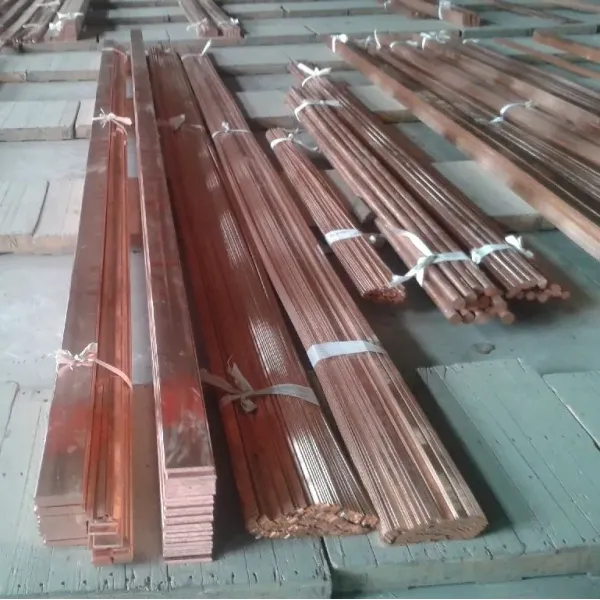

Product Gallery
C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options C10200 ASTM Standard Oxygen-Free Copper Flat Bar with High Electrical Conductivity and Round Bar Options
