Specifications
Certification :
AISI
MOQ :
50
Price :
4.35
Material Grade :
317L
Shape :
Round
Technique :
Hot Rolled
Surface Treatment :
Polished
Thickness Range :
3.0-120mm
Thickness Tolerance :
±0.02mm
Width Range :
500-2000mm
Width Tolerance :
±6.00mm
Standard Sizes :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Yield Strength :
>=176 Mpa
Tensile Strength :
>=480 Mpa
Elongation :
>=40%
Hardness :
<=200 HV
Density :
7.93 g/cm3
Magnetic Property :
Magnetic
Description
ASTM A240 AISI 317L Standard Hot Rolled 3mm 317L Stainless Steel Plate
Product Overview
Grade: 317L Stainless Steel Plate
Size: 1500 x 3000mm, 1500 x 6000mm
Thickness: 3.0mm - 120mm
Brand: TISCO, BAOSTEEL, AUTO KUMPO
Product Specifications
Material Ferritic stainless steel, magnetic
Standard AISI, ASTM, EN, GB, DIN, JIS
Technology Cold Rolled or Hot Rolled
Thickness 0.2-120mm (tolerances ±0.02mm)
Width 500-2000mm (tolerances ±6.00mm)
Surface Original: NO.1, Treatment: NO.4 mirror
Certificate SGS, BV
Features and Applications
317L (00Cr19Ni13Mo3, UNS S31726) alloy is a molybdenum-based austenitic stainless steel. Compared to conventional chromium-nickel austenitic stainless steel such as 304 alloy, it offers superior chemical corrosion resistance. The 317L alloy provides higher ductility, stress corrosion resistance, compressive strength, and high-temperature performance compared to conventional stainless steels. As a low-carbon grade, it resists sensitization effects during welding and heat treatment processes.
Applications
Compared to 316L, 317L steel offers excellent water resistance and stress corrosion cracking (SCC) resistance, making it suitable for chemical ships, chemical products, and chemical equipment requiring high corrosion resistance such as reactors.
Mechanical Properties
Yield Strength (YS) Tensile Strength (TS) Elongation (EL) Hardness (HV)
≥176 Mpa ≥480 Mpa ≥40% ≤200
Chemical Composition
Element Content (%)
C ≤0.030
Mn ≤2.00
Si ≤1.00
P ≤0.045
S ≤0.030
Cr 18.0 - 20.0
Ni 11.0 - 15.0
Mo 3.0 - 4.0
Density 7.93 g/cm³
Company Advantages
  • High quality products at competitive prices
  • 15,000 ton stainless steel product inventory
  • Fast delivery service
  • Over 12 years of export experience
  • Strategic location near Shanghai Port for excellent logistics
  • Comprehensive customer service

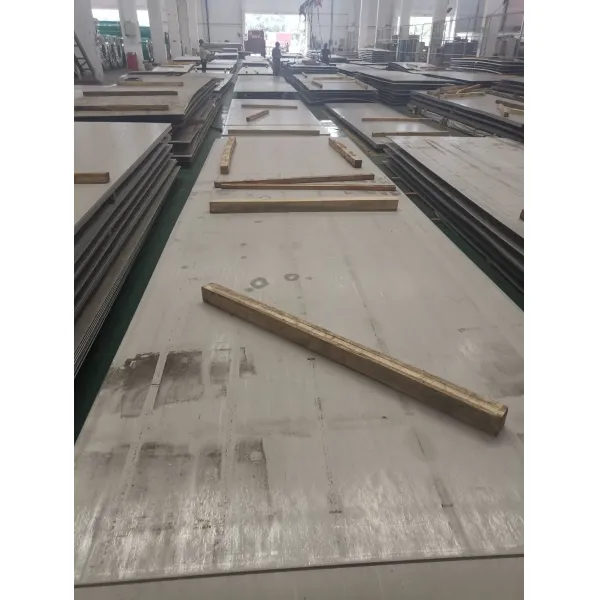

Product Images
ASTM A240 AISI 317L 3mm Thickness Corrosion Resistant Hot Rolled Stainless Steel Plate with High Temperature Performance ASTM A240 AISI 317L 3mm Thickness Corrosion Resistant Hot Rolled Stainless Steel Plate with High Temperature Performance ASTM A240 AISI 317L 3mm Thickness Corrosion Resistant Hot Rolled Stainless Steel Plate with High Temperature Performance ASTM A240 AISI 317L 3mm Thickness Corrosion Resistant Hot Rolled Stainless Steel Plate with High Temperature Performance
Custom sizes and thicknesses available. Contact us for additional information and pricing.
