Specifications
Price :
4.55-5.86 USD/KG
Yield Strength :
205 MPa min
MOQ :
30KGS
Surface Treatment :
Pickling
Payment Terms :
L/C, T/T
Shape :
Round
Model Number :
316Ti
Manganese Content :
2.00% max
Molybdenum Content :
2.00-3.00%
Outer Diameter :
OD 6-630mm
Chromium Content :
16.00-18.00%
Supply Ability :
50000KGS
Silicon Content :
0.75% max
Titanium Content :
5×(C+N)-0.70%
Elongation :
35% min
Packaging Details :
Export Packing
Carbon Content :
0.08% max
Tensile Strength :
515 MPa min
Delivery Time :
7 Days
Technique :
Cold Rolled
Place of Origin :
China
Certification :
AISI, ASTM, EN, DIN
Model NO. :
316ti
Brand Name :
TSING SHAN
Nickel Content :
10.00-14.00%
Description

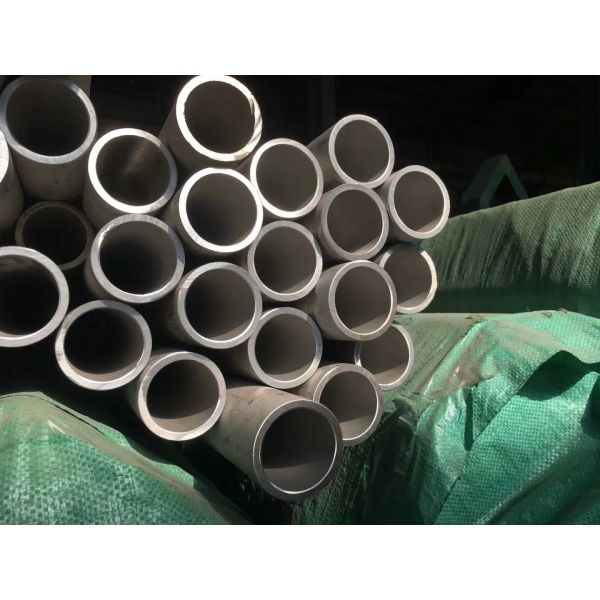

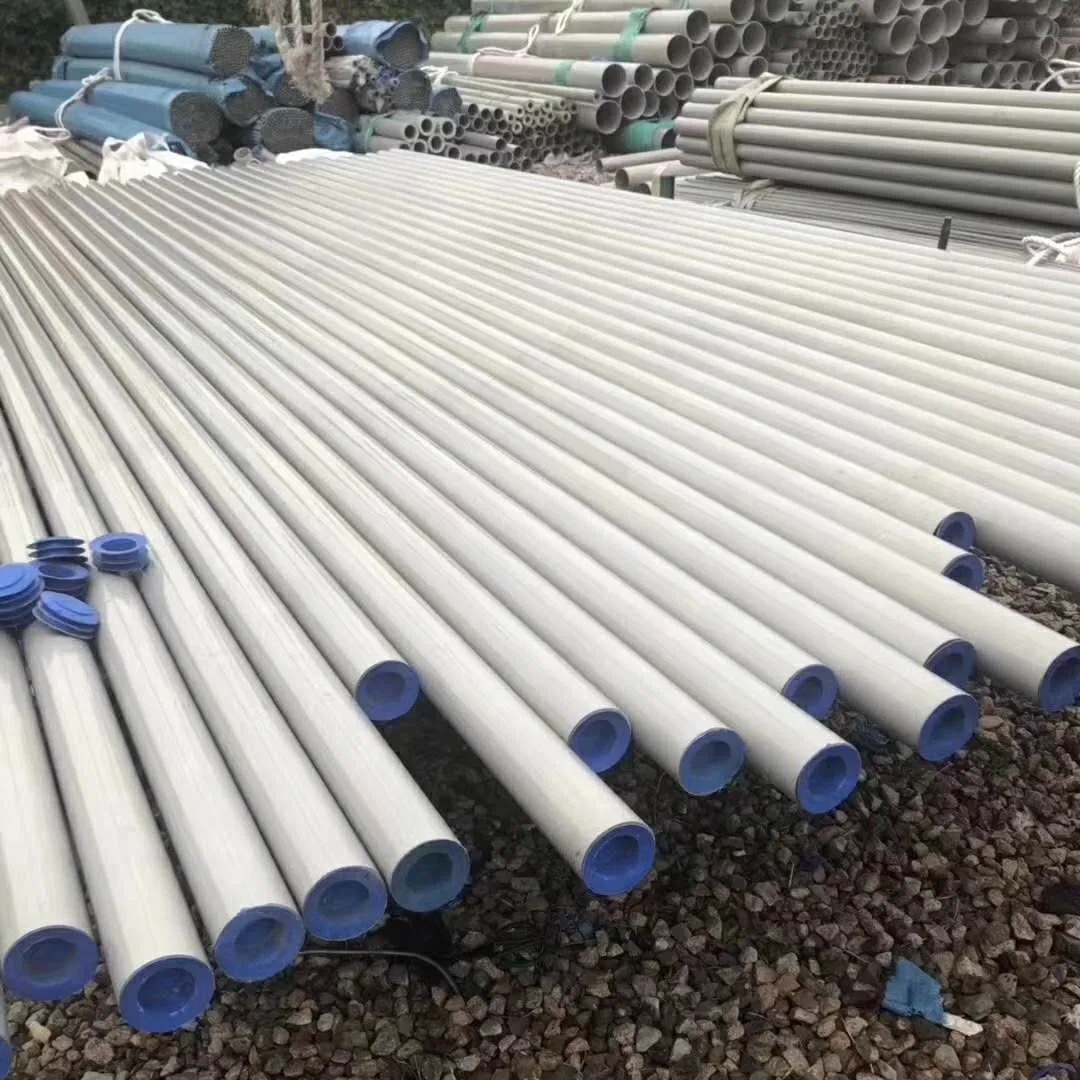

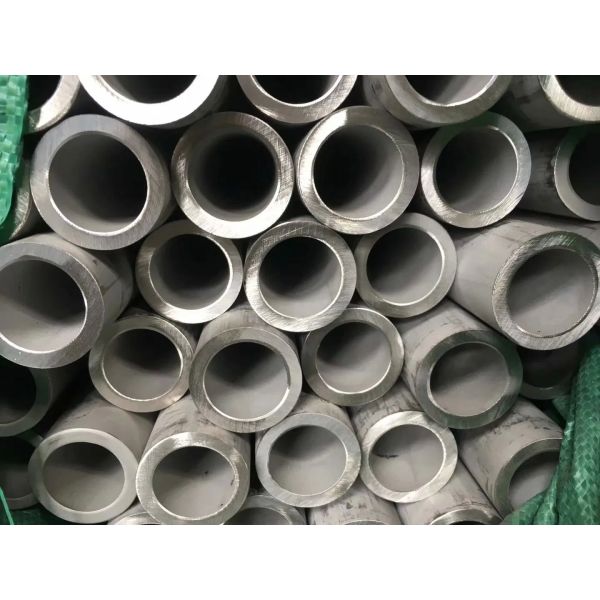

ASTM A312 316Ti Stainless Steel Seamless Pipe
316Ti/1.4571 ASTM A312 Seamless Heat Exchanger Stainless Steel Tubes

ASME SA213 / ASTM A213 316Ti UNS S31603, EN 10216-5 1.4571 Stainless Steel. Similar to Grade 316L but with enhanced high-temperature strength and mechanical properties. Ideal for equipment exposed to aggressive corrosive conditions and high-temperature applications including automotive flexible connectors, welded bellows, chimney liners, and flexible ducting.

Chemical Composition
Grade / Standard C Si Mn P S Cr Ni Mo Ti Fe
TP316Ti 0.08 max 0.75 max 2.00 max 0.045 max 0.030 max 16.00-18.00 10.00-14.00 2.00-3.00 5×(C+N)-0.70 Rem
EN 10216-5 1.4571 / X6CrNiMoTi17-12-2 0.08 max 1.00 max 2.00 max 0.040 max 0.015 max 16.50-18.50 10.50-13.50 2.00-2.50 5×C-0.70 Rem
AISI 316Ti 0.08 max 0.75 max 2.00 max 0.045 max 0.030 max 16.00-18.00 10.00-14.00 2.00-3.00 5×(C+N)-0.70 Rem
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness Rockwell B (HR B) max Hardness Brinell (HB) max
316H 515 205 35% 75 205
Manufacturing Facility
ASTM A312 SUS316Ti  1.4571 Stainless Steel Seamless Pipe for Heat Exchanger
ASTM A312 SUS316Ti  1.4571 Stainless Steel Seamless Pipe for Heat Exchanger
FAQ
Q1: What factors affect the price?
A: What factors affect the price? It is affected by material, specifications, market supply and demand, and raw material prices. Different materials have different prices. Large - diameter and thick - walled pipes have higher costs. Fluctuations in the supply - demand relationship and the prices of raw materials such as nickel and chromium also affect the price.

Q2: How to detect the quality of stainless steel seamless pipes?
A: The quality of stainless steel seamless pipes can be inspected as follows:
Appearance Check:Examine the surface for cracks, scratches and other defects.
Dimension Measurement:Measure the diameter, wall thickness, etc. to ensure they meet the standards.
Nondestructive Testing:Adopt nondestructive testing methods like ultrasonic flaw detection and eddy current flaw detection to check for internal defects.

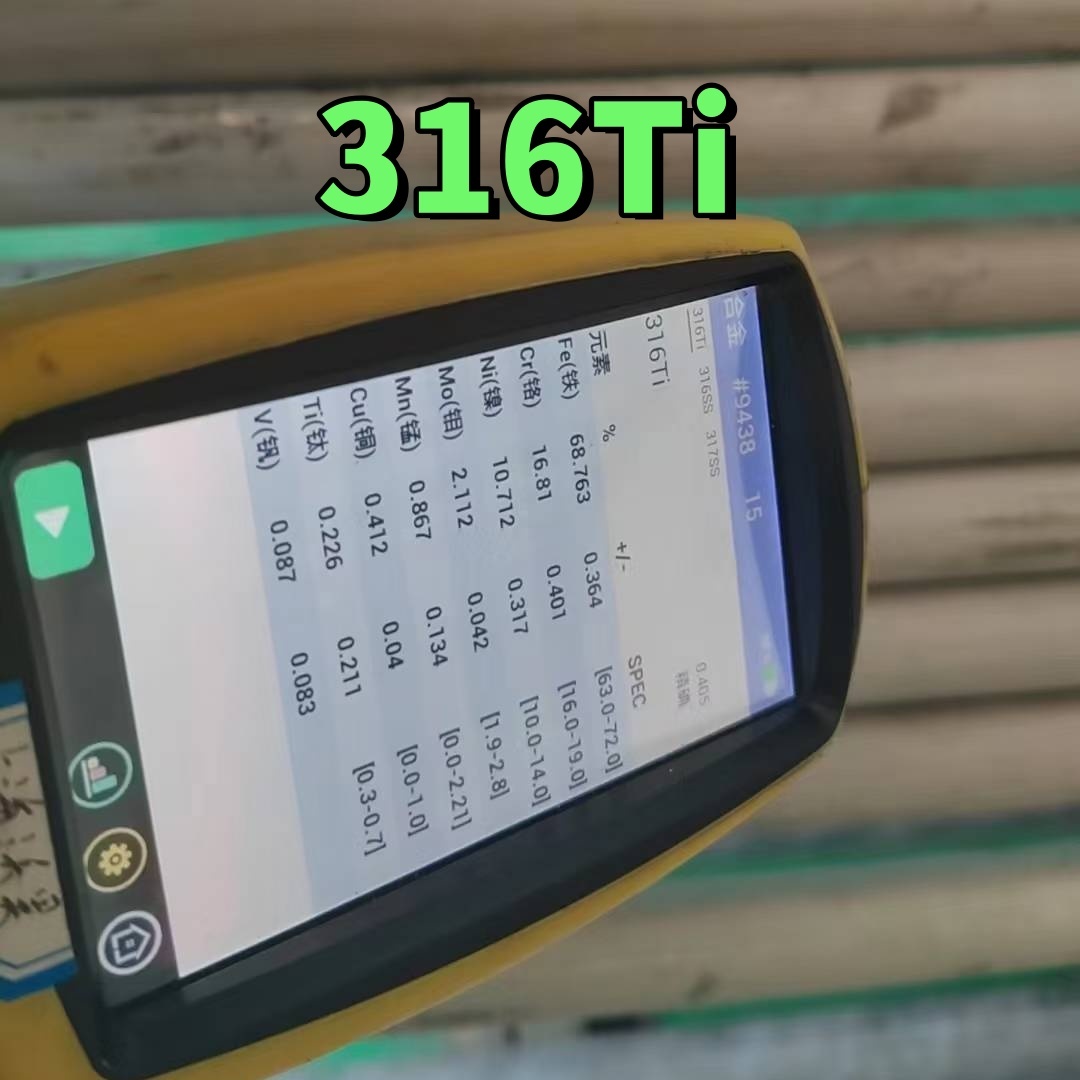

Chemical Composition Analysis:Analyze the chemical composition to verify if the material meets the requirements.
Mechanical Properties Testing:Conduct mechanical properties testing to check if the material quality is up to standard.

Q3: Do you offer customized products?
A: Yes, we can customize seamless stainless steel tubes according to specific customer requirements, including different sizes, materials, and surface.

Q4: Which standards do your products comply with?
A: Our products comply with national standards (GB), international standards (ISO), and industry standards. Some products can also be customized to meet specific customer requirements.

Q5: Do you offer customized products?
A: Yes, we can customize seamless stainless steel tubes according to specific customer requirements, including different sizes, materials, and surface treatments.

Q6: What is the typical delivery time for your products?
A: The delivery time depends on the order quantity and product specifications. Generally, we can deliver within 2 to 4 weeks. The exact delivery time will be confirmed and notified to the customer after the order is placed.
