Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Specifications
Certification :
AISI, ASTM
MOQ :
50
Price :
12.55
Material :
Inconel 600
Producing Method :
Cold Drawing
Outer Diameter :
10-90mm
Wall Thickness :
1-10mm
Shape :
Round
Technique :
Cold Rolled
Surface Treatment :
Polished
Standard :
ASTM B517 / ASME SB 517
Seamless Pipes :
4 to 219mm
Welded Pipes :
5.0 mm - 1219.2 mm
Schedule :
SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type :
Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form :
Round, Hydraulic
Length :
Single Random, Double Random & Cut Length
End Type :
Plain End, Beveled End, Treade
Description
Inconel 600 Seamless Pipe Specifications
Material & Production
Material: Inconel 600
Producing Method: Cold Drawing
Dimensions
OD: 10-90mm
WT: 1-10mm
Applications
Boiler, Heat Exchanger, Superheater, CID Cooling
Nickel Alloy Pipe Standards & Specifications
Specifications ASTM B517 / ASME SB 517
Dimensions ASTM, ASME and API
Seamless 825 Pipes 4 to 219mm W.T.: 0.5 to 20mm
Welded 825 Pipes 5.0 mm - 1219.2 mm
EFW 825 Pipes 5.0 mm - 1219.2 mm
Size 15″NB TO 150″NB IN
Schedule SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Hydraulic Etc
Length Single Random, Double Random & Cut Length
End Plain End, Beveled End, Threaded
Material Properties & Characteristics
Nickel alloys feature copper, chromium, and molybdenum as main alloy elements, providing excellent comprehensive performance with resistance to various acid corrosion and stress corrosion. The first application was nickel-copper alloy (Monel alloy), with additional variants including nickel-chromium, nickel-molybdenum, and nickel-chromium-molybdenum alloys for manufacturing corrosion-resistant components.
Industrial Applications
  • Equipment and components for sour-gas service
  • Reactors for acetic acid production
  • Sulphuric acid coolers
  • Methylene diphenyl isocyanate (MDI)
  • Manufacture and processing of technically impure phosphoric acid
  • Combustion-resistant alloy for high pressure oxygen applications
Product Range & Standards
Item seamless pipe
STANDARD ASTM, AISI, ASME, JIS, DIN, EN, GB, BS, SUS
MATERIAL inconel 600, inconel 625, inconel 718, nitronic 50, nitronic 60, nimonic 75, nimonic 90, hastelloy C276, hastelloy X, incoloy 800, incoloy 825, etc
OD 1mm-150mm(1/8" -120" )(INCH)
WT 6mm-2500mm(Sch5S-SchXXS)
LENGTH 5.8m, 6m, 12m or as required; 20feets, 40feets; random length or as customer request
TYPE Seamless & Welded
2205 Duplex Stainless Steel Characteristics
Alloy 2205 (UNS S32305/S31803) is a duplex stainless steel composed of 22% chromium, 3% molybdenum and 5-6% nickel-nitrogen alloy. It features high strength, excellent impact toughness, and superior overall and local stress corrosion resistance.
Chemical Composition
Element Content (%)
Ni 4.50~6.50
Cr 21.0-24.00
Si ≤1.00
Mn ≤2.00
C ≤0.03
S ≤0.03
P ≤0.04
Mo 2.5-3.5
N 0.08-0.2
Key Features
Superior to 316L and 317L austenitic stainless steel in pitting and crevice corrosion resistance. Features lower thermal expansion coefficient and higher thermal conductivity. Yield strength is twice that of austenitic stainless steel, enabling weight reduction and cost savings. Optimal performance in -50°F to +600°F temperature range.
Applications
Chemical processing, desalination, material handling, oil and gas mining, pulp and paper, petrochemicals. Products include cargo tanks, couplings, heat exchangers, pipes, pipe fittings, pressure vessels, valve parts, and more.

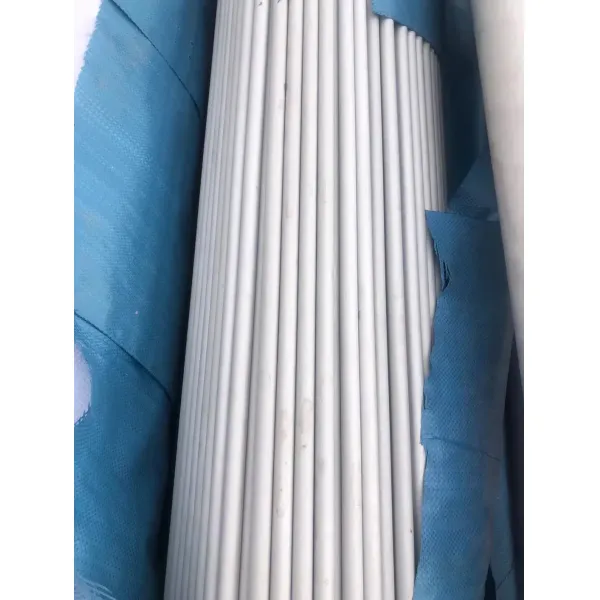

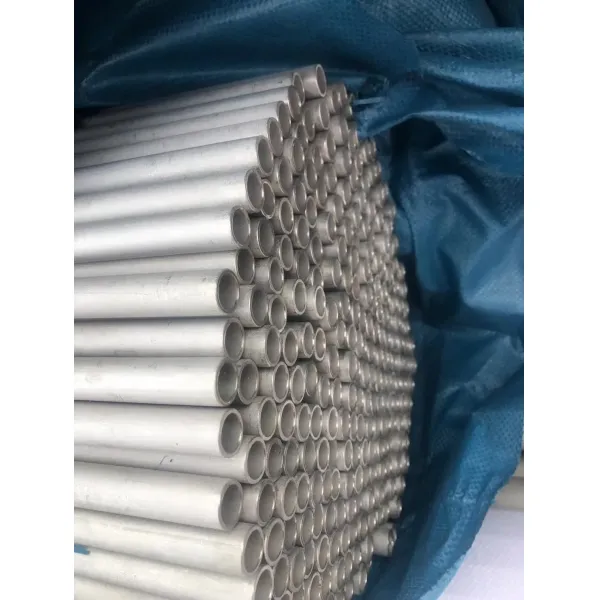

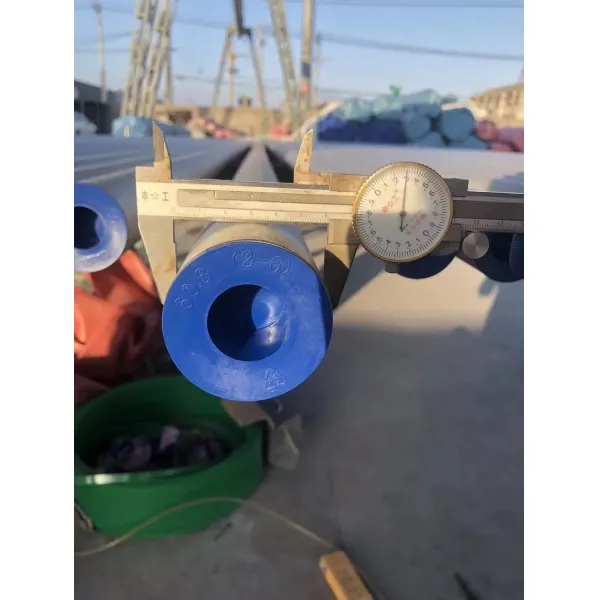

Product Images
Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance Cold Rolled Inconel 600 Seamless Pipe with Polished Surface and Corrosion Resistance
Packaging & Delivery
Packaging: Woven bag or wooden case
Delivery Time: 7-15 days, subject to quantity
