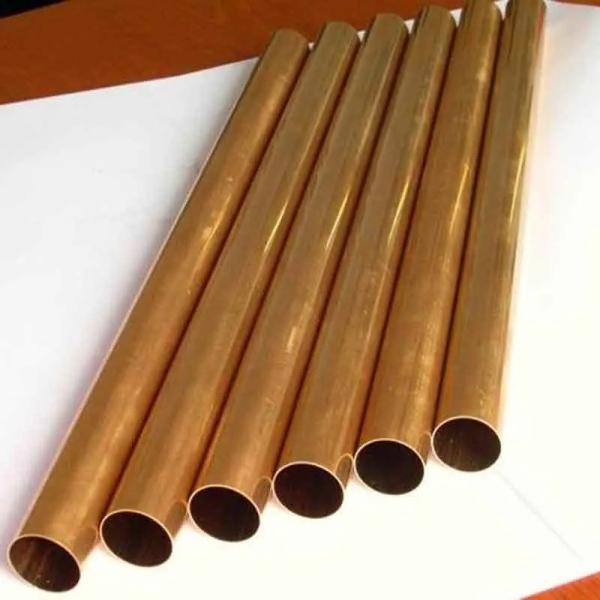

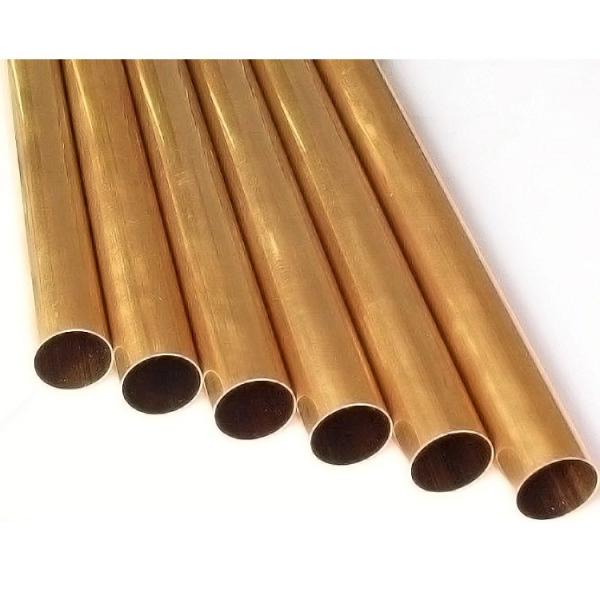

Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Specifications
Brand Name :
JBHD
Model Number :
H62/65/68
Certification :
CE、ISO、SGS
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Ton
Delivery Time :
7-15 working days
Packaging Details :
Standard seaworthy package
Product Name :
Copper Pipe
Purity :
99.90%~99.99%
Base Material :
H62/65/68
Diameter :
3mm~600mm
Hardness :
1/2 Hard, 1/4 Hard, Full Hard, etc.
Surface Treatment :
Mill, Polish, Bright, Hair Line
Standard :
ASTM
Alloy or Not :
Is Alloy
Description

Brass Staight Tube Copper Tube Pipe Seamless H62/65/68

Description

Standard GB/T 1527-2006,JIS H3300-2006,ASTM B75M-02,ASTM B42-02
ASTM

C10100,C11000,C12200,C21000,C22000,C23000,C24000,C26000,C27000,

C26800,C27200,C27400,C28000,C36500,C33000,C35300,C35600,C36000,

C38500,C44300,C46400,C52100,C54400,C62300,C65500,C67500,C67600,

C86300,C90700,C93200,C95400 etc.
EN

CuZn5,CuZn10,CuZn15,CuZn20,CuZn30,CuZn35,CuZn33,CuZn36,CuZn37,

CuZn40,CuZn40Pb,CuZn37Pb2,CuZn36Pb3,CuZn39Pb3,CuZn28Sn1,

CuZn38Sn1,CuSn8,CuSn4Pb4Zn3,CuSi3Mn,CuZn25Al5,CuSn10
GB

TU0, TU1,T2,TP2,H96,H90,H85,H80,H70,H65,H63,H62,H59,HPb63-3,HPb66-0.5,HPb62-2,HPb62-3,HPb59-3,HSn70-1,HSn62-1
Size Ourside diameter 2 to 800mm ,wall thickness 0.1mm to 60mm Length 1meter to 6meter or according to client's request
Hardness 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard.
Surface Polished,bright,oiled,hair line,brush,mirror,or as required
Export to Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru
Package Plastic film with Wooden case or wooden pallet
Delivery time Prompt delivery or upon your order quantity.
MOQ Negotiable
Quality Control Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Application widely used inair conditioners,refrigerators,electric,solar water heater, polished pipe an be used in decorative,such as stair rail.Also can be made according to your required.
copper Alloy Chemical Composition Temper Mechanical Property
Copper
%		 Phosphorus
%		 Tensile Strength
MPa		 Elongation
%		 Hardness
HV
Cu-DHP ≥ 99.90 0.015-0.040 R220 ≥ 220 ≥ 40 40-70
Cu-DHP ≥ 99.90 0.015-0.040 R250 ≥ 250 ≥ 30 75-100
Cu-DHP ≥ 99.90 0.015-0.040 R290 ≥ 290 ≥ 3 ≥ 100

Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube

Copper Alloy Temper Cleanness Standard
Cu-DHP R220 ≤ 38mg/m² EN 12735-1
Cu-DHP R2250 ≤ 38mg/m² EN 12735-1
Cu-DHP R290 ≤ 38mg/m² EN 12735-1

Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube

Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube

Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube

Feature

1)Light weight, good thermal conductivity, high strength at low temperature.

It is often used in the manufacture of heat exchange equipment (such as condenser, etc.). It is also used in the assembly of cryogenic pipelines in oxygen production equipment. Small diameter copper pipe is often used for conveying pressurized liquid (such as lubrication system, oil pressure system, etc.) and as a gauge tube.

2)Copper pipe has strong, corrosion-resistant characteristics.

So cooper tube become the modern contractor in all residential commercial housing plumbing, heating and cooling pipeline installation first choice.

3)Copper pipe has high strength, easy to bend, easy to twist, not easy crack, not easy to break.

So copper tube has a certain anti-frost bilge and anti-impact ability, so the copper water pipe in the water supply system in the building once installed, use up safe and reliable, even without maintenance and maintenance.

Company Introduction

Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube

Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
Shipping and Packing
Seamless Copper Pipe Brass Straight H65 H68 H62 Brass Tube
FAQ
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 15 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q4: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings.
Q5: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
