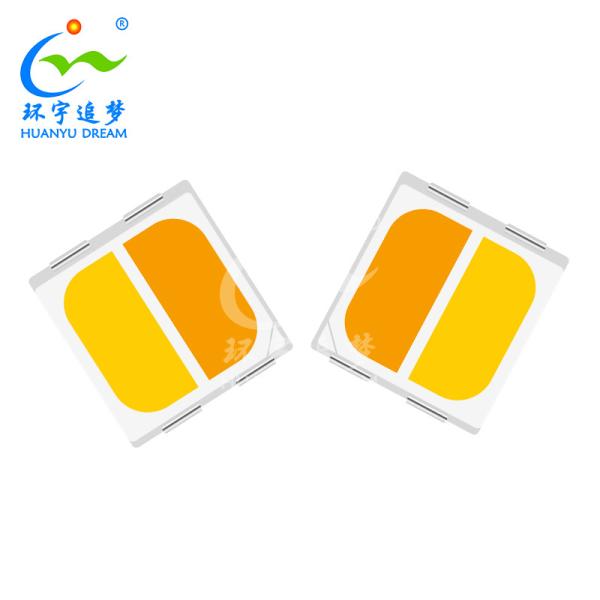

3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe
3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe
3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe
3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe
3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe
3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-3030D2765-2S
Certification :
Rohs
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Paypal,Ali Pay
Supply Ability :
500000pcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
5000pcs/Reel
LED Type :
3030 Bi-Color SMD LED Chip
Color(CCT) :
2600K+7000K
Voltage :
3.0-3.2V
Power :
0.5W*2
Lumen :
50-55LM/60-65LM
CRI :
95
SUBSTRATE :
PCT Copper
Customized :
Availabe
Description

3030 Dual Colors 2700K/6500K SMD LED Chip Lumens Output 70-85LM 1W

1W SMD 3030 Bicolor Led Chip

HuanYu Dream 3030 Bicolors 1W with high Brightness, Available two phosphor converted colors moxed in Warm White, Cold White, Red, Blue, Green... Widely used in torch lighting, indoor lighting, signal and symbol luminariesfor orientation maker lights, commercial lighting, decorative lighting and so on

Product Features

  • Power: 1W(3V*150mA*2) tunable color
  • White colors are available in (2700K-25000K), Color mixing with high CRI
  • Compact structure, smaller size can achieve higher power

  • Low thermal resistance,

  • Super Long life>50000hrs

  • Bright Colors and true appearance to provide all feasible solutions including customization demand for photography and studio lighting

Product Specifications:

Models HY-3030D2765-2S
Electronic power 0.5W*2
Color temperature 2600K+7000K(1900K-25000K are available)
CRI 95
VF 3.0-3.2V
IF 150mA*2
Lumen 50-55LM/60-65LM
WHOLE SIZE 3.0*3.0mm
CHIP Sanan/Epistar (any kinds available)
VIEW ANGLE 120°
Warranty 3 years
Leading time 7-10days

Product Dimmensions(Tolerance:+/-0.1, Unit:mm)

3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe

Absolute Maximum Ratings at Ta=25℃

3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe

Application

  • Photography Lighting & Studio Lighting
  • Indoor lighting: Fluorescent lamp, tube
  • Commercial illumination anddisplays: Advertising words, light box
  • Light strip
  • LCD Back lightingOther illumination and displays

3030 Dual Color SMD LED Chip 2600k 7000K 50-60LM 1W Custom Availabe

FAQ

Q: Will free samples be provided?
A: Certainly! We do offer free samples initially for quality testing purposes.

Q: Are you a manufacturer or a trading company?
A: We are a highly experienced and professional LED manufacturer with a history dating back to 2013.

Q: What payment methods are acceptable?
A: We can accept T/T, Paypal, Western Union, and other methods according to clients' specific requirements.

Q: Regarding the lead time, what can be expected?
A: It varies depending on the order quantity. Generally speaking, the lead time is around 5 to 7 working days. For samples, it's possible to have same-day delivery in some cases.

Q: How can I obtain a quotation from you?
A: Kindly send us messages detailing your requirements, such as the specific products and the quantity you need. Our professional team will get back to you promptly, usually within a few hours.

Q: What kind of technical support is available after making a purchase?
A: We will supply the data sheet and operation manual to you. Our sales engineers will be on standby to answer any of your questions at any time.

Q: In the event of LED failure, how will you provide support?
A: Customers are required to provide pictures of the faulty products or the rejected samples. Our engineers will then analyze the failure to identify the causes. If the failure is due to product quality issues, we will replace them with qualified ones as compensation.
