2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
Specifications
Brand Name :
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip
Model Number :
HY-2835W55B26-1S
Certification :
ce RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
200KKpcs/Month
Delivery Time :
7-9 Work Days
Packaging Details :
4000pcs/Reel
Voltage :
3.0-3.2V
Current :
60mA
Color tolerance :
SDCM<6
Lumen :
26-28Lm
Package :
4000 Pcs/Anti-static vacuum Bag
Warranty :
3 Years
CRI :
80RA
Description
2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip

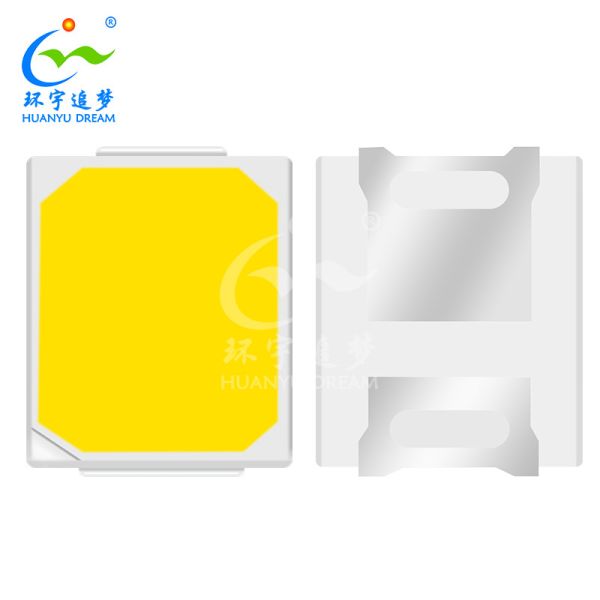

This high-efficiency surface-mount LED chip features a 2835 package measuring 2.8mm x 3.5mm.
Built with premium Algainp material, it delivers stable and reliable performance in a compact form factor.
Operating at a standard drive current of 60mA, it maintains a forward voltage between 3.0V and 3.2V, delivering approximately 0.2W system power per unit.
The chip emits bright natural white light in the 5500-6000K daylight range, producing 26-28 lumens with exceptional luminous efficiency up to 145lm/w.
It achieves a color rendering index (Ra) of 80, ensuring accurate and natural color reproduction for illuminated objects.

With a 120-degree wide beam angle, it provides uniform, glare-free illumination without dark spots, making it ideal for panel lights and LED strip applications.
It supports dimming functionality, allowing flexible light intensity adjustment to meet different lighting needs.
Designed for durability, it boasts a rated lifespan of 50,000 hours, minimizing replacement frequency and maintenance costs.
Backed by a 3-year warranty, it offers reliable after-sales support.

The chip operates stably across a wide temperature range from -40°C to 85°C, suitable for both indoor and outdoor lighting projects.
It is RoHS and CE certified, meeting strict quality and safety standards.
Packaged in anti-static vacuum bags with 4000 pieces per bag, it ensures safe transportation and storage. Manufactured in Guangdong, China, this 2835 SMD LED chip combines high efficiency, compact design, and consistent performance, making it an excellent choice for a variety of lighting applications.

2835 SMD LED Chip 5500-6000K 26-28lm 3.0-3.2V 140-150lm/W Ra80 120° for Panel Light LED Strip

Panel Light & LED Strip Lighting: The core component for flat panel lights and flexible LED strips. Offers uniform 120° beam and 145lm/w efficiency to deliver glare-free even illumination in ceiling panels suspended lights and linear light bars.
Home & Office Lighting: Ideal for recessed downlights ceiling lamps and desk lights. The 5500-6000K daylight tone creates a bright comfortable atmosphere for bedrooms living rooms and office workspaces with 80Ra color rendering for natural light reproduction.
Commercial & Retail Lighting: Widely used in supermarket shelf lights clothing store spotlights and display cabinet lighting. Stable brightness and low power consumption enhance product visibility perfect for boutiques malls and convenience stores.
Decorative & DIY Lighting: Suitable for cabinet backlighting signboard lights and decorative strips. Compact size supports creative projects like under-cabinet lighting feature wall accents and holiday decorative light arrangements.


Interested in our products? Contact us for more detailed information and technical specifications. We're ready to assist with your lighting requirements.
