Specifications
Delivery Time :
7-9 Work Days
Certification :
RoHS
Brand Name :
HuanYu Dream
Supply Ability :
500000pcs/Day
Feature :
Infrared Red
Price :
Negotiable
Power :
single channel 0.2-1 watts
Payment Terms :
T/T,Paypal,Ali Pay
LED Type :
5050 Smd Led
Packaging Details :
5000pcs/Reel
Place of Origin :
China
MOQ :
Negotiable
Voltage :
1.6-2.2V
Warranty :
3 Years
Model Number :
5050-IR 850nm
SUBSTRATE :
PCT
Color(CCT) :
660nm 730nm 810nm 830nm 850nm 940nm
Description
Medical Aesthetic Light Source 5050 SMD Chips
High-power LED chips in 660nm, 730nm, 810nm, 830nm, and 850nm infrared wavelengths for beauty therapy spectrometers and hair growth caps.
5050 SMD 830nm 850nm Color Infrared Red LED Chip Features
  • Power: 0.2-1W (2V*300mA)
  • Low thermal resistance
  • Super long life >50,000 hours
  • Compact structure, smaller size can achieve higher power
  • Large chip area, deep support cup, and wider heat dissipation path for long-term illumination with minimal spectral drift and slow light decay
  • Bright colors and true appearance with customization options for photography and studio lighting
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
Technical Specifications
Parameter Value
Electronic power 1W
Color temperature 850nm (660nm, 730nm, 830nm, 940nm available)
CRI 70
VF 1.6-2.2V
IF 150mA /300mA
Lumen 1-2LM
Whole size 5.0*5.4mm
Chip Sanan/Epistar
View angle 120°
Warranty 3 years
Leading time 7-10 days
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
Absolute Maximum Ratings at Ta=25℃
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch

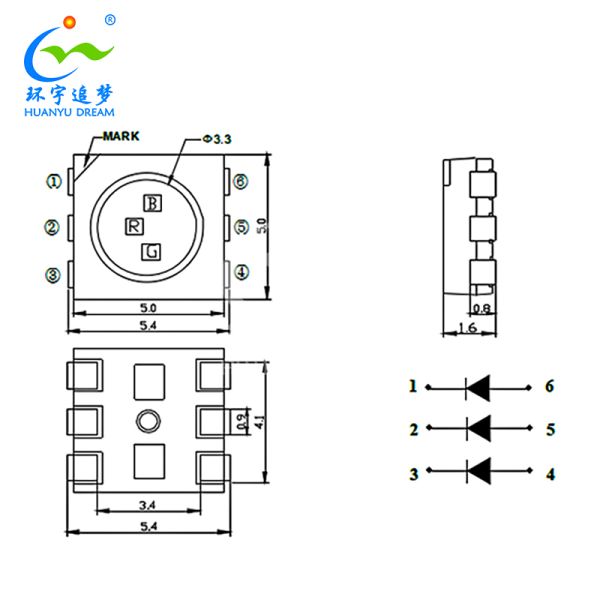

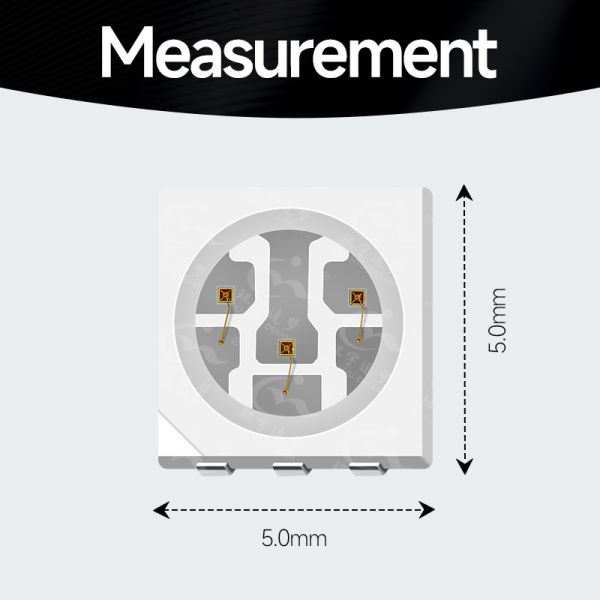

Dimensions (Tolerance: +/-0.1, Unit: mm)
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
Recommended Wavelengths for Aesthetic Phototherapy
Color Main Wavelength (±5 nm) Functions
UV 365nm, 400nm, 430nm Anti-inflammatory & antibacterial effects, skin purification, bruise & pain relief
Blue 460nm Skin rejuvenation and detoxification
Yellow 590nm Lymphatic activation, hyperpigmentation correction, soothing effect
Orange 605nm Collagen synthesis, wrinkle reduction, microcirculation
Red 630nm, 640nm, 660nm Superficial pigmentation, fine line reduction, scar remodeling & joint pain
Infrared Red 810nm, 830nm, 850nm, 880nm, 940nm Tissue temperature regulation, vasodilation, accelerated tissue repair
Applications
  • Photography Lighting & Studio Lighting
  • Indoor lighting: Fluorescent lamp, tube
  • Commercial illumination and displays: Advertising words, light box
  • Light strip
  • LCD Back lighting
  • Other illumination and displays
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
About Us
Medical Aesthetic Light Source 5050 SMD Chips 660nm 730nm 810nm 830nm 850nm Infrared Beauty Therapy Spectrometer Hair Growth Cap High-Power LED Patch
Frequently Asked Questions
Q1. How to proceed an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places order.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity.
Q3. Do you have any MOQ limit for LED light order?
A: MOQ is 100pcs for each model.
Q4. Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q6. How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new replacements.
Q7. Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
