Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP
Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP
Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP
Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP
Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP
Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-2835R620
Certification :
Rohs
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
500000pcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
4000pcs/Reel
Type :
2835 SMD LED Chip
Power :
0.2W
Voltage :
2.0-2.4V
Wavelength :
620-630nm
Current :
60mA
Luminous Flux :
6-9LM
Description

Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP


Why 2835 LED Chip?Better heat dissipation, higher brightness, longer life ≥50,000hrs, stable color, easy SMT assembly. Ideal for RGBW LED strips, light boxes & commercial lighting. RoHS compliant.


Specifications:


Item Power (W) CCT(K)/WLD(NM) Voltage
(VF)		 Current
(mA)		 Lumen
(LM)/(MCD)
SMD2835

Single color		 0.2W RED 620-625/625-630 2.0-2.4V 60mA 6-9LM
Deep Red 640-650/650-660 3-5LM
Yellow 590-595/595-600 6-8LM
Green 520-525/525-530 3.0-3.4V 10-12LM
Blue 460-465/465-470 3-5LM
UV 390-395/395-400 1-2LM
Pink 14-16LM
Ice Blue 15-17LM
Pink Purple 8-10LM
Amber/Gold Yellow1700-1900K 15-20LM
0.5W RED 620-625/625-630 2.0-2.4V 150mA 20-25LM
Yellow 590-595/595-600 18-20LM
20-25LM
Green 520-525/525-530 3.0-3.4V 30-35LM
Blue 460-465/465-470 12-14LM

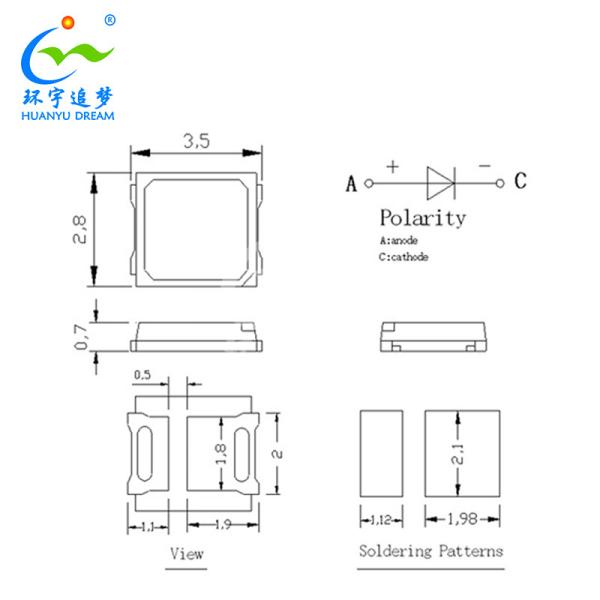

2835 LED SMD Chips measurement



Wholesale SMD LED CHIP 2835 Red Green Blue White High Brightness and Reliable LED CHIP



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .


Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places


Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
