LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED
LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED
LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED
LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-3528RGB-0.2W-3S
Certification :
RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
Ali Pay,T/T,Paypal,
Supply Ability :
1000000pcs/Day
Delivery Time :
7-15 Work Days
Packaging Details :
1000pcs/Reel
Type :
3528 RGB SMD LED Chip
Power :
0.2W
Current :
20mA*3
Voltage :
R:2.0-2.4V G/B: 3.0-3.4V
Wavelength :
Red: 620-625nm Blue: 460-465nm Green: 520-525nm
Description
LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED

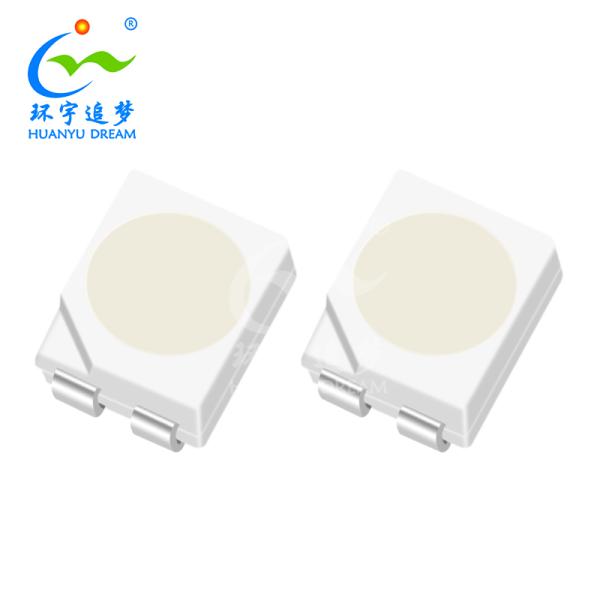

This is a 3528 package (3.5mm x 2.8mm in size) RGB triple-color SMD LED. It integrates red, green, and blue three chips, with a maximum power of 0.2W per lamp bead and a standard forward voltage of typically around 3V (varies by color). It can achieve full-color lighting effects by mixing the three primary colors, making it widely used for ambient and decorative lighting.

Product Specifications
Attribute Value
Type RGB SMD 3528 LED Chip
Power 0.2W
Current 20mA*3
Voltage R:2.0-2.4V G/B: 3.0-3.4V
Wavelength Red: 620-625nm Blue: 460-465nm Green: 520-525nm

Product Function

  • Compact Size: 3528 package (3.5mm x 2.8mm).

  • Tri-Color: Integrates red, green, and blue chips in one unit.

  • Power Rating: 0.2W per LED.

  • Voltage: Operates at ~3V (varies by color).

  • Full Spectrum: Mixes colors to produce diverse lighting effects.

  • Application: Ideal for decorative lighting, ambiance, and signage.

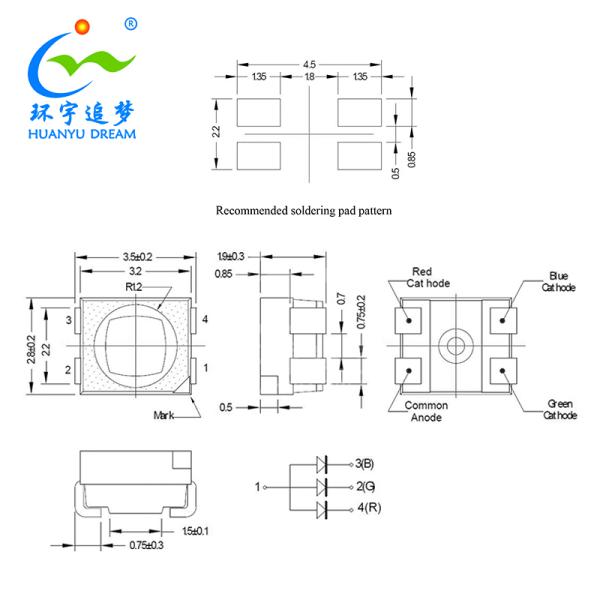

Product Graph


LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED

Application

LED 3528 RGB 3IN1 620NM 520NM 460NM SMD CHIP 3V 20mA*3 Light Strip LED
