2835 SMD 2.7-2.9V 35-37LM 60mA LED CHIP High Light Efficiency 218LM/W White SMD LED
2835 SMD 2.7-2.9V 35-37LM 60mA LED CHIP High Light Efficiency 218LM/W White SMD LED
2835 SMD 2.7-2.9V 35-37LM 60mA LED CHIP High Light Efficiency 218LM/W White SMD LED
2835 SMD 2.7-2.9V 35-37LM 60mA LED CHIP High Light Efficiency 218LM/W White SMD LED
Specifications
Brand Name :
HuanYu Dream
Model Number :
High Efficiency SMD 2835 LED
Certification :
Rohs
Place of Origin :
China
MOQ :
4000pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
500Kpcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
4000pcs/Reel
Package :
HY-2835W60-1W
Power :
1W
Voltage :
2.7-2.9V
Current :
300mA
Light Efficiency :
218LM/W@60mA
Color :
White
Viewing Angle(°) :
120°
Warranty :
3-years
CCT :
6000K(5800-6200K)
Description
2835 SMD 2.7-2.9V 35-37LM 60mA LED CHIP High Light Efficiency 218LM/W White SMD LED
This high-performance 2835 SMD LED offers a true white light color temperature of 6000K and a single-chip brightness of 35-37 lumens. Operating at a typical voltage of 2.8V and rated at 1W, it delivers a lumen efficiency of 218 lumens per watt at a low current of 60mA, combining high brightness with extreme energy efficiency.

Product Attributes
Attribute Value
Package HY-2835W60L35-1W (10108203)
Power 1W
Voltage 2.7-2.9V
Current 300mA
Light Efficiency 218LM/W@60mA
Color White
Viewing Angle(°) 120°
Warranty 3-years

Product Features
  • Appearance/package: Standard 2835 size (2.8mm x 3.5mm)
  • Color temperature: 6000K cool white (range: 5800K-6200K)
  • Luminous flux: Single LED brightness up to 35-37 lumens (LM)
  • Operating voltage: Typical 2.8V (range: 2.7V-2.9V)
  • Rated power: 1W (typically tested at rated current, e.g., 120mA or 150mA)
  • High luminous efficacy: Up to 218 lumens per watt (LM/W) when driven at 60mA low current, offering significant energy-saving performance.

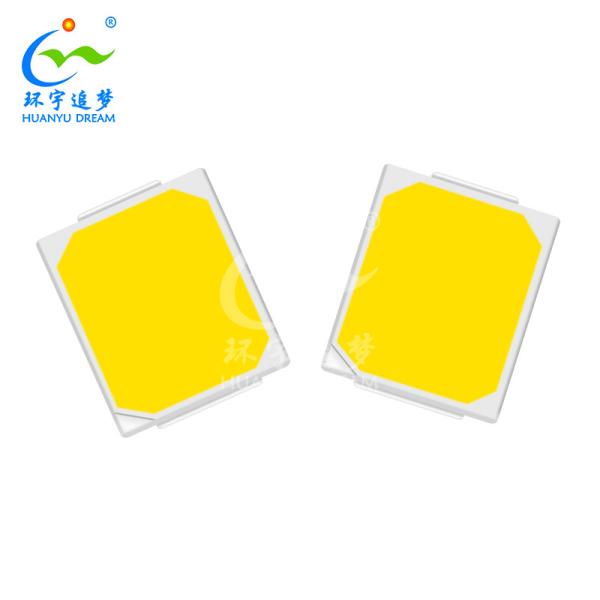

Product Photo

2835 SMD 2.7-2.9V 35-37LM 60mA LED CHIP High Light Efficiency 218LM/W White SMD LED

Application

  1. Commercial Lighting
    Display case & counter lighting.

  2. Industrial Lighting
    High-bay lights & LED tubes.

  3. Residential Lighting
    High-brightness energy-saving bulbs & ceiling lights.

  4. Special Lighting
    Plant growth supplement lighting & portable work lights.

Ideal for applications requiring high efficiency and brightness.
