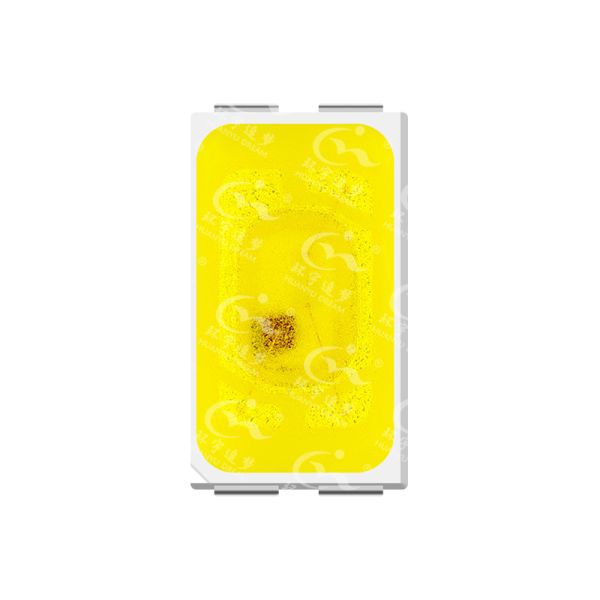

Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
Specifications
Voltage :
2.0-2.4 V/3.0-3.4V
Price :
Negotiable
Model Number :
HY-5630FRW57L8/36-1S
Dominant wavelength :
620 nm/White 5700K
Warranty :
3 Year
MOQ :
1000pcs
Certification :
RoHS
Place of Origin :
China
Supply Ability :
500kpcs/Day
Payment Terms :
T/T,Paypal,Ali Pay
Size :
5.6×3.0mm
CCT :
Red color and 5700K
Brand Name :
HuanYu Dream
Packaging Details :
4000pcs/Reel
Delivery Time :
7-9 Work Days
Type :
5630 Smd Led Chip
Description
Red 5730 SMD LED Chip 0.5W 620nm 2V 150mA

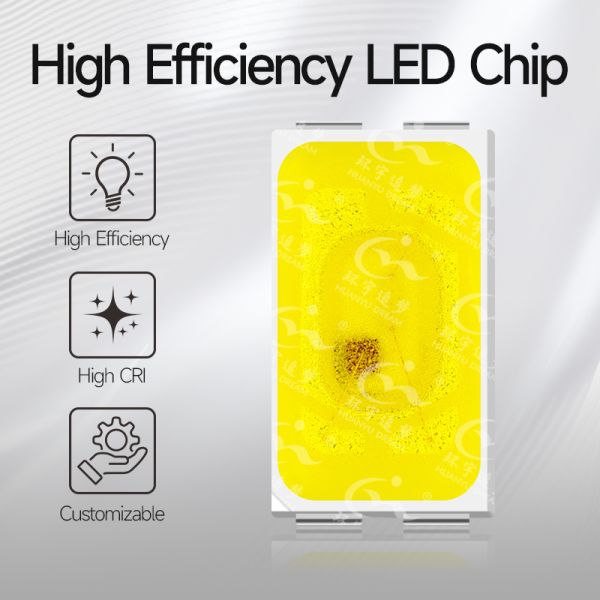

High PPF LED chip designed for car fog lights and interior ambient lighting with 3-year warranty.
Product Features
  • Compact package size: 5.6mm × 3.0mm
  • Multiple voltage and die configurations for diverse applications
  • High efficacy and superior light quality for distributed light sources
  • Excellent color reproduction
  • Broad CCT range from 2600K to 6700K available
  • Low thermal resistance
  • Environmentally friendly
  • Long lifespan and high reliabilityBi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty
5730 SMD LED Chip Dimensions
Tolerance: +/-0.1mm (Unit: mm)

Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty

Electrical and Optical Characteristics
Absolute Maximum Ratings (TA=25±5ºC)
Item Symbol Absolute Maximum Rating Unit
Forward Current IF 150*2 mA
Pulse Forward Current IFP 200*2 mA
Reverse Voltage VR 5 V
Power Dissipation PD 600*2 mW
Operating Temperature Topr -40ºC To +85ºC °C
Storage Temperature Tstg -40ºC To +85ºC °C
Soldering Temperature Tsld Reflow: 260ºC (10sec)
Hand: 350ºC (3sec)
Initial Electrical/Optical Characteristics (TA=25±5ºC)
Symbol Item Units Min. Typ. Max. Test Conditions
VF Forward Voltage V 2.0 2.2 2.4 IF=150mA
IR Reverse Current uA - - 5 VR=5V
2θ½ Viewing Angle º - 120º - IF=150mA
ø Luminous Flux lm 8 10 IF=150mA
IV Light Intensity mcd 2500 4000 IF=150mA
WLD Dominant Wavelength nm 620 625 630 IF=150mA
Symbol Item Units Min. Typ. Max. Test Conditions
VF Forward Voltage V 3.0 3.2 3.4 IF=150mA
IR Reverse Current uA - - 5 VR=5V
2θ½ Viewing Angle º - 120º - IF=150mA
ø Luminous Flux lm 36 40 IF=150mA
IV Light Intensity mcd 12000 15000 IF=150mA
CCT Color Temperature K 5500 5700 5900 IF=150mA
Applications
  • High Power LED Lamps
  • Indoor lighting: Fluorescent lamps, tubes
  • Commercial illumination and displays: Advertising signs, light boxes
  • Decorative lighting: Light strips
  • Various illumination applications
  • Car fog lights

Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty Bi-color Full spectrum White and Red 5630 Smd Led Chip 0.5W 620nm 2V 150 MA two colors for Car Fog Light and Car interior ambient lighting 3 Year Warranty

Frequently Asked Questions
Are you a manufacturer or trading company?
We are an experienced and professional LED manufacturer since 2013.
Would you offer free samples?
Yes, we offer free samples for quality testing.
What technical support can I get after purchase?
We provide datasheets and operation manuals. Our sales engineers are available to answer your questions anytime.
What about the lead time?
Lead time depends on order quantity. Typically 5-7 working days. Samples can be delivered same day.
If there is LED failure, how can you support?
Our engineering team will analyze failures and provide qualified replacements if the failure was caused by our LED products.
