2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
Specifications
MOQ :
Negotiable
Delivery Time :
7-9 Work Days
Color :
Green
Price :
Negotiable
Current :
60mA
CCT :
15000K
Packaging Details :
4000pcs/Reel
Model Number :
HY-2835RBBL50-8V3S
Applications :
Plant Grow Coral Reef Fish Color Tank Light Lamp Bead
Payment Terms :
T/T
Voltage :
7.5-8.0V
Brightness :
50-55LM
Supply Ability :
500000pcs/Day
Type :
2835 Aquarium SMD LED
Certification :
RoHS,LM-80
Place of Origin :
China
Brand Name :
HuanYu Dream
Customization :
Yes
Description
2835 8V Aquarium SMD LED Remix CCT 12000-15000K Red 620nm Blue 460nm Phosphor 3in1 60mA Plant Grow Coral Reef Fish Color Tank Light
Product Overview

The HY-2835RBBL50-8V3S is a revolutionary 3-in-1 spectrum LED that combines red, blue, and green output from a single chip package, specifically designed for advanced aquarium lighting applications.

Key Features

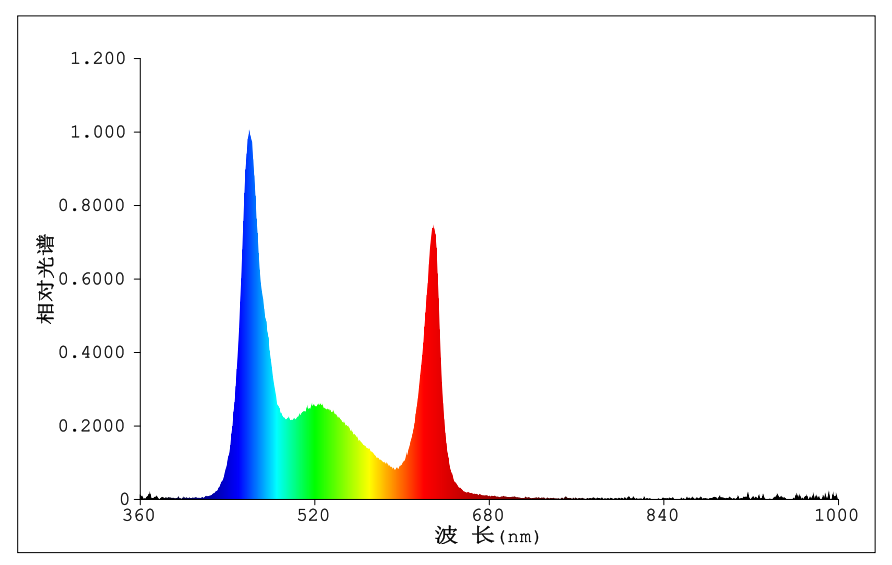

  • 3-in-1 Spectrum Architecture: One chip replaces three traditional diodes - 1×620nm Red + 2×460nm Blue + Green Phosphor
  • Space-Saving Design: Ideal for slim light bars and compact aquarium fixtures
  • High-Voltage Low-Current: 7.5-8V DC at only 60mA operation
  • Natural Green Output: Phosphor-converted green light mimics natural underwater ambient lighting
Technical Specifications
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
Model:
HY-2835RBBL50-8V3S
CCT/Wavelength:
15000K
Current:
50mA
Voltage:
7.5-8.0V
Package Options:
2835, 3030, 5730
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
Aquarium Applications
2835 Aquarium SMD LED Chip with 3-in-1 Spectrum Architecture High-Voltage Low-Current Design and Phosphor-Converted Green for Plant Grow Coral Reef Fish Color Tank Light
Type Specifications Aquarium Application Target Applications
2835 SMD LED 0.2W-0.5W, White/Red/Blue/Green/UV Flexible LED strips for small planted tanks & nano aquariums aquarium led strip, nano tank light chip, planted tank smd led
3030 SMD LED 1W 180-190LM, High Brightness White High-PAR DIY light panels for medium planted tanks (30-60cm) high par aquarium led, planted tank lumen led chip, freshwater light chip
5050 SMD LED RGB / RGBW, 0.5W-1.5W Color-tunable reef tank accent lighting, fish viewing enhancement rgbw reef led chip, coral aquarium rgb smd, fish tank color led
5730 SMD LED 0.5W-1W, High Voltage (9V/18V/36V) High-voltage light engines for commercial aquarium fixtures high voltage aquarium led module, commercial fish tank led engine
3030 IR SMD 730-740nm Far Red Sunrise/sunset simulation for programmable freshwater light panels sunrise sunset aquarium led, photoperiod smd diode, far red planted tank
UV SMD LED 365nm / 395nm UV-A Coral fluorescence excitation (actinic supplement for reef tanks) reef actinic uv led, coral glow smd chip, fluorescence excitation diode
Blue SMD LED 450-460nm Royal Blue Primary actinic lighting for LPS/SPS coral fluorescence viewing royal blue reef led, actinic coral smd, 450nm aquarium smd chip
Red SMD LED 620-630nm / 660nm Red plant coloration (planted) or fish color enhancement (viewing) red plant aquarium led, planted tank 660nm diode, fish color red smd
Green SMD LED 520-530nm Fish metallic scale brightening (Arowana, Discus viewing tanks) green fish tank led, arowana gold smd chip, discus viewing diode
Full Spectrum COB Ra95-Ra98, 50W-300W High-power primary light source for medium-large planted/reef tanks full spectrum aquarium cob, high cri reef led chip, planted tank cob module
Dual CCT COB 2700K+6500K, 100W+ to 300W+ Color-temperature tunable fixture for all-day aquarium light cycle tunable aquarium cob led, dual cct fish tank chip, bi-color reef led
RGBW COB LED RGB+2700K+6500K, 5-in-1 All-in-one spectrum engine for advanced reef controllers 5 in 1 aquarium cob, rgbw reef led engine, smart aquarium light chip
High Voltage SMD 5730 9V/18V/36V/72V Simplified driver design for cost-sensitive commercial aquarium fixtures high voltage aquarium smd, 36V fish tank led, commercial aquarium diode
Manufacturer Information

Shenzhen Huanyu Dream Technology Co., Ltd. is a comprehensive LED company with decades of experience in R&D, production, sales and service. Operating under factory name Shenzhen Jiatexin Optoelectronics Co., Ltd., located in Shenzhen.

  • 2,400 square meter Class 1000 dust-free workshop
  • 40 fully automatic high-speed production lines
  • Professional laboratories and R&D team
  • CE, ROHS certification and LM80, EN62471 test reports
  • Own trademark "Huanyu Dream"

Product Range: High-efficiency LEDs, high-CRI LEDs, high-power LEDs, full-spectrum LEDs, multi-color LEDs, plant growth LEDs, medical beauty LEDs and RG0 health LED lighting.

Popular Models: SMD2835, SMD3030, SMD3528, SMD5050, SMD5730, SMD7070 COB1313, COB1919, COB2828, COB3838, COB5445, COB6055 High voltage variants (6v, 9v, 12V, 18v, 24v, 36v, 72v).

Frequently Asked Questions
Q1. Can I order samples for testing?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time for orders?
A: Samples require 1-3 days, mass production takes 3-7 days depending on order quantity.
Q3. What is the MOQ and payment methods?
A: Minimum order quantity is 100pcs per model. We accept T/T, Paypal and Western Union payments.
Q4. How are goods shipped and delivery time?
A: We ship via DHL, UPS, FedEx or TNT (2-5 days delivery). Airline and sea shipping also available.
Q5. How to place an order?
A: 1. Provide your requirements or application. 2. We provide quotation. 3. Customer confirms samples and places order.
Q6. Can I have my logo printed on products?
A: Yes. Please inform us before production and confirm the design based on our sample.
Q7. Do you offer product warranty?
A: Yes, we offer 3 years warranty on our products.
Q8. How are faulty products handled?
A: Our products have strict quality control with defective rate less than 0.2%. During warranty period, we replace faulty products.
