Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Specifications
Model Number :
Ultra-Wide CCT SMD 2835 Tunable White LED Chip Kit
Package Type :
SMD 2835
MOQ :
4000pcs
Delivery Time :
7-9 Work Days
Current :
60mA per LED
Application :
Tunable white, HCL, circadian and smart luminaire developmen
Payment Terms :
T/T,Paypal,Ali Pay
Target Tuning Range :
Designed for 1800K–12000K system development
Price :
Negotiable

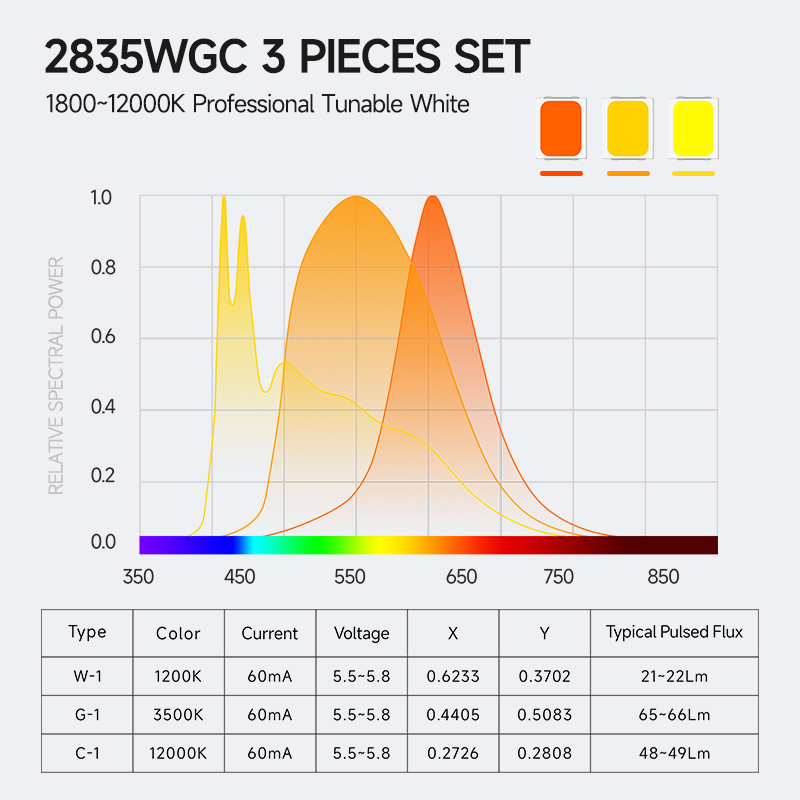

Luminous Flux :
Typical pulsed flux; see table
Certification :
Rohs
CCT Primaries :
1200K / 3500K / 12000K
Supply Ability :
500Kpcs/Day
Color Rendering :
High-CRI design, catalog states Ra≥95
Warranty :
3-years
Brand Name :
HuanYu Dream
Product Name :
SMD 2835 Tunable White LED Chip Kit
Place of Origin :
China
Voltage :
5.5–5.8V per LED
Packaging Details :
4000pcs/Reel
Viewing Angle(°) :
120°
Description
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit
This professional 3-channel LED mixing kit enables tunable white fixture development with an exceptional CCT range from 1800K to 12000K, delivering superior color rendering and energy efficiency.
Product Description
This SMD 2835 LED chip set features an exceptionally high luminous efficacy of 242 lm/W (@45mA). At 2W power, it produces true white light in the 6000-6500K range with a color rendering index of Ra70. With robust performance and maximum operating current of 300mA, it's ideal for energy-efficient industrial lighting applications.
Technical Specifications
AttributeValue
PackageSMD 2835
Power0.2-0.5W*3
Voltage5.5-5.8V*3
Current60mA*3
CRI90-95RA Available
Color Temperature1200K / 3500K / 12000K (Deep Warm/Warm White/Ultra-Cool White)
Viewing Angle120°
Warranty3-years
Key Features

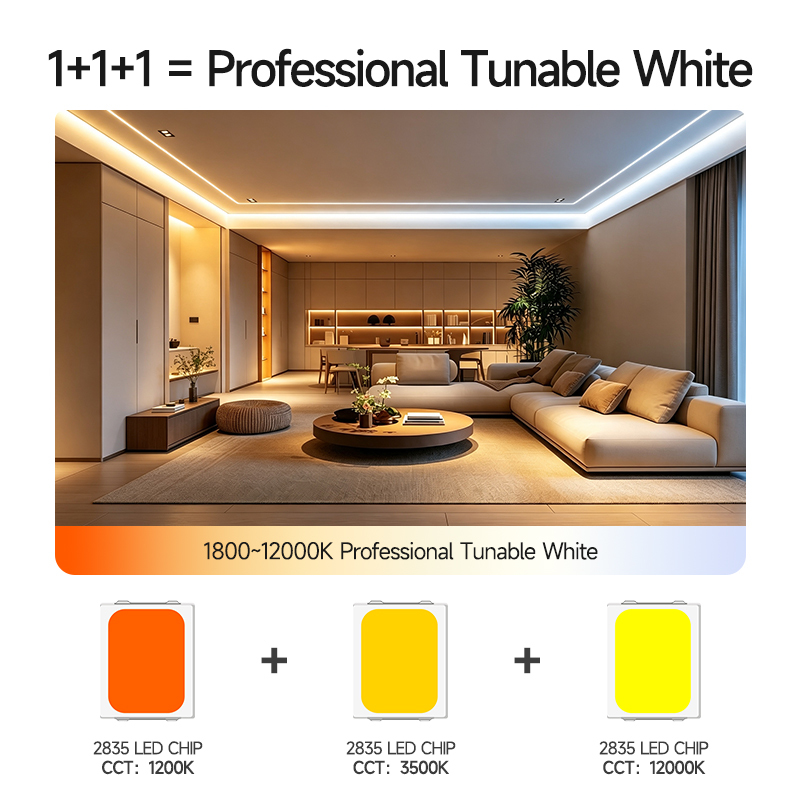

  • Three-Primary CCT Mixing Architecture
  • Designed for Ultra-Wide Tunable White Systems
  • Engineering Data for Precise Fixture Development
  • Standard 2835 Footprint for Luminaire Integration
  • Built for Custom Spectral Recipe Development
  • 50,000 hours lifetime
Three independently driven LED primaries allow engineers to develop different warm-to-cool transition curves and spectral recipes. Please provide target CCT points, CRI, Duv, lumen output and control method for technical evaluation.

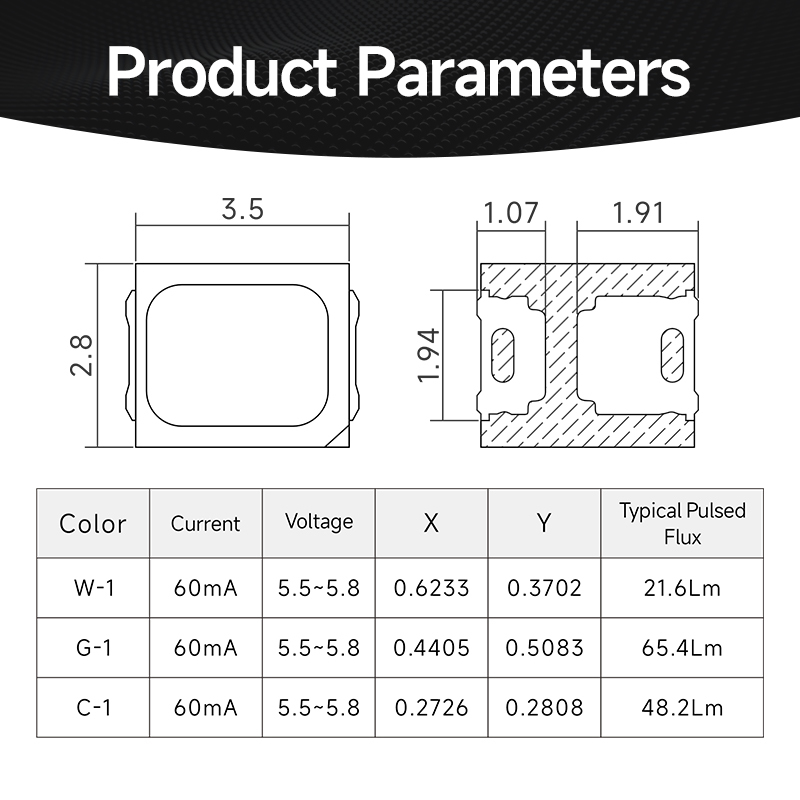

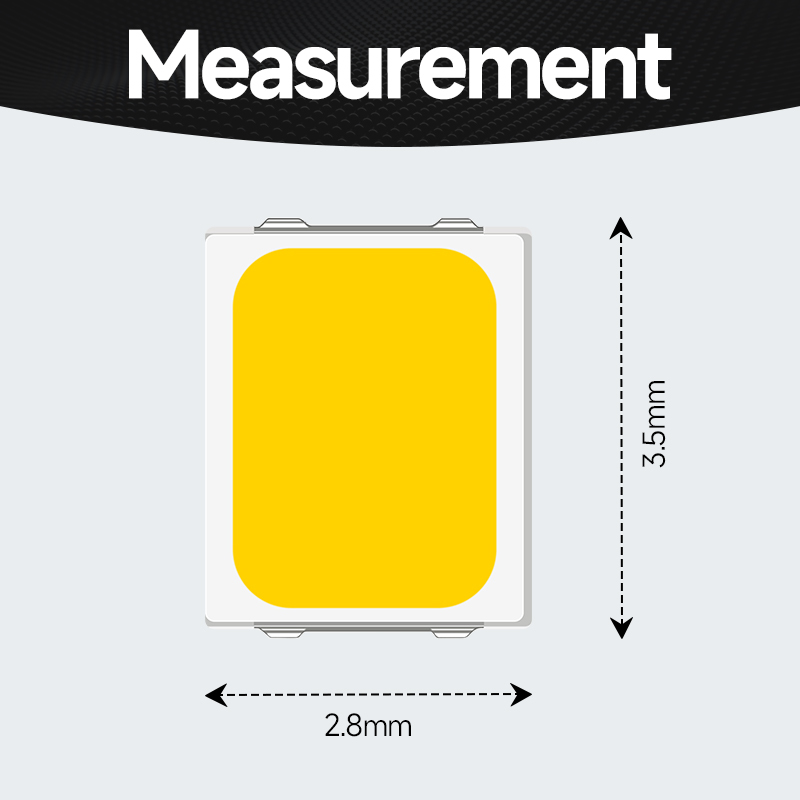

Product Dimensions
Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development Ultra-Wide CCT SMD 2835 LED Chip Set High CRI Mixing Kit for 1800K-12000K 3-Channel LED for Tunable White Fixture Development
Applications
  • Commercial and Office Lighting: LED panel lights, light strips, and grille lights requiring high brightness and low energy consumption for offices, schools, and shopping malls
  • Home Basic Lighting: High-brightness, energy-saving LED ceiling lights, bulbs, and downlights for living rooms and bedrooms
  • Industrial and Public Area Lighting: High-ceiling or large-space applications including factories, warehouses, garages, and underground parking lots
  • Auxiliary and Functional Lighting: Cabinet lights, light strips, and advertising light boxes requiring high-brightness auxiliary lighting
Frequently Asked Questions
Q1: Are you a factory or a trade company?
A1: We are the manufacturer specializing in SMD and COB LED chips since 2013.
Q2: Can I get some samples for tests?
A2: Yes, we can offer free samples for quality and performance evaluation. Clients are responsible for shipping costs.
Q3: What about the lead time?
A3: Samples typically take 3-5 working days, while mass orders require 7-25 working days.
Q4: Do you accept customized products?
A4: Yes, we provide OEM and ODM services. Please share your requirements for technical evaluation.
Q5: How many years of warranty do you offer? How do you handle product issues?
A5: We offer a standard 3-year warranty (extendable by negotiation). Contact us for any product issues during warranty period.
Q6: How to process the order?
A6:
  1. Provide product requirements (size, color, power, quantity)
  2. We'll send quotation and check stock availability
  3. We'll provide proforma invoice after sample confirmation
  4. You make payment after reviewing details
  5. We arrange delivery and provide ongoing support
