High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY-High Voltage White Series
Certification :
Rohs
Place of Origin :
China
MOQ :
4000pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal,Ali Pay
Supply Ability :
2KKpcs/Day
Delivery Time :
7-9 Work Days
Packaging Details :
4000pcs/Reel
Package :
HY-2835W-9V
Power :
1W
Voltage :
9V
Current :
100mA
Lumen :
150-160LM
Color :
White
Viewing Angle(°) :
120°
Warranty :
3-years
Description

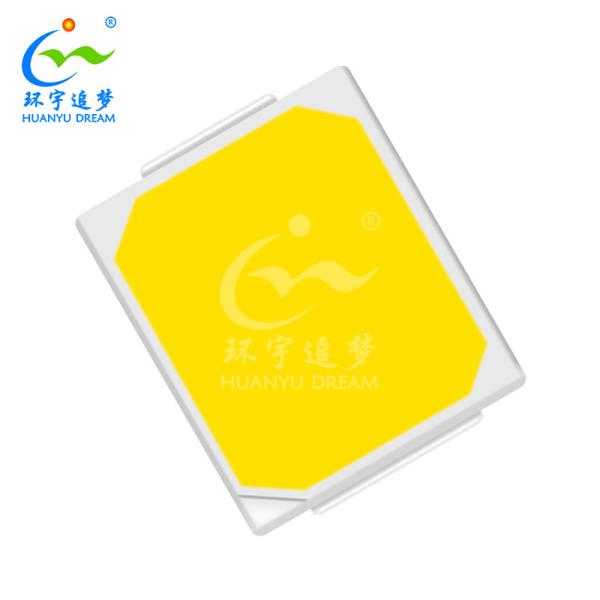

High Volt 9V 100mA White 2835 SMD LED With High Lumen Output 150-160LM

High bright compact design, and industry standard smd package 2835 0.2W 0.5W 1W with various volt choices 3V 6V 9V 18v ​36V to meet a wide range of various lighting application requirements. High bright compact design widely used in variouslighting applications.

Product Application

  • ​High Power LED Lamp
  • Indoor lighting: Fluorescent lamp, tube
  • Commercial illumination and displays: Advertising words, light box
  • Decorative lighting: light strip
  • Automotive interior auxiliary lighting
  • LCD Back lightingOther illumination and displays

Product Specifications


Standard If: 100mA Typical Vf:9V Power:1W
Color CCT(K)


CRI(Ra)

 9V @100mA (lm) Part Number Efficiency(lm/w)@100mA

Warm white

 2900-3200 70 140-150 HY-2835W29A140 160-170

Neutral White

 3800-4200 70 150-160 HY-2835W38A150 170-180

Pure White

 4700-5300 70 150-160 HY-2835W47A150 170-180

Pure White

 5500-6000 70 150-160 HY-2835W55A150 170-180

Cool White

 6000-6500 70 145-155 HY-2835W60A145 160-170

Dimension(Units:mm; mark is cathode)

High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm

Test report(@100mA 4000K 70Ra)

High Volt 9v 100ma 2835 Smd Led Chip High Lumen Output 150-160lm

Remark: If you are interested in this model, Pls don't hesitate to contact me to get more information! !!
