500W High Power COB LED Chip with 97 CRI and 7200mA for Industrial Lighting
500W High Power COB LED Chip with 97 CRI and 7200mA for Industrial Lighting
500W High Power COB LED Chip with 97 CRI and 7200mA for Industrial Lighting
500W High Power COB LED Chip with 97 CRI and 7200mA for Industrial Lighting
500W High Power COB LED Chip with 97 CRI and 7200mA for Industrial Lighting
500W High Power COB LED Chip with 97 CRI and 7200mA for Industrial Lighting
Specifications
Brand Name :
HuanYu Dream
Model Number :
HY05047-56J3-2448B
Certification :
RoHS
Place of Origin :
China
MOQ :
1piece
Price :
Negotiated
Payment Terms :
T/T,Paypal,Ali Pay
Supply Ability :
30000 units per day
Delivery Time :
10-15 Work Days
Packaging Details :
4 pcs/Tray
Product Name :
5047 500W COB LED
Power :
500 W
Series :
24S48P
Current :
7200 mA
Voltage :
72-76V
CRI :
97
Color Temperature :
3000K/4000k/ 5000k/ 6000K
Working Time :
50000 hours
Description

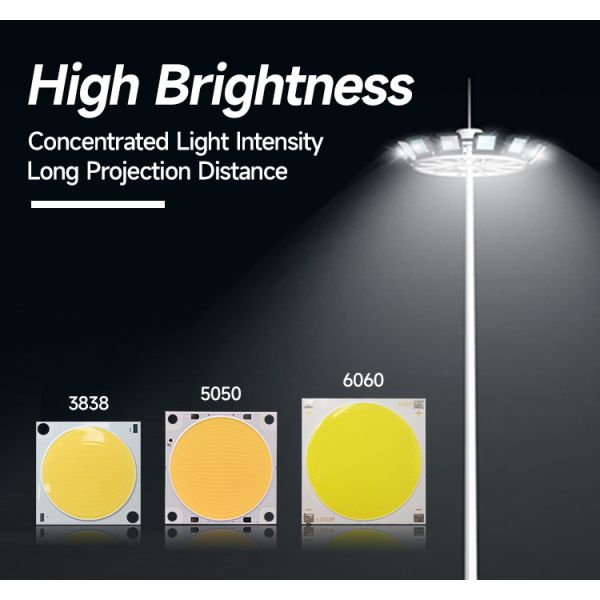

Super High Power COB LED Chip 500W 5050mm
High-performance 500W COB LED chip delivering 50,000-60,000 lumens with 98 CRI and Ra97 color quality. Ideal for industrial, mining, and large-space outdoor lighting applications.
Product Features
  • High lumen output and brightness density
  • Uniform light field distribution
  • Excellent color rendering (CRI 97, Ra97)
  • Wide 120° viewing angle
  • RoHS compliant and corrosion resistant
  • Suitable for manual soldering applications
Technical Specifications
Dimensions: 50.0 mm × 50.0 mm × 2.4 mm
Electrical & Optical Characteristics
Parameter Symbol Test Condition Min Typ Max Unit
Forward Voltage VF IF=7200mA 72 74 76 V
Luminous Flux (3100-3300K) φ IF=7200mA 40000 -- 50000 Lm
Luminous Flux (5500-5700K) φ IF=7200mA 50000 -- 60000 Lm
Viewing Angle 2θ1/2 IF=7200mA 120 Deg
Color Rendering Index CRI IF=7200mA 97 -- 98 --
Thermal Resistance Rth(j-s) IF=7200mA -- -- 0.67 ℃/W
Absolute Maximum Ratings
Parameter Symbol Rating Units
Power Dissipation Pd 500 W
Forward Current IF 7200 mA
Peak Forward Current IFP 7400 mA
Junction Temperature Tj 115 ℃
Solder Temperature Ts 350 ℃
Operating Temperature Topr -40 ~ +85 ℃
Storage Temperature Tstg -40 ~ +100 ℃
Package Information
4 pieces per tray, 10 trays per ESD shielding bag (40 pieces total)
Applications
  • High-power flood lights
  • High-bay lighting systems
  • Stadium and sports lighting
  • Industrial and mining lamps
  • Searchlights and emergency lighting
  • Large-scale advertising projectors
  • Stage and studio lighting
  • General indoor/outdoor lighting
Our Service Commitment
  • Response to inquiries within 12 working hours
  • Experienced English-speaking support staff
  • Strict quality control before shipment
  • Customized design services (OEM/ODM available)
  • Worldwide delivery with speed and precision
