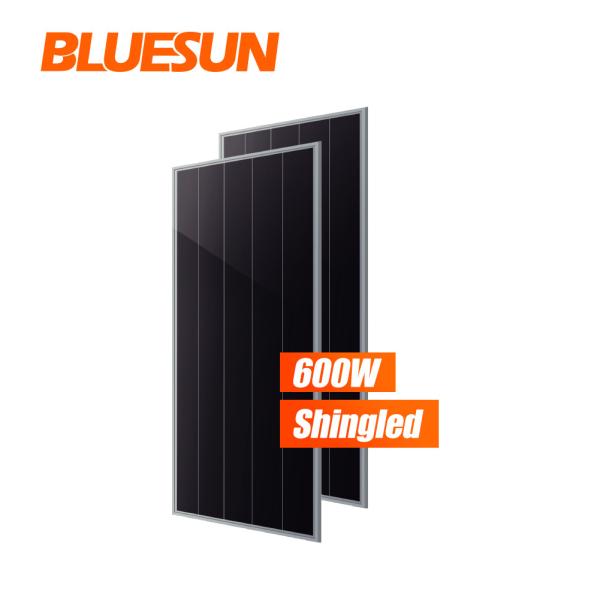

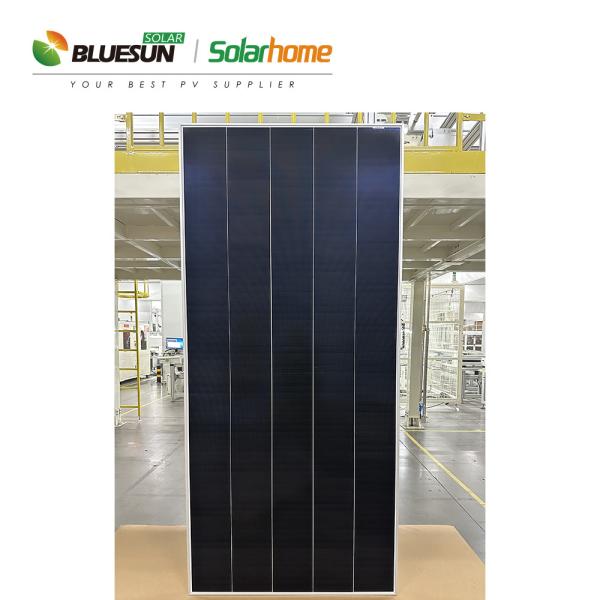

Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Specifications
Brand Name :
Bluesun
Model Number :
BSM600PMB6-60SDC
Place of Origin :
Anhui, China
Cell size :
210mmx210mm
Panel Dimensions :
2384 *1096*30mm
Panel Efficiency :
23%
Front Glass :
Tempered Glass, 2.0mm
Weight :
32.0± 0.3kg
Cable Length :
Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size :
TUV: 4mm (0.006inches )/UL: 12AWG
Packing Configuration :
36pcs/box; 720pcs/40'HQ
Frame :
Anodized Aluminium Alloy
Junction Box :
IP68, three diodes
Description
Products Description
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Product Parameters
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
SPECIFICATIONS
Module Type
BSM585PMB6-60SDC
BSM590PMB6-60SDC
BSM595PMB6-60SDC
BSM600PMB6-60SDC
BSM605PMB6-60SDC
BSM610PMB6-60SDC
STC
STC
STC
STC
STC
STC
Maximum Power
(Pmax/W)
585
590
595
600
605
610
Operating Voltage
(Vmp/V)
39.80
39.90
40.00
40.10
40.20
40.30
Operating Current
(Imp/A)
14.71
14.80
14.89
14.98
15.07
15.16
Open-Circuit Voltage(Voc/V)
47.80
47.90
48.00
48.10
48.20
48.30
Short-Circuit Current(Isc/A)
15.67
15.77
15.87
15.97
16.07
16.17
Module Efficiency in STCηm(%)
22.40
22.60
22.80
23.00
23.20
23.40
STC: Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass AM1.5
Advantages Of Shingled Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel
Bluesun Solar Panel BSM600PMB6-60SDC 600W Bifacial Double Glass Shingled HJT Mono Solar Panel

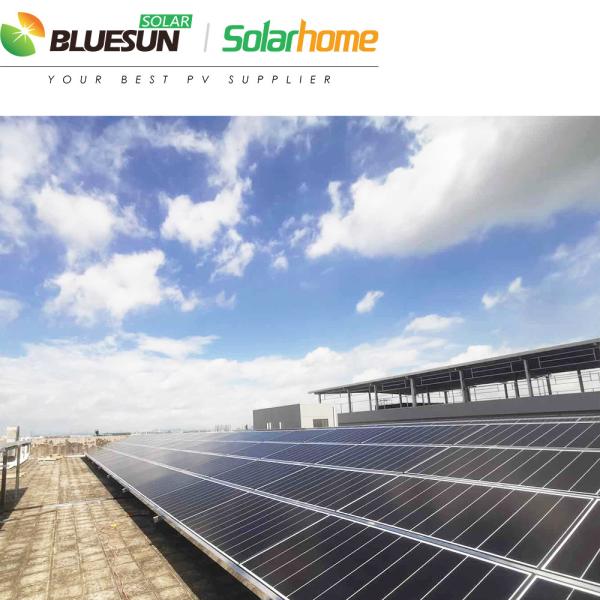

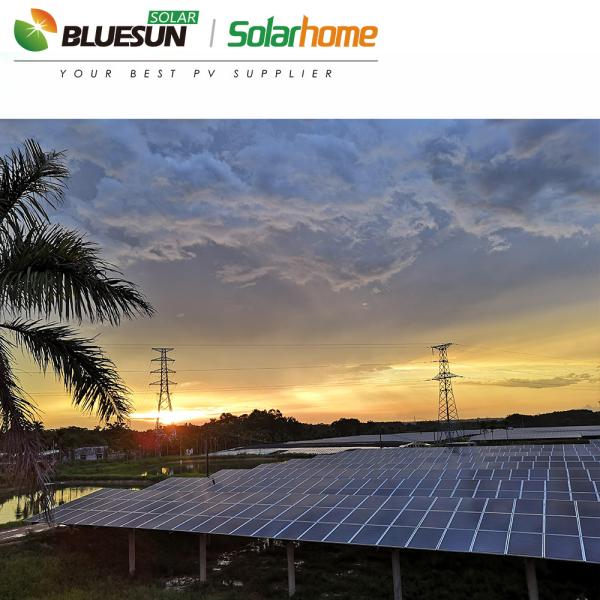

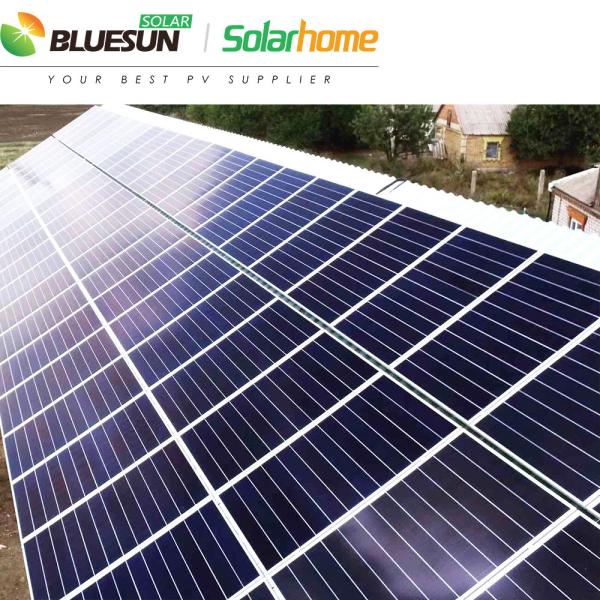

Projects
