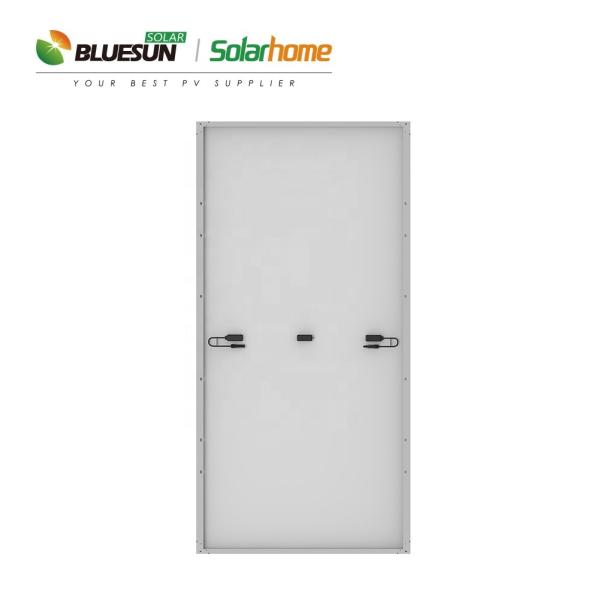

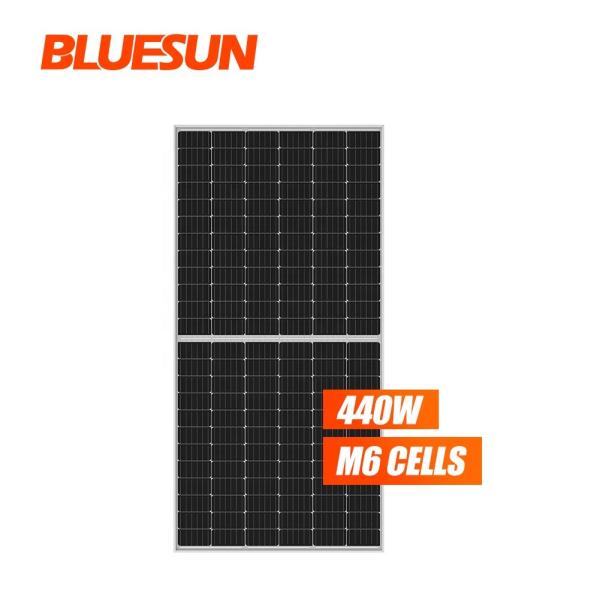

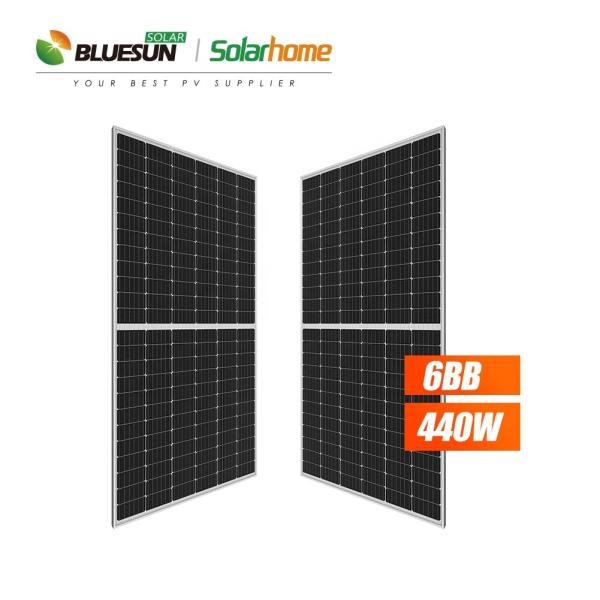

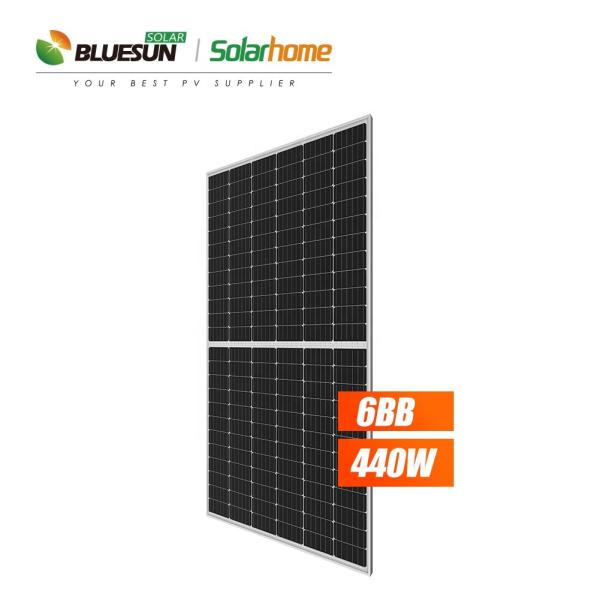

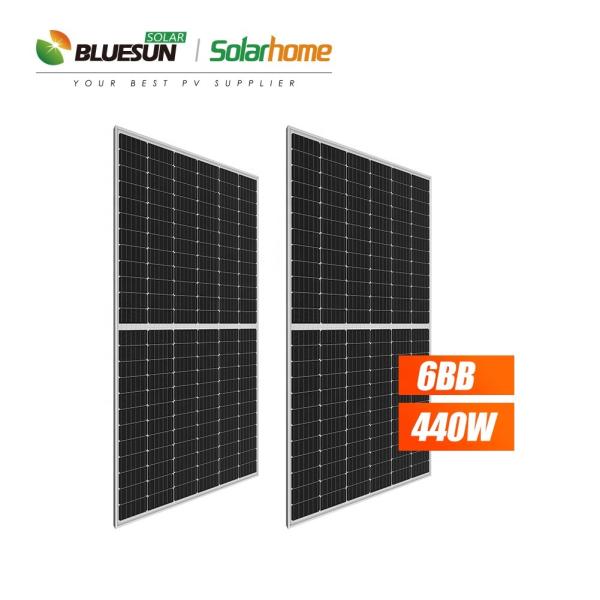

Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Specifications
品牌 :
Bluesun/OEM
型号 :
BSM455M-HPH
原产地 :
Anhui, China
电池片尺寸 :
166mmx166mm
类型 :
打击乐, 半电池, 标准太阳能电池板
尺寸 :
2094*1038 * 35mm
组件效率 :
20.9%
重量 :
25.5kg
产品名称 :
半电池太阳能电池板144电池单390w
太阳能电池板 :
单声道455瓦
保修 :
25年输出功率保证
应用程序 :
太阳能发电系统
接线盒 :
IP68额定
证书 :
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
前玻璃 :
3.2mm高传输
TPT背板 :
白色或黑色
保修期 :
15年
Description
Products Description
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Perc Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Electrical Characteristics
Model Number
BSM425M-72HPH
BSM430M-72HPH
BSM435M-72HPH
BSM440M-72HPH
BSM445M-72HPH
BSM450M-72HPH
BSM455M-72HPH
Testing Condition
STC
Maximum Power (Pmax/W)
425
430
435
440
445
450
455
Open Circuit Voltage (Voc/V)
48.3
48.5
48.7
48.9
49.1
49.3
49.5
Short Circuit Current (Isc/A)
11.23
11.31
11.39
11.46
11.53
11.60
11.66
Voltage at Maximum Power (Vmp/V)
40.5
40.7
40.9
41.1
41.3
41.5
41.7
Current at Maximum Power (Imp/A)
10.50
10.57
10.64
10.71
10.78
10.85
10.92
Module Efficiency(%)
19.6
19.8
20
20.2
20.5
20.7
20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5
Projects
Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Configuration：425W Solar Panel EU Stock
Installation site：Croatia
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel
Installation site：U.K.
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Configuration：440W Black Frame Shingled Solar Panel
Installation site：Sweden Gothenburg
Bluesun Company
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Bluesun Solar, as one of the top solar integrated solution provider in China, is a high-tech manufacturer specializing in R&D of solar panels,lithium battery and ESS.

Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
Our Global Exhibition
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
INTERSOLAR EUROPE
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
INTERSOLAR MEXICO
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
INTERSOLAR AMERICA
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
THE FUTURE ENERGY SHOW PHILIPPINES
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
SOLAR SOLUTIONS INT AMSTERDAM
Panel Solar Frame 35mm 455watt Tier 1 Factory Panel Pv Tuv Certificate Bluesun Solar Panel Cell 166mm
SOLAR & STORAGE LIVE UK
