BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
Specifications
Brand Name :
Bluesun
Model Number :
BSM600PMB6-60SDC
Place of Origin :
Anhui, China
Cell size :
210mmx210mm
Type :
PERC, Monocrystalline Shingled Solar Panel
Panel Dimensions :
2355*1303*35mm
Panel Efficiency :
21.3%
Weight :
38.5kg
Warranty :
25 Years, 25 years
Junction Box :
IP68, 3 Bypass Diodes
Max System Voltage :
DC 1500V(IEC)
Dimensions :
2355*1303*35mm
Frame :
Anodized Aluminium Alloy
Voltage :
44.1V
Efficiency :
21.3%
Certificate :
CE/TUV
Description
Products Description
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
Product Parameters
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
SPECIFICATIONS
Module Type
BSM585PMB6-60SDC
BSM590PMB6-60SDC
BSM595PMB6-60SDC
BSM600PMB6-60SDC
BSM605PMB6-60SDC
BSM610PMB6-60SDC
STC
STC
STC
STC
STC
STC
Maximum Power
(Pmax/W)
585
590
595
600
605
610
Operating Voltage
(Vmp/V)
39.80
39.90
40.00
40.10
40.20
40.30
Operating Current
(Imp/A)
14.71
14.80
14.89
14.98
15.07
15.16
Open-Circuit Voltage(Voc/V)
47.80
47.90
48.00
48.10
48.20
48.30
Short-Circuit Current(Isc/A)
15.67
15.77
15.87
15.97
16.07
16.17
Module Efficiency in STCηm(%)
22.40
22.60
22.80
23.00
23.20
23.40
STC: Irradiance 1000w/m2, Cell Temperature 25°C, Air Mass AM1.5
More details, please send us inquiry
Advantages Of Shingled Panel
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use

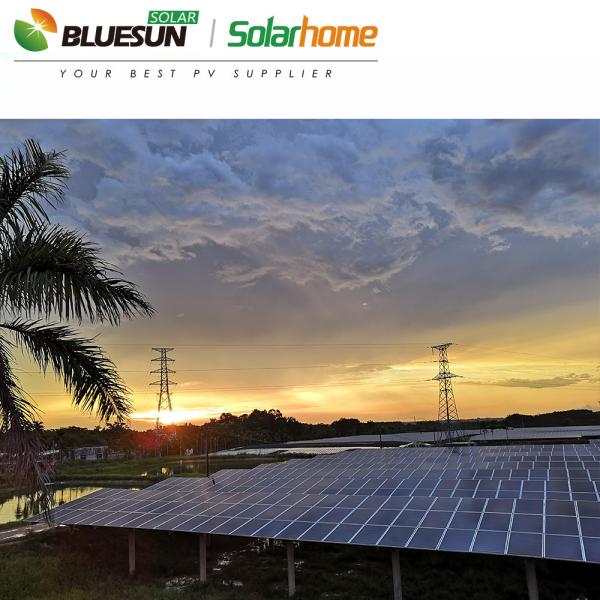

Projects
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
Packing & Delivery
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
BLUESUN Best Supplier Solar Panels 550w 585w 600w Double Glass Shingled Solar Panel Solar Energy System Use
