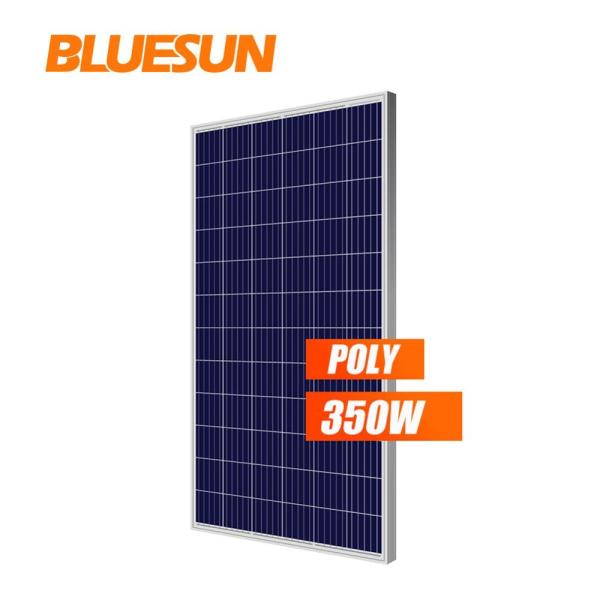

Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Specifications
Brand Name :
Bluesun
Model Number :
BSM350P-72
Place of Origin :
Anhui, China
Cell size :
158.75mmx158.75mm
Type :
PERC, Polycrystalline Solar Panel
Panel Dimensions :
1956*992*40mm
Panel Efficiency :
22%
Junction Box :
IP67 Waterproof
Product name :
Solar Panel
Warranty :
25 Years Solar Panel, 10 years
Certificate :
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
OEM :
Accepatable
Frame :
Anodized Aluminium Alloy
Solar cell :
Poly 156*156 Cell
Connector :
PV Compatible Connector
Application :
Solar Panel System
Description
Product Description
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Moduel
BSM325P-72
BSM330P-72
BSM335P-72
BSM340P-72
BSM350P-72
Rated Maximum Power at STC
325W
330W
335W
340W
350W
Open CircuitVoltage(Voc/V)
46.0
46.1
46.3
46.5
46.9
Maximum Power Voltage(Vmp/V)
37.17
37.6
37.9
38.2
38.5
Short Circuit Current(Isc/A)
9.05
9.28
9.36
9.45
9.6
Maximum Power Current(Imp/A)
8.74
8.78
8.84
8.9
9.09
Module Efficiency(%)
16.77
17.00
17.3
17.5
18.0
Power Tolerance
-0~+5W
Standard Test Condition(STC)
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Detail
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System

Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System

Frame

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

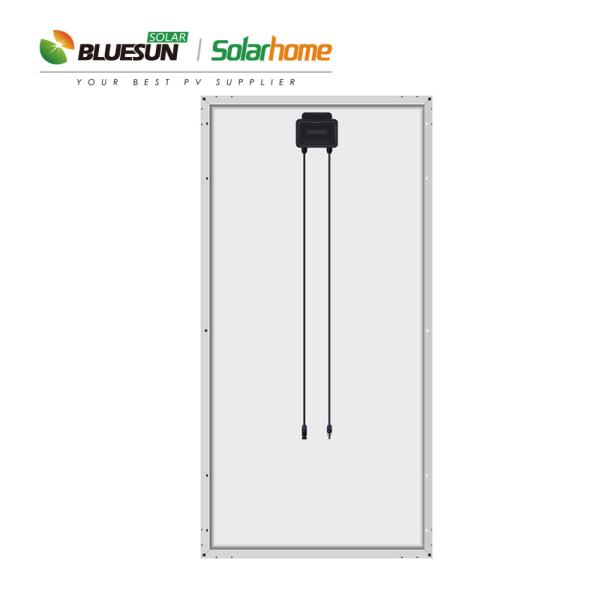

Junction box

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System

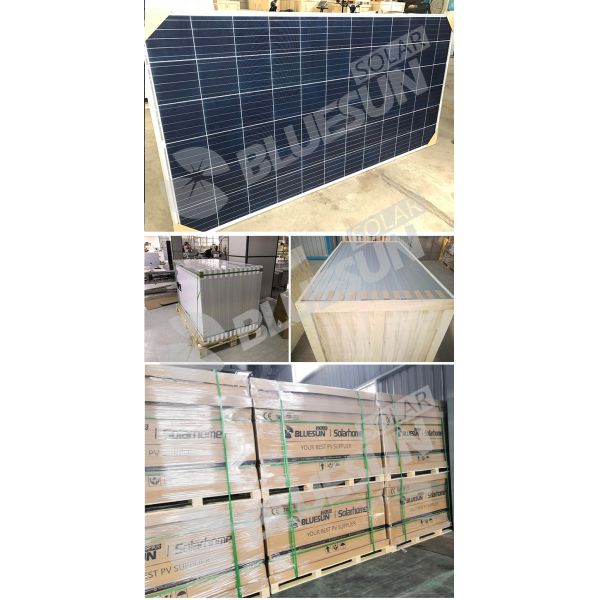

Produce Line&Packing
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
By Sea
Delivery from Shanghai or Ningbo seaport
By Air
Departure from Shanghai Pudong Airport
By Express
By TNT/DHL
Certifications
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Payment


Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CNF

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

Our Company
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System
Global Exhibitions
Bluesun De Tier 1 330 Wp 340 Watt 350w 400watt500w 550w for Solar Panel System

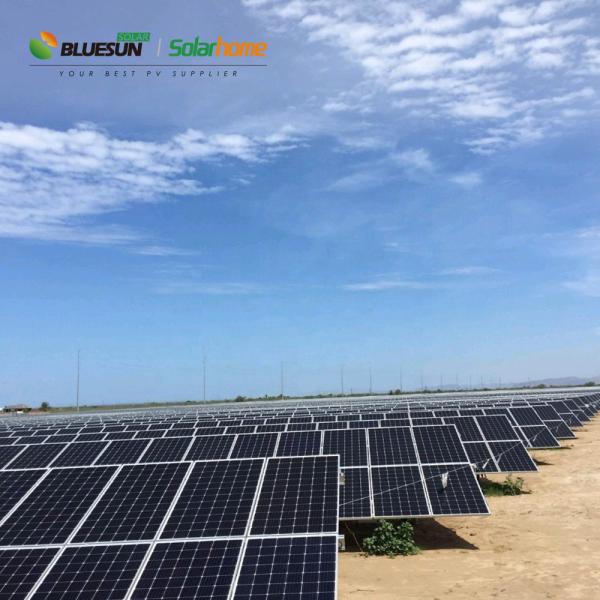

Project
