Specifications
Brand Name :
Headway
Max Load Quantity(cells) :
4

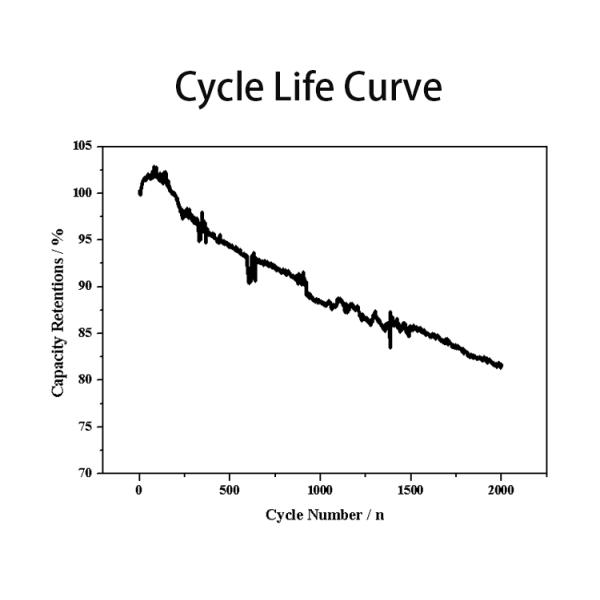

Cycle Life :
3000 cycles, 3000 Times
Application :
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For
Model Number :
40175L
Weight :
520g
Operating Temperature(℃) :
-10~60
Place of Origin :
Zhejiang, China
Cathode Materials :
LiFePO4
Type :
LiFePO4
Model No :
40175L
Features :
Capacity Type
Shape :
Cylindrical
Size :
Dia 40mm * H 175mm
Nominal Voltage :
3.2V
Nominal Capacity :
25Ah
Discharge Rate :
1C Standard; 3C Max; 6C Max Instant
Anode Material :
LFP
Description
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Lithium Battery Parameter
Item
Specification
Nominal Capacity (@0.5C, 20℃)
25Ah
Min capacity (@0.5C, 20℃)
24.5Ah
Nominal voltage
3.2V
Max Charging voltage
3.65 ±0.05 V
Discharge cut-off voltage
2.5 ±0.05 V
Charging current
Standard: 0.5C
Max: 2C @≥10℃; 1C @ 0℃~10℃; 0.1C @ -10℃~ 0℃
Discharging current
Standard: 0.5C; Max: 3C; Max Instant (≤30S): 6C
Recommended temperature of the cell surface during charge and discharge
Charging: 0℃～45℃
Discharging: -20℃～60℃
The short-term maximum temperature of the cell surface during charging and discharging (in these cases charge and discharge will
cause the cell cycle life to decay rapidly)


Charging: at 60℃
Discharging: at 75℃
Humidity range
0～90%RH (non-condensing)
Internal resistance
≤4mOhm (AC Impedance 1000HZ)

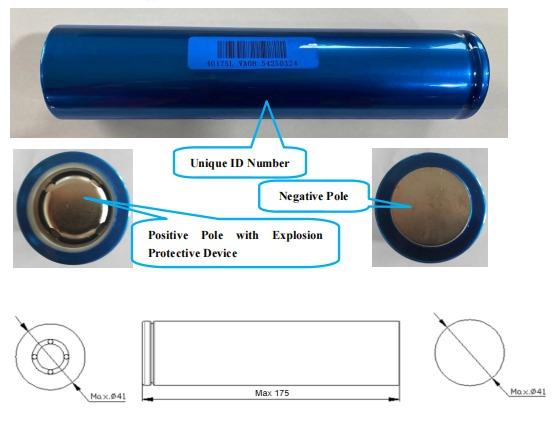

Cell dimension
Dia 41mm * H 175mm
Weight
520g
Quality
Grade A
Product Description
Uses: 40175L 3.2V 25Ah, can be applied to energy storage, 100% electric vehicles and other fields.
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell

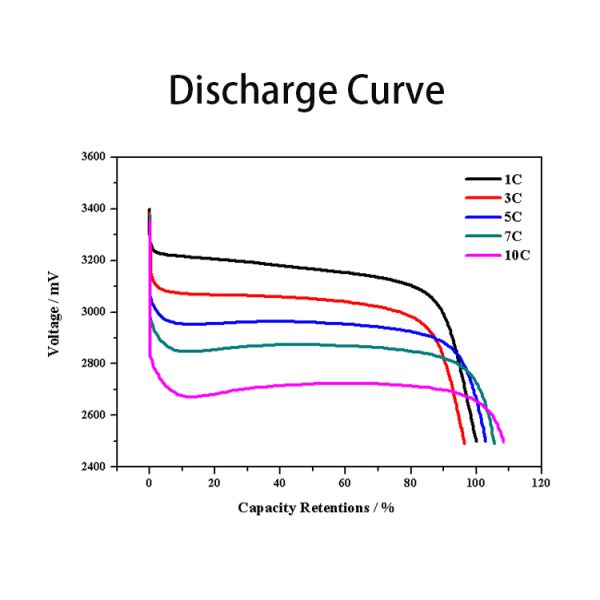

Rate Discharge Performance
1C Discharge Capacity / Discharge capacity @0.5C
≥98%
3C Discharge Capacity / Discharge capacity @0.5C
≥96%
5C Discharge capacity / Discharge capacity @0.5C
≥94%
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell

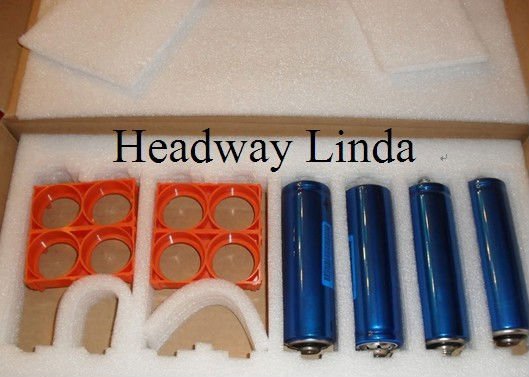

Packing & Delivery
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Equipment
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Certifications
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell
Headway 3.2V25Ah Lithium-ion Battery Cell Manufacturer 40175L Lithium Battery LiFePO4 Battery Cell

Company Profile


Zhejiang Xinghai Energy Technology Co., LTD. (referred to as "Xinghai Energy") is a subsidiary of Headway Group, which is involved in the field of lithium-ion battery, optical cable and data cable etc. With a total asset of 1 billion Yuan and 1,500 employees (192 technical personnel included), Headway Group has currently become an international enterprise with an annual output over 1 billion Yuan. Domestic marketing & sales are mainly handled by Headway Group’s North and South Business Divisions’ branches / offices in Beijing, Shanghai, Chengdu, Hangzhou, Shenzhen, Guangzhou, Shijiazhuang, Zhengzhou, Xi’an, Jinan, Qingdao, Shenyang and other places; as to the international business which is led by Xinghai Energy’s Sales Department and Headway Group branches in Beijing, Shenzhen and Germany.

Located in Changxing state-level E&T development zone in Zhejiang Province, Xinghai Energy has been focusing on the R&D, production, sales and service of lithium-ion batteries since its establishment in 2003. Relying on a number of technical patents of its own, Xinghai Energy has achieved the mass production of battery cells and packs, and taken which as core, has also developed into a comprehensive integrated energy solution provider.

Nowadays, Xinghai Energy has an annual production capacity of 20 billion watt hours by its main products of large capacity cylindrical LiFePO4 cells and packs. Energy storage batteries are mainly used in communication, industrial, commercial and domestic fields or scenarios. The main applications of small power battery are AGV, low speed EVs (two-wheeled vehicles, tricycles, golf carts, etc.), and electric machinery such as forklifts, etc.

Thanks to the Headway ® lithium batteries developed independently, Xinghai Energy has successfully entered the international market for many years, and products are mainly sold to Europe, America and Southeast Asian countries with high popularity and reputation wildly. Xinghai Energy is fully qualified and has passed ISO9001, ISO14001, ISO45001, TS16949, CE, UL, TLC, CB, ROHS and other certifications. In 2010, Xinghai Energy was recognized as a national high-tech enterprise with a provincial high-tech R&D center.

Xinghai Energy is skilled in the R&D and production of high-rate, medium-rate and high-capacity cylindrical steel shell cells. It has become a major supplier of lithium batteries for many multinational telecom operators, a core supplier of lithium batteries for global hydrogen energy leaders and a strategic partner of high-end semiconductor industry. By the end of 2021, we have supplied more than 100,000 pieces of 48V100Ah battery packs to telecom operators, more than 10 million high-power 38120HP cells to hydrogen energy leaders and battery packs integrated with 40152S medium power cell in batches to semiconductor enterprises.

Xinghai Energy will treat create value for customers as its business philosophy, and keep providing continuously first-class products and solutions for customers as its eternal pursuit.
