Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Specifications
Brand Name :
Headway
Max Load Quantity(cells) :
16
Battery Type :
liquid
Cycle Life :
3000 cycles
Dimension (L*W*H) :
40*152mm
Application :
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For
Model Number :
HW40152S
Weight :
460±5g, 460±5g
Operating Temperature(℃) :
-20~60°
Place of Origin :
Beijing, China
Cathode Materials :
LiFePO4
Battery Size :
40152S
Nominal Voltage :
3.2V
Warranty :
12months
Cycle life :
2000 Times
Charging cut-off voltage :
3.65 ±0.05 V
Discharge cut-off voltage :
2.5 ±0.05 V
OEM/ODM :
Yes(Accepted)
Color :
As pictures
Battery Size- :
3.2V 17Ah
Description
Product Description
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries

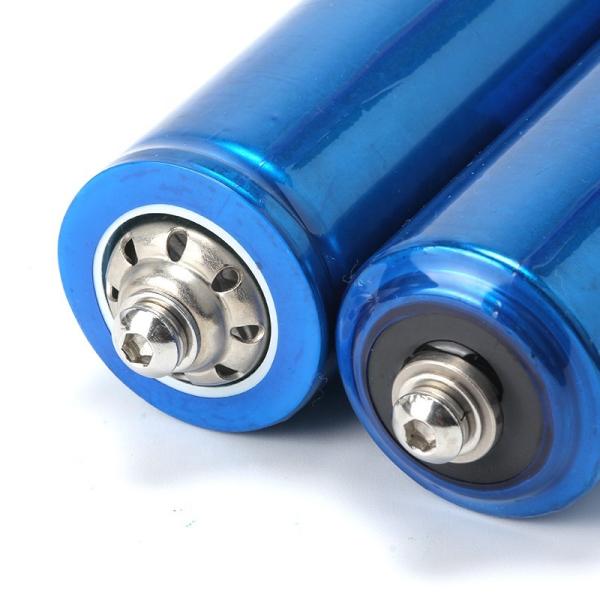

1.Our 40152S is with screws.It is convenient to connect when you are building the battery pack.
2,It is with high discharge rate and low self discharge.
3,40152S cells are widely used in electric bicycle,e-motorcycle,and e-cars.We had been the battery supplier for many manufacturers all over the world.

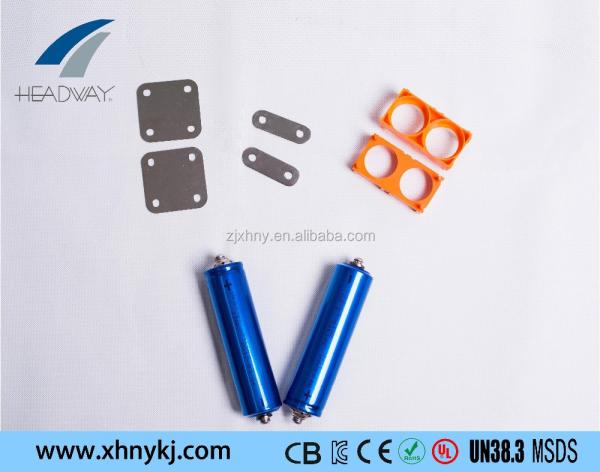

4,You can buy our single cells,meanwhile we can build the battery for you according to your voltage and capacity.And provide the BMS and box to youon the basis of your technical specification
Specification
Nominal Voltage
3.2V
Nominal Capacity(0.5C,25℃)
17Ah
Weight(Approximate)


480±5g
Discharging Current
Standard: 1C; Max Continuous: 3C; Instant(30S): 10C
Self-discharge rate
≤2% per month
1C/1C cycle life
≥2000 Times
Charging Current
Standard: 0.5C;
Max: 2C at T≥10℃
Max: 1C at 10℃≥T≥0℃;
Max: 0.1C at 0℃≥T≥-10℃

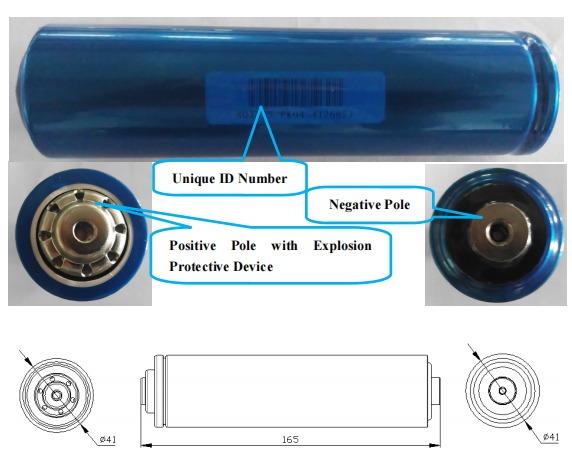

Cell Dimension
Max H: 168 mm Max Dia:41 mm
Humidity range
0～90%RH (non-condensing)
Internal resistance
≤4mOhm(AC Internal resistance 1000HZ)
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Advantage
1. Steady performance
2. Super high cycle life
3. Higher energy density
4. Safety, no explosion
5. Lighter and smaller
6. No memory effect
7. Wider operation temperature
8. Higher peak power
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Factory
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Packing & Delivery
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
