8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
Specifications
Brand Name :
Headway
Battery Size :
3.2V8ah
Battery Type :
Semi-solid state
Cycle Life :
3000 cycles
Cathode Materials :
LiFePO4
Application :
Power Tools, BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Model Number :
38120HP
Weight :
330g
Operating Temperature(℃) :
-20~60°
Place of Origin :
Zhejiang, China
Nominal voltage :
3.2V
Charging cut-off voltage :
3.65 ±0.05 V
Discharge cut-off voltage :
2.5 ±0.05 V
Warranty :
3months-1year
Internal resistance :
≤2.5mOhm
OEM/ODM :
Warmly Welcomed
Keywords :
Rechargeble Lipo Battery
normal capacity :
8000mAh
Maximum Charge Current :
10C(100A)
Maximum pulse Discharge Current :
30C(240A)
Description
Product Description
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
Nominal Capacity
8Ah @ 0.5C
Min Capacity
7.5Ah @ 1C
Nominal Voltage
3.2V
Charging cut-off voltage
3.65 ±0.05 V
Discharge cut-off voltage
2.5 ±0.05 V
Internal resistance
≤2.5mOhm
Item
Specification
Nominal Capacity
8Ah @ 0.5C
Min Capacity
7.5Ah @ 1C
Nominal Voltage
3.2V
Charging cut-off voltage
3.65 ±0.05 V
Discharge cut-off voltage
2.5 ±0.05 V
Charging Current
Standard: 3 C; Max: 10C at T≥10℃
Max: 3C at 10℃≥T≥0℃; Max: 0.1C at 0℃≥T≥-10℃
Discharging Current
Standard: 5C; Max Continuous: 15C; Instant(30S): 30C
Recommended temperature of the cell surface during charge and discharge
Charging: at 0～45℃
Discharging: at -20～60℃
The short-term maximum temperature of the cell surface during charging and discharging (in these cases charge and discharge will cause the cell cycle life to decay rapidly)

Charging: at 60℃
Discharging: at 75℃
Humidity range
0～90%RH (non-condensing)
Internal resistance
≤2.5mΩ(AC Internal resistance 1000HZ)
Cell Dimension
Max H: 136 mm Max Dia:38.5 mm
Weight
335±5g
Our 38120HP lifepo4 3.2V 8AH lithium battery widely used in Electric Vehicle, Electric Bicycle, Elctric forklift etc area which require high charge&discharge current C rate.
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells

Main Features

1) Use lifepo4 as material, voltage 3.2V, capacity 8Ah.
2) High charge & discharge current rate.
3) Lifecycle more than 2000 times.
4) Use screw integration, convenient and easy.
5) Cylindrical lifepo4 3.2V lithium battery.

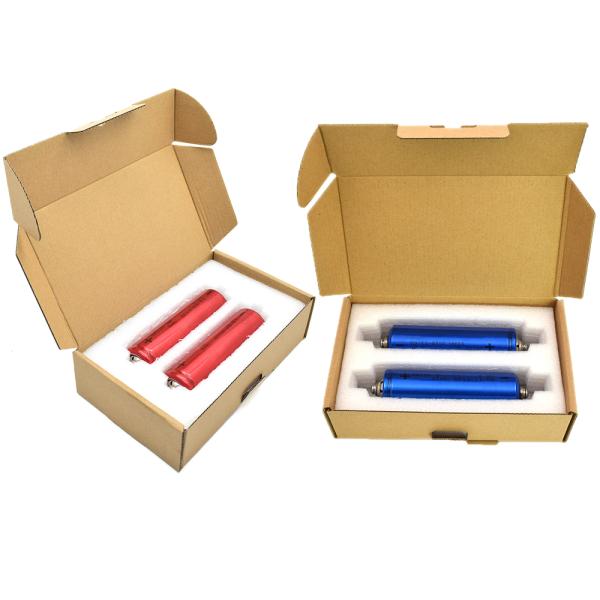

Packing & Delivery
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
Curve Table
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
Equipment
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
Certifications
8000mAh Headway Cylindrical Lifepo4 Battery Lithium Cells
