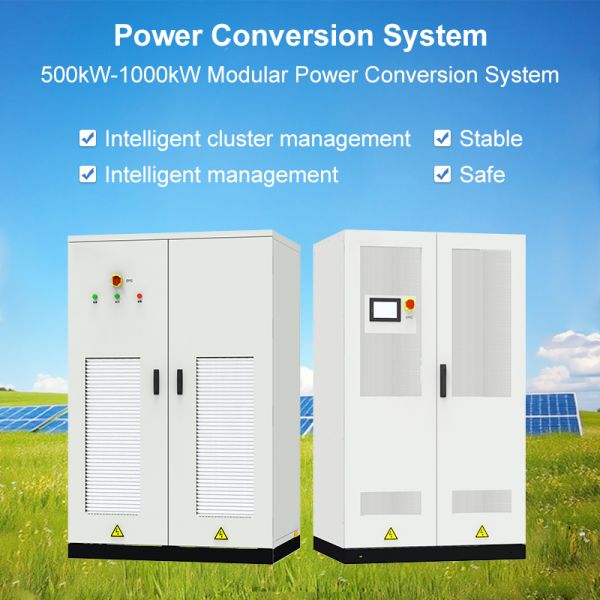

Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Energy Storage Converters 500kW 625kW 1000kW PCS Power Conversion System RS485 CAN Ethernet Communication for Smart Control
Specifications
Brand Name :
1stess
Model Number :
Monet-1000
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 containers per month
Delivery Time :
60-90 days
Packaging Details :
container
Output Frequency :
50/60Hz
Size :
1200*1000*2100mm
Communication Interface :
S485 / CAN / Ethernet
Keyword :
Power Conversion System
Protection level :
IP21(Indoor);IP55(Outdoor)
System Voltage :
580~1000 V
Description

Make up by 125kW energy storage power modules, support on-grid mode, and cluster management. The series PCS is suitable for the areas without power outage issues. Realize:

1) bidirectional conversion of DC and AC power (DC/AC module).
2) battery cluster management, higher battery utilization and higher profitability.

Model
Monet-500
Monet-625
Monet-1000
Operate voltage range
580~1000V
Full load voltage range
625~950V
Maximum DC current
800A
1000A
1600A
Adaptive battery
lithium/lead acid/Solar panel (MPPT)
On -Grid
Rated AC power
500kW
625kW
1000kW
Max.AC power
550kW
687.5kW
1100kW
Rated AC current
720A
900A
1440A
Rated AC voltage
400VaC(-15%~+10%),3W+PE/3W+N+PE
Rated AC frequency
50/60Hz±5Hz
THDi
＜3%(Linear Load)
PF adjustable range
-1(leading) ~ +1(lagging)
Off-Grid
Unbalanced load capability
100%
Overload Capacity
110%: normal operation, 120%: 1 minute
Isolation mode
0 ~ 100% (no condensation)
Noise
Non-lsolation
Ambient temperature
-25℃ to +60℃(derating above 45℃)
Cooling mode
Intelligent air-cooled
Altitude
3000m (> 3000m reduction)
Communication interface
RS485 / CAN/Ethernet
Dimensions (W * D * H)
1200*1000*2100mm
Weight (approx.)
980kg
1120kg
1280kg
Certificates
EN 61000-6-1/ EN 61000-6-2/ EN 61000-6-3
IEC 61000,IEC 62477-1:2012,IEC 61727,IEC 62116, GB /T 34120, GB /T 34133
Functional features:
Intelligent cluster management:
Each DC side module is connected to a cluster of batteries, the AC side is unified power distribution and intelligent control, there is no “barrel effect” between clusters, and the module clusters realize balanced distribution and scheduling of power through intelligent algorithms.

Stable and reliable:
Integrated power frequency isolation transformer, with strong impact resistance and higher safety, is suitable for microgrid systems that need to operate off-grid.

Intelligent management:
Equipped with self-developed intelligent management system, it can monitor the operation status of each parallel unit in real time,and realize early warning of failure, remote monitoring and intelligent scheduling, which reduces the difficulty and cost of operation and maintenance.

Safe and reliable:
If a single cluster fails, the rest of the modules can still continue to operate stably, reducing customer losses; no parallel connection on the DC side,adopting the module one cluster one management strategy, no problems such as consistency mismatch of electric cores caused by loop current.
