100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial
Specifications
Brand Name :
1stess
Model Number :
EnerArk2.0-M
Certification :
LVD
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Supply Ability :
10 containers per month
Delivery Time :
45-60 days
Packaging Details :
container
Operating Temperature :
-20°C To 50°C
Certifications :
IEC,UN,UL
Battery Type :
LiFePO4
IP protection :
IP55
Installation :
Indoor Or Outdoor
Application :
Industrial And Commerical
Warranty :
5 Years
Capacity :
107.52KWH-125.44KWH
Description

Product Features:


Plug-and-Play for ready to use.


All-in-One integrated modular design.


DC coupled for solar accessing.


Unbalanced loads operation.


Parallel operation up to 60 Nos.


Virtual Power Plant (VPP) enabled.


Auxiliary grid service application.


Complete certificate: CE (IEC 61000,IEC62619,IEC62477),UL,G99, UN3480, UN38.3.


Parameter table:

Model
EnerArk2.0-NBN-P50
EnerArk2.0-NBN-P100
DC side Parameters
Cell type
LFP-280Ah
Module model
IP20S
Battery capacity range
143.36kWh~215kWh
215kWh
AC On-Grid Side Parameters
Grid connection type
3P4W
Charging/discharging power
50kW
100kW
Rated grid voltage
AC 400V±15%
Frequency range
45Hz~55Hz
Rated AC output current
72A
144A
Power factor
0.8(Leading)~0.8(Lagging)
Harmonics
≤3%(at rated power)
AC off-grid side parameters
Load type
3P4W
Rated output power
50kW
100kW
Rated output yoltage
AC400V±1%
Rated output frequency
50Hz
Rated current
72A
144A
Frequency accuracy
0.2Hz
General Parameters
Dimensions (W*H*D)
1900mm*2100mm*1330mm
Packing size(W*H*D)
2100mm*2244mm*1500mm
Maximum weight
2500kg
Degree of protection
IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type
Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system
FM200 automatic fire extinguishing
Anti-corrosion grade
C3
Relative humidity
0-95%(non-condensing)
Operating temperature*
-20℃~50℃
Altitude**
<2000m
Noise level
≤75dB
Communication interface
RS485,Ethernet
Communication protocol
Modbus RTU,Modbus TCP/IP
Product standard warranty
5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power
30kW/60kW/90kW/120kW
MPPT voltage range
200V-850V
Number of MPPTs
1/1/2/2
Number of PV inputs
1/1/2/2
Maximum input current
100A/200A/300A/400A

Certifications
CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS
Converter:UK G99,VDE4105,EN50549
Cell:IEC62619,UL1973,UL1642,UL9540A

100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial

100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial100kW Outdoor LiFePO4 Energy Storage Cabinet IP55 Industrial


Multi-Function:

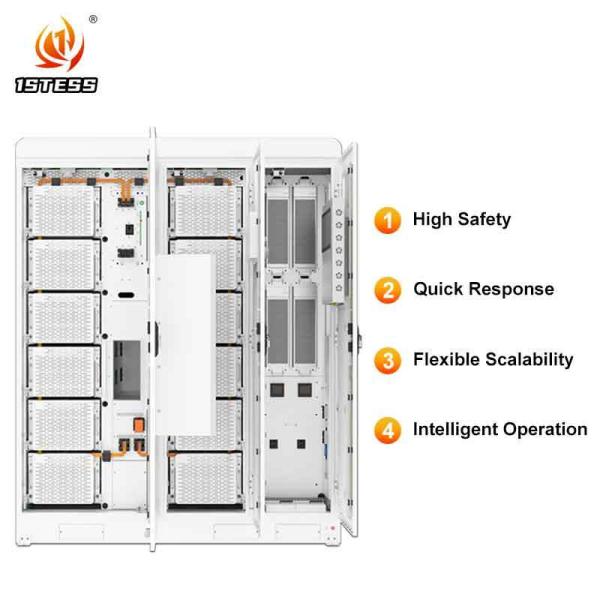

EnerArk-2.0 is a compact and Plug-and-Play batteryenergy storage system with easy to be transported,installed and maintained.lt is an All-in-One system comprises of Pcs, batteries, BMS, EMS, MPPT, automaticfire control system and temperature control system. Highperformance EV grade LiFePo4 batteries ensures highs afety and reliability with four layers of safety protectionwith intelligent BMS design. The synergy of the system components and unique design enable to achieve effective charging and discharging for various applicationswith high energy density and maximized battery life time to provide the lower Lcos. lt supports Ac Coupling and DC coupling applications with its ease in integration and suitable for all ranges of C&l energy storage projects.
