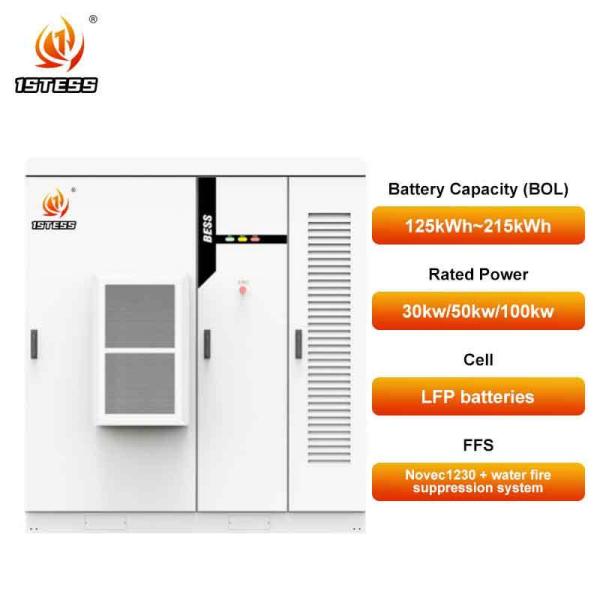

100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
100kW LiFePO4 Industrial Energy Storage Cabinet IP55
Specifications
Brand Name :
1stess
Model Number :
EnerArk2.0-M
Certification :
LVD
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Supply Ability :
10 containers per month
Delivery Time :
45-60 days
Packaging Details :
container
Operating Temperature :
-20°C To 50°C
Certifications :
IEC,UN,UL
Battery Type :
LiFePO4
IP protection :
IP55
Installation :
Indoor Or Outdoor
Application :
Industrial And Commerical
Warranty :
5 Years
Capacity :
107.52KWH-125.44KWH
Description
Product Features:
  • Plug-and-Play for ready to use.
  • All-in-One integrated modular design.
  • DC coupled for solar accessing.
  • Unbalanced loads operation.
  • Parallel operation up to 60 Nos.
  • Virtual Power Plant (VPP) enabled.
  • Auxiliary grid service application.
  • Complete certificate: CE (IEC 61000,IEC62619,IEC62477),UL,G99, UN3480, UN38.3.
Parameter table:
Model EnerArk2.0-NBN-P50 EnerArk2.0-NBN-P100
DC side Parameters
Cell type LFP-280Ah
Module model IP20S
Battery capacity range 143.36kWh~215kWh 215kWh
AC On-Grid Side Parameters
Grid connection type 3P4W
Charging/discharging power 50kW 100kW
Rated grid voltage AC 400V±15%
Frequency range 45Hz~55Hz
Rated AC output current 72A 144A
Power factor 0.8(Leading)~0.8(Lagging)
Harmonics ≤3%(at rated power)
AC off-grid side parameters
Load type 3P4W
Rated output power 50kW 100kW
Rated output yoltage AC400V±1%
Rated output frequency 50Hz
Rated current 72A 144A
Frequency accuracy 0.2Hz
General Parameters
Dimensions (W*H*D) 1900mm*2100mm*1330mm
Packing size(W*H*D) 2100mm*2244mm*1500mm
Maximum weight 2500kg
Degree of protection IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system FM200 automatic fire extinguishing
Anti-corrosion grade C3
Relative humidity 0-95%(non-condensing)
Operating temperature* -20℃~50℃
Altitude** <2000m
Noise level ≤75dB
Communication interface RS485,Ethernet
Communication protocol Modbus RTU,Modbus TCP/IP
Product standard warranty 5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power 30kW/60kW/90kW/120kW
MPPT voltage range 200V-850V
Number of MPPTs 1/1/2/2
Number of PV inputs 1/1/2/2
Maximum input current 100A/200A/300A/400A
Certifications CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A
100kW LiFePO4 Industrial Energy Storage Cabinet IP55100kW LiFePO4 Industrial Energy Storage Cabinet IP55 100kW LiFePO4 Industrial Energy Storage Cabinet IP55 100kW LiFePO4 Industrial Energy Storage Cabinet IP55 100kW LiFePO4 Industrial Energy Storage Cabinet IP55
Multi-Function:

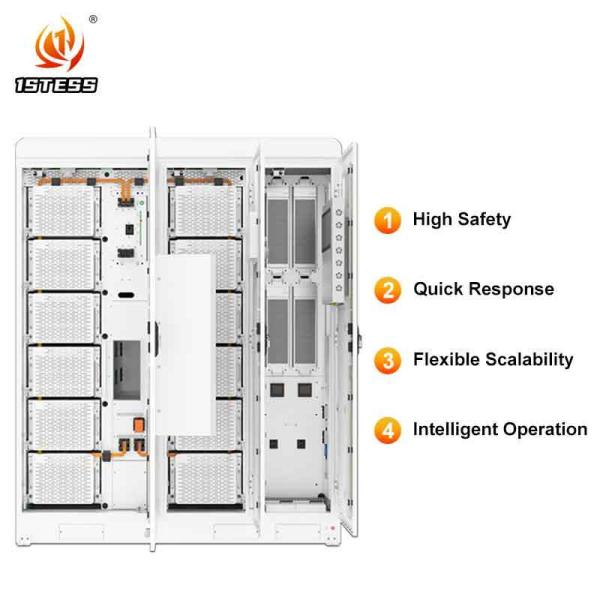

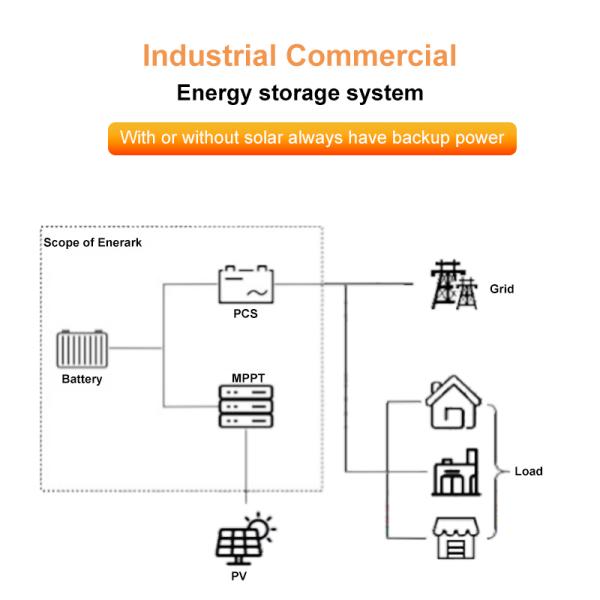

EnerArk-2.0 is a compact and Plug-and-Play battery energy storage system with easy to be transported, installed and maintained. It is an All-in-One system comprises of Pcs, batteries, BMS, EMS, MPPT, automatic fire control system and temperature control system. High performance EV grade LiFePo4 batteries ensures high safety and reliability with four layers of safety protection with intelligent BMS design. The synergy of the system components and unique design enable to achieve effective charging and discharging for various applications with high energy density and maximized battery life time to provide the lower Lcos. It supports Ac Coupling and DC coupling applications with its ease in integration and suitable for all ranges of C&l energy storage projects.
