Specifications
Model Number :
EnerCube
Price :
negotiable
Container Size :
20ft
Supply Ability :
10 containers per month
Monitoring System :
Remote Monitoring And Control
Warranty :
5 Years
Payment Terms :
L/C,T/T
Voltage Range :
400-800V
Application :
Power Grid Stabilization And Peak Shaving
MOQ :
1
Delivery Time :
60-90 days
Battery Capacity :
Negotiable
Packaging Details :
container
Place of Origin :
China
Certification :
1
Brand Name :
1stess
Description

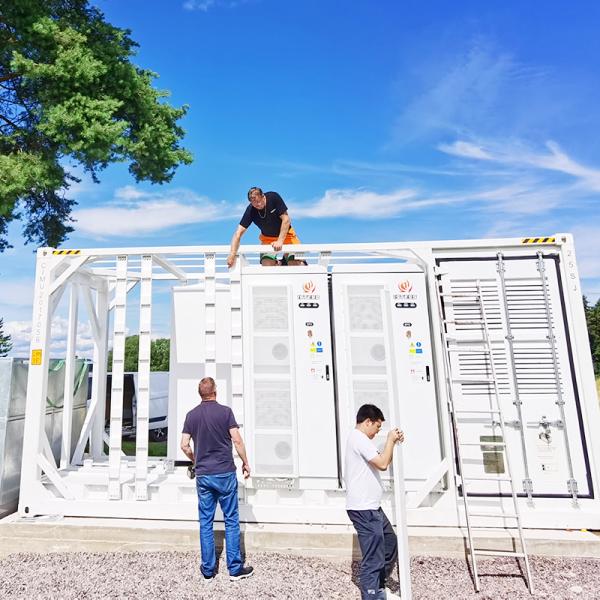

20HQ Containerized Battery Energy Storage System
All-in-One Container Solution: Complete BESS in standard 20HQ container with 5-year warranty extendable to 10 years. Features 400V output, 3P4W+PE configuration, and Ethernet connectivity.
Key Features & Benefits
  • Complete Integration: Battery PACK, PCS, PDU, fire suppression, temperature control, and intelligent monitoring in one container
  • Rapid Deployment: Plug-and-play modular design with battery-integrated transport reduces installation time and costs
  • Enhanced Safety: Independent cluster management with thermal isolation between clusters for safe maintenance
  • Smart Monitoring: Proprietary platform with patented anti-flame leakage technology for fault prediction and location
  • Wide Operating Range: -20℃ to 50℃ temperature range, up to 2000m altitude capability
  • Global Compliance: Comprehensive certifications including UN3536, UL1973, IEC62619, G99 standards
  • Continuous Support: 24/7 online monitoring with round-the-clock remote operations and maintenance
System Specifications
Modular Design Standard 20HQ container with flexible configuration options
AC/DC Coupling Supports both AC and DC coupling configurations
Protection Rating Battery cabinet: IP55, Electrical room: IP34 (outdoor installation)
Anti-corrosion Grade C3
Cooling Method Battery cabinet: HVAC; Electrical room: forced air cooling
Fire Fighting System FAS + FM200/Novoc1230
Noise Emission ≤75dB
Communication Ethernet, Modbus TCP/IP
Performance Specifications
Energy Capacity Range 860kWh ~ 1720kWh (BOL)
Rated Output Power 400kW ~ 800kW
Rated Voltage AC400V, 3P4W+PE
Frequency 50/60Hz ±5%
Harmonic Distortion <3% (@ rated power)
Overload Capacity 110% for 10 min, 120% for 60 s
Warranty 5 years (extendable to 10 years)
Model Comparison
Parameter / Model P400C860 P500C1075 P600C1290 P700C1505 P800C1720
DC Side Parameters
Cell type & capacity LiFePO₄-280Ah
Battery module type 1P20S
System configuration 4*1P240S 5*1P240S 6*1P240S 7*1P240S 8*1P240S
Capacity (BOL) 860kWh 1075kWh 1290kWh 1505kWh 1720kWh
AC Side Parameters
Grid type 3P4W+PE
Rated output power 400kW 500kW 600kW 700kW 800kW
Rated voltage AC400V
Rated frequency 50/60(±5)Hz
Maximum output current 577A 722A 866A 1010A 1155A
General Specifications
Isolation transformer No
Operation temperature -20℃ to 50℃
Relative humidity 0-95% (non-condensing)
Permissible altitude <2000m
Dimension (W*D*H) 20HQ container (6058mm * 2438mm * 2896mm)
Maximum weight 24500kg
Certifications & Standards
System UN3536, LVD, EMC, RoHS
Cell IEC62619, UL1973, UL9540A
PACK UN38.3
PCS G99, EN50549, AS4777.2, VDE4105
