Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
Specifications
Model Number :
EnerCube
Warranty :
5 Years
Payment Terms :
L/C,T/T
Voltage Range :
400-800V
Application :
Power Grid Stabilization And Peak Shaving
Price :
negotiable
Container Size :
20ft
Supply Ability :
10 containers per month
Monitoring System :
Remote Monitoring And Control
MOQ :
1
Delivery Time :
60-90 days
Battery Capacity :
Negotiable
Place of Origin :
China
Packaging Details :
container
Certification :
1
Brand Name :
1stess
Description
Standard 20HQ Container Energy Storage System
Integrated PCS, PDU, FFS, TCS, IMS with Modbus TCP/IP Remote Communication
Product Overview
A complete all-in-one energy storage solution integrating battery PACK, PCS, PDU, fire suppression, temperature control, and intelligent monitoring into a single 20HQ standard container for rapid deployment and reliable operation.
Key Features
  • All-in-One Integration: Complete system integration in standard 20HQ container
  • Plug-and-Play Deployment: Modular design with battery-integrated transport reduces installation time and costs
  • Independent Cluster Management: Single cluster per cabinet with thermal isolation for safe maintenance
  • Smart O&M & Fault Prediction: Proprietary platform with patented anti-flame leakage technology
  • Wide Environmental Adaptability: Operating range -20℃ to 50℃, altitude up to 2000m
  • International Certifications: Meets UN3536, UL1973, IEC62619, G99 and other standards
  • 24/7 Monitoring: Round-the-clock remote operation and maintenance support
System Specifications
Energy Capacity Range 860kWh - 1720kWh (BOL)
Rated Output Power 400kW - 800kW
Rated Voltage AC400V, 3P4W+PE
Frequency 50/60Hz ±5%
Harmonic Distortion <3% (@ rated power)
Overload Capacity 110% for 10 min, 120% for 60 s
Warranty 5 years (extendable to 10 years)
Technical Parameters
Model Specifications
Parameter P400C860 P500C1075 P600C1290 P700C1505 P800C1720
DC Side Parameters
Cell Type & Capacity LiFePO₄-280Ah
Battery Module Type 1P20S
System Configuration 4*1P240S 5*1P240S 6*1P240S 7*1P240S 8*1P240S
Capacity (BOL) 860kWh 1075kWh 1290kWh 1505kWh 1720kWh
AC Side Parameters
Grid Type 3P4W+PE
Rated Output Power 400kW 500kW 600kW 700kW 800kW
Rated Voltage AC400V
Rated Frequency 50/60(±5)Hz
Maximum Output Current 577A 722A 866A 1010A 1155A
General Parameters
Isolation Transformer: No
Protection Level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)
Anti-corrosion Grade: C3
Operation Temperature: -20℃ to 50℃
Relative Humidity: 0-95% (non-condensing)
Permissible Altitude: <2000m
Cooling Method: Battery cabinet: HVAC, Electrical room: forced air cooling
Fire Fighting System: FAS & FM200/Novec1230
Noise Emission: ≤75dB
Dimensions: 6058mm × 2438mm × 2896mm (20HQ container)
Maximum Weight: 24500kg
Communication Interface: Ethernet
Communication Protocol: Modbus TCP/IP
Certifications
System: UN3536, LVD, EMC, RoHS
Cell: IEC62619, UL1973, UL9540A
PACK: UN38.3
PCS: G99, EN50549, AS4777.2, VDE4105

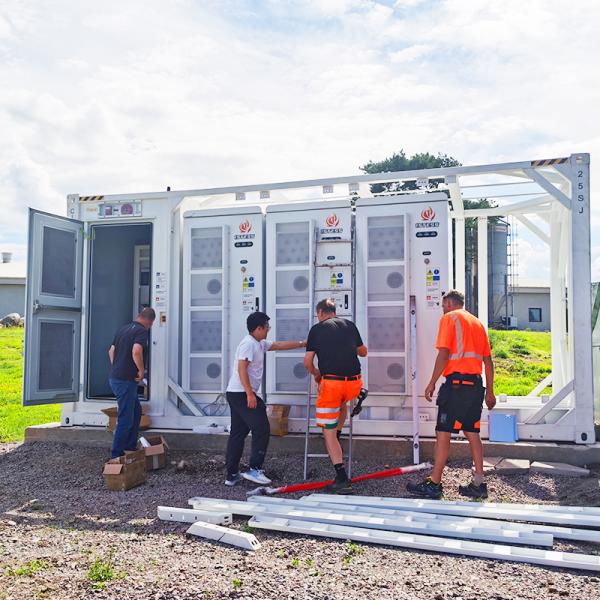

Product Images
Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication Standard 20HQ Container Energy Storage System Integrated PCS PDU FFS TCS IMS Modbus TCP/IP Remote Communication
