CR2032/2025/2016 Coin Cell Assembly Machine Plant For Lab Scale Lithium-Ion Battery Research
CR2032/2025/2016 Coin Cell Assembly Machine Plant For Lab Scale Lithium-Ion Battery Research
Specifications
Description
CR2032/2025/2016 Coin Cell Assembly Machine Plant For Lab Scale Lithium-Ion Battery Research

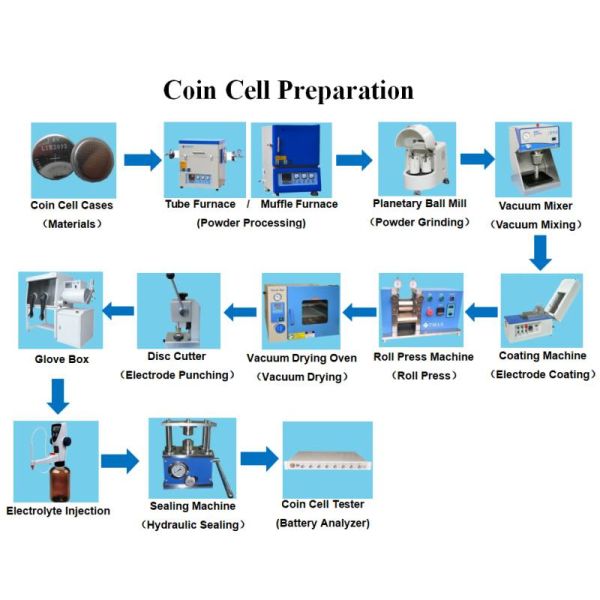

Process Overview
CR2032/2025/2016 Coin Cell Assembly Machine Plant For Lab Scale Lithium-Ion Battery Research
Pouch Cell Lab Line Flow Chart:
Process Item Product Name Description
Powder processing Furnace Muffle Furnace/Tube Furnace/Atmosphere Muffle Furnace...
Slurry vacuum mixing Mixer Compact Vacuum Mixer With Vibration Stage & Two Containers (125 & 500ml) With 125ml and 500ml stainless steel container, Rotary Speed: 0-320rpm
Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container Dual-Shaft, 500ml container, Rotary Speed: 0-600rpm
Electrode coating Coater Laboratory Heat Vacuum Film Applicator Tape Casting Coating Machine With Dryer Effective coating area: 100*250mm, 200*300mm, 250*550mm, 250*800mm. Coating size can be customized
Micrometer Adjustable Film Applicator With Digital Display With digital gauge, coating width: 100mm (width can be customized)
Lab Bar Coater Without Heating & Vacuum Function Bar coating, coating width: 300mm
Electrode pressing Calender Machine 100-400mm Width Heat Roller Press Machine With Variable Speed Max. heating temp. up to 150°C (can be customized to 170°C); electric type. Roller sizes: 100*100mm, 100*200mm, 100*300mm, 100*400mm
Lab Small Manual Calender Rolling Machine Manual type, without heating function. Roller sizes: 100*100mm, 100*200mm, 100*300mm, 100*400mm
Electrode cutting Die cutter Hand operated disc punching machine Suitable for electrode or separator cutting, with various sizes of cutting dies
Electrolyte injection Electrolyte filing machine Battery Electrolyte Filling Machine for Filling Electrolyte 50ml, manual operation, with digital display
Battery sealing Coin cell crimper (also can be used as a disassembling machine) Hydraulic crimping machine Manual type, with one set die, crimping/disassembling is selectable
Pneumatic crimping machine Manual type, with one set die, crimping/disassembling is selectable
Electric crimping machine Automatic type, with one set die, crimping/disassembling is selectable
Battery performance testing Battery tester 5V50mA 8 Channels Lithium Ion Battery Tester Three range tester: Range1: 5μA~1mA; Range2: 1mA~25mA; Range3: 25mA~50mA
