Specifications
Brand Name :
COENG
Payment Terms :
MoneyGram,Western Union,T/T,D/A,D/P,L/C
Description

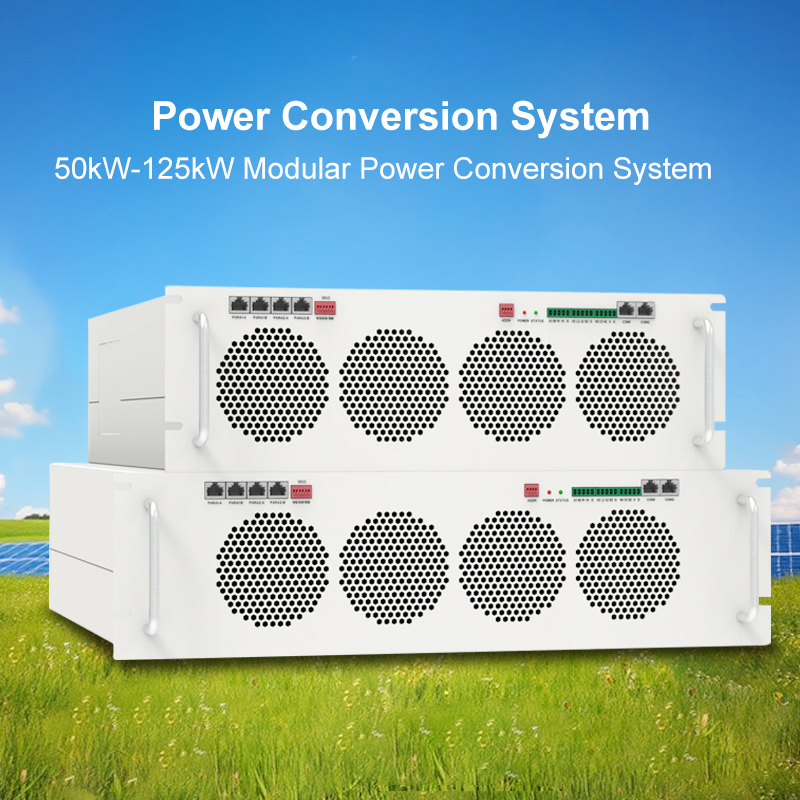

IP20 500-1000V Protected Compact 110A 50kW Power Conversion System Energy Storage Converters
IP20 500-1000V Protected Compact 110A 50kW Power Conversion System Energy Storage Converters
Technical Specifications
Model Monet-50AC Monet-125AC Monet-125AC(IP65) Monet-125AC(HVB)
DC voltage operating range 500~1000V 580~1000V 580~1000V 580~1000V
DC side full load voltage range 500~950V 625~950V 625~950V 625~950V
Max. DC current 110A 200A 200A 200A
AC Parameters
Rated power 50kW 125kW 125kW 125kW
Max. power 55kW 137.5kW 137.5kW 137.5kW
Rated AC current 72A 180A 180A 180A
Rated AC voltage 400Vac, 3W+N+PE/3W+PE
Rated frequency 50/60Hz (±5Hz)
THDi <3% (rated power)
PF adjustment range -1 (leading) ~ +1 (lagging)
Unbalanced load capacity 100%, three phase independent control
Overload capacity 110% normal operation; 120% 1 minute
Adaptive battery lithium/lead acid/Solar panel (MPPT)
General Parameters
Isolation method Non-isolation
Altitude 3000m (>3000m derating)
Operating temperature -25~60°C (Derating above 45°C)
Cooling mode Forced air-cooling
Relative humidity 0~100% (No condensation)
Communication mode RS485/CAN 2.0/Ethernet/dry contact
Max. conversion efficiency 98.50% 98.20% 98.20% 98.20%
Protection level IP20 IP20 IP20 IP20
Dimension (W*D*H) 440*600*150mm 520*680*245mm 600*750*245mm 650*680*245mm
Weight (approx) 32kg 55kg 69kg 67kg
Functional Features
  • High-efficiency three-level topology
  • Modular design, flexible scalability
  • Imported IGBT, ensure high performance and stability

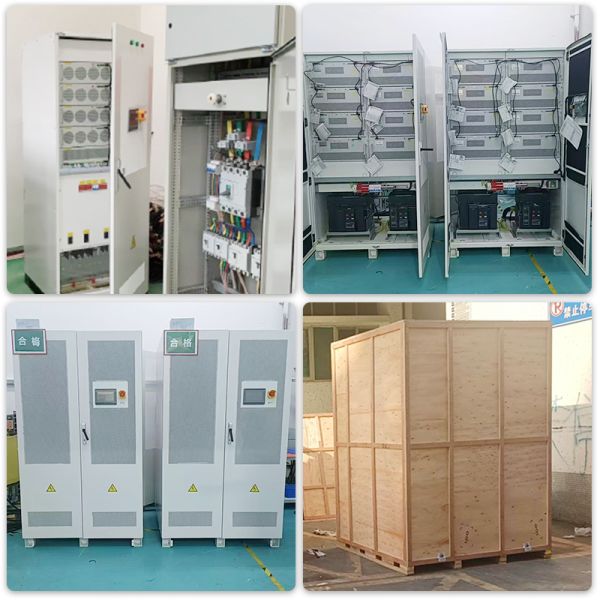

  • Indoor and outdoor cabinet types are selectable
  • Supports modular cluster-based management
