Integrated Outdoor Battery Energy Storage Cabinet
Integrated Outdoor Battery Energy Storage Cabinet
Integrated Outdoor Battery Energy Storage Cabinet
Integrated Outdoor Battery Energy Storage Cabinet
Specifications
Brand Name :
COENG
Model Number :
EnerCube2.0
Place of Origin :
China
Payment Terms :
MoneyGram,Western Union,T/T,D/A,L/C,D/P
ESS container :
10ft/20ft/40ft
Battery Type :
LiFePO4
Cooling :
Air Cooling
Technical Support :
Send Engineer Team
Description

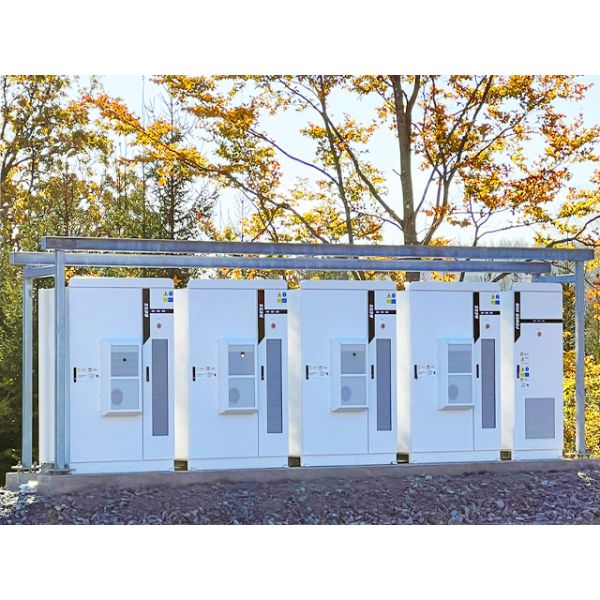

Integrated Outdoor Battery Energy Storage Cabinet

Product Description:

EnerA rk2.0-M is a compact and Plug-and-Play battery energy storage system with easy to be transported, installed and maintained.

It is an All-in-One system comprises of PCS, batteries, BMS, EMS, MPPT, automatic
fire control system and temperature control system.

Product parameters:
Model EnerArk2.0-M-NBN-P30 EnerArk2.0-M-NBN-P50
Battery Parameters
Battery cell model LiFePO₄-280Ah
Module model P20S
Battery capacity range 107.52kWh~125.44kWh
AC On-Grid Side Parameters
Grid connection type 3P4W
Charging/discharging power 30kW 50kW
Rated grid voltage AC 400V
Grid voltage range ±15%
Frequency range 50±5Hz
Rated AC output current 43A 72A
Power factor 0.8(Leading)～0.8(Lagging)
Harmonics ≤3%(at rated power)
AC Off-Grid Side Parameters
Grid connection type 3P4W+PE
Rated output power 30kW 50kW
Frequency 50±0.2Hz
Voltage accuracy 1%
General Parameters
Dimensions(W*H*D) 1400mm*2100mm*1230mm
Packing size(W*H*D) 1600mm*2244mm*1500mm
Maximum weight About 1660kg
Degree of protection IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type Battery Cabinet(air conditioner)&
Electrical Cabinet(forced air cooling)
Fire fighting system FM200 automatic fire extinguishing
Altitude** <2000m
Operating temperature* -20℃~50℃
Noise level ≤75dB
Communication interface RS485,Ethernet
Communication protocol Modbus RTU,Modbus TCP/IP
Product standard warranty 5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters(Optional)
Maximum PV input power 30kW/60kW 30kW/60kW/90kW/120kW
MPPT voltage range 200V-850V
Number of PV inputs 1/1 1/1/2/2
Maximum input current 100A/200A 100A/200A/300A/400A
Certifications System:UN3480,;
Battery:IEC62619,UL1973,UL1642,UL9540A;
PACK:IEC62619,UN38.3;
PCS:IEC62477,EN50549,VDE4105,G99 by ENA,AS4777.2
