• Processor and Storage: Equipped with a 792MHz Cortex®-A7 processor, 512MB DDR3 memory and 4GB eMMC storage, ensuring efficient data processing and local storage capabilities.
• Rich Interfaces:Digital Input/Output (DI/DO): Supports multiple isolated DI (dry/wet nodes) and relay/high-low side drive DO, meeting the switching control requirements of industrial equipment.
• Communication Interfaces:Integrated 2 Gigabit Ethernet, 3 isolated CAN-bus, 4 isolated RS485, compatible with BMS (battery management system), PCS (energy storage converter) and other devices' communication protocols.

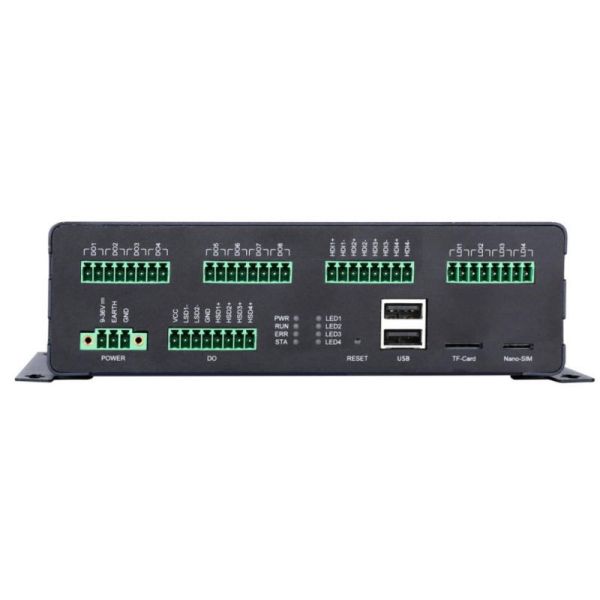

• Expansion Interfaces: Equipped with USB-HOST, TF card, Nano-SIM (supporting 4G communication), supporting local data storage and remote transmission.
• Analog Input Acquisition (ADC): 4 independent channels, supporting 0-10V voltage or 0-20mA current acquisition, with an accuracy of ≤1%, suitable for sensor data acquisition.
• Industrial-grade Protection: Working temperature range -40℃~+60℃, supports wide voltage supply (DC 12~24V), has hardware watchdog and power-off endurance functions, adaptable to harsh industrial environments.

• System Support: Compatible with RT-Linux, Ubuntu, etc. Operating systems, with rich drivers (such as CAN, RS485, USB, etc.), supporting IEC-61850 and other industrial protocols.
• Edge Computing: Can complete data cleaning, threshold judgment (such as equipment anomaly alarm) and other preprocessing locally, reducing cloud load and improving response efficiency.
• Remote Management: Supports Web configuration, firmware remote upgrade and PLC program download, combined with 4G network to achieve cross-regional equipment operation and maintenance.

Mainly used in industrial and commercial energy storage systems, can be used as battery cluster management unit (BAU) or data acquisition gateway, achieving centralized monitoring and energy management of batteries, converters, meters, etc.; can also be expanded to industrial control, energy monitoring and other fields, breaking the communication isolation of equipment, helping industrial digital transformation.

Product parameters
