Specifications
Brand Name :
COENG
Model Number :
EnerCube3.0
Place of Origin :
China
Payment Terms :
MoneyGram,Western Union,T/T,D/A,L/C,D/P
ESS container :
10ft/20ft/40ft
Battery Type :
LiFePO4
Cooling :
Air Cooling
Technical Support :
Send Engineer Team
Description

Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container

Product Description:

EnerCube3.0 Container Battery Energy Storage System adopts an All-in-One modular design, integrating the battery PACK, intelligent energy storage converter (PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), and temperature control system (TcS), intelligent monitoring system (IMS), etc.are integrated into one, and the 20HQ standard container design is adopted, which saves application space and facilitates transportation, hoisting, installation and maintenance.

Product parameters:
Type P400C860 P500C1075 P600C1290 P700C1505 P800C1720
DC side parameters
Cell type &capacity LiFePO₄-280Ah
Battery module type 1P20S
System configuration 4*1P240S 5*1P240S 6*1P240S 7*1P240S 8*1P240S
Capacity(BOL) 860kWh 1075kWh 1290kWh 1505kWh 1720kWh
AC side parameters
Grid type 3P4W+PE
Rated output power 400kW 500kW 600kW 700kW 800kW
Rated voltage AC400V
Rated frequency 50/60(±5)Hz
Maximum output current 577A 722A 866A 1010A 1155A
Harmonics <3%(@rated power)
Overload capacity 110%,10mins;120%,60s
General parameters
Isolation transformer No

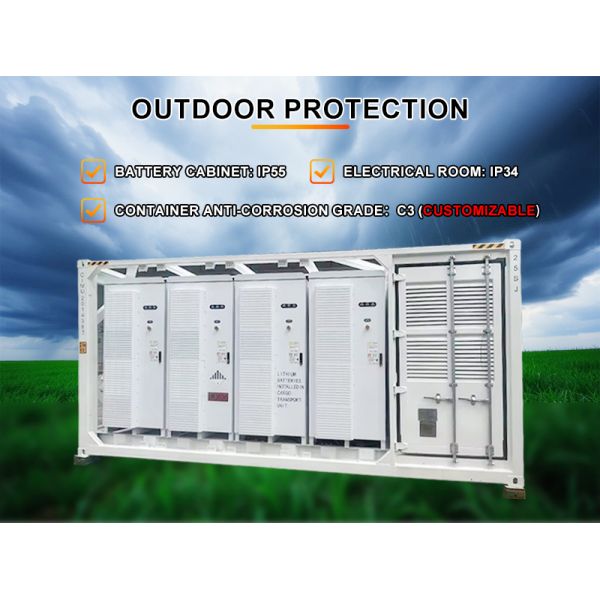

Protection level Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade C3
Operation temperature* -20℃~50℃
Relative humidity 0~95%(non-condensing)
Permissible altitude** <2000m
Cooling method Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system FAS &FM200/Novec1230
Noise emission ≤75dB
Dimension (W*D*H) 20HQ container (6058mm*2438mm*2896mm)
Maximum weight 24500kg
Communication interface Ethernet
Communication protocol Modbus TCP/IP
Warranty 5 years (can be extended to 10 years)Warranty
Certification System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3
PCS:G99,EN50549,AS4777.2,VDE4105

Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System ContainerContainer BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System ContainerContainer BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container

Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System ContainerContainer BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container

Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System ContainerContainer BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container


Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container

Container BESS Solar Battery Energy Storage Lithium System 1MWH LifePO4 Battery Energy Storage System Container
