Specifications
Brand Name :
COENG
Model Number :
EnerCube2.0
Place of Origin :
China
Payment Terms :
MoneyGram,Western Union,T/T,D/A,L/C,D/P
ESS container :
10ft/20ft/40ft
Battery Type :
LiFePO4
Cooling :
Air Cooling
Technical Support :
Send Engineer Team
Description

All in One BESS Solution 143.36kwh-215kwh Cabinet Energy Storage System Air Cooling Industrial Commercial Energy Storage

Product Description:

EnerArk-2.0 is a compact and Plug-and-Play battery energy storage system with easy to be transported, installed and maintained.

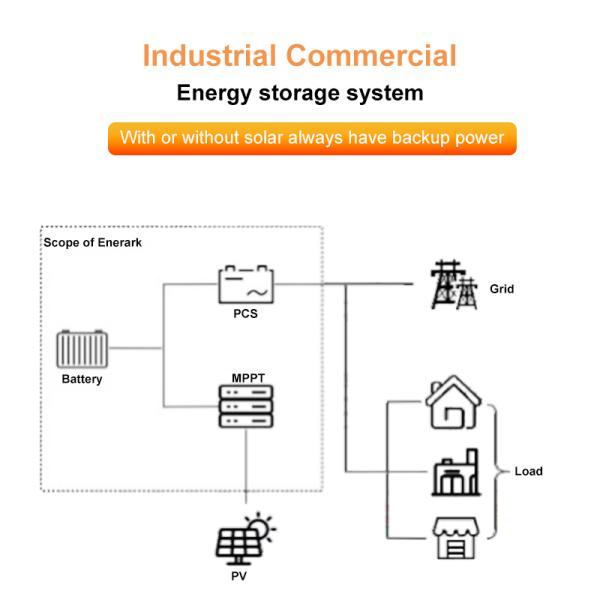

It is an All-in-One system comprises of PCS, batteries, BMS, EMS, MPPT, automatic fire control system and temperature control system.

Product parameters:

Model
NBN-P30
NBN-P50
NBN-P100
DC side Parameters
Cell type
LFP-280Ah
Module model
IP20S
Battery capacity range
143.36kWh~215kWh
143.36kWh~215kWh
215kWh
AC On-Grid Side Parameters
Grid connection type
3P4W
Charging/discharging power
30kW
50kW
100kW
Rated grid voltage
AC 400V±15%
Frequency range
45Hz~55Hz
Rated AC output current
43A
72A
144A
Power factor
0.8(Leading)~0.8(Lagging)
Harmonics
≤3%(at rated power)
AC off-grid side parameters
Load type
3P4W
Rated output power
30kW
50kW
100kW
Rated output yoltage
AC400V±1%
Rated output frequency
50Hz
Rated current
43A
72A
144A
Frequency accuracy
0.2Hz
General Parameters
Dimensions (W*H*D)
1900mm*2100mm*1330mm
Packing size(W*H*D)
2100mm*2244mm*1500mm
Maximum weight
2500kg
Degree of protection
IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type
Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system
FM200 automatic fire extinguishing
Anti-corrosion grade
C3
Relative humidity
0-95%(non-condensing)

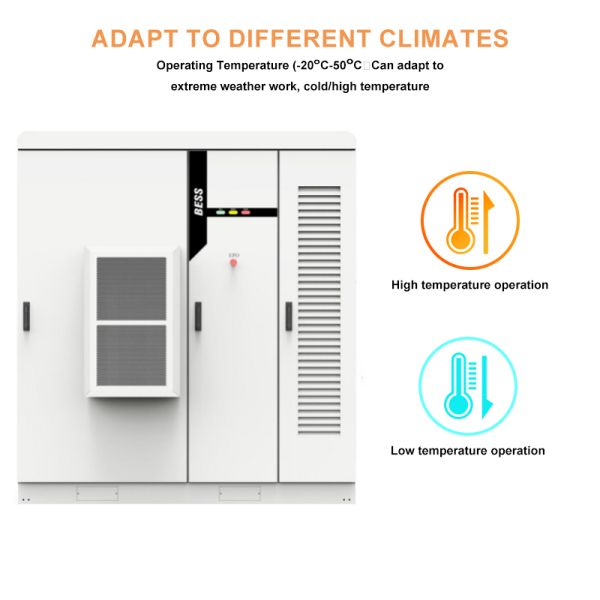

Operating temperature*
-20℃~50℃
Altitude**
<2000m
Noise level
≤75dB
Communication interface
RS485,Ethernet
Communication protocol
Modbus RTU,Modbus TCP/IP
Product standard warranty
5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power
30kW/60kW
30kW/60kW/90kW/120kW
MPPT voltage range
200V-850V
200V-850V
Number of MPPTs
1/1
1/1/2/2
Number of PV inputs
1/1
1/1/2/2
Maximum input current
100A/200A
100A/200A/300A/400A

Certifications
CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS
Converter:UK G99,VDE4105,EN50549
Cell:IEC62619,UL1973,UL1642,UL9540A
