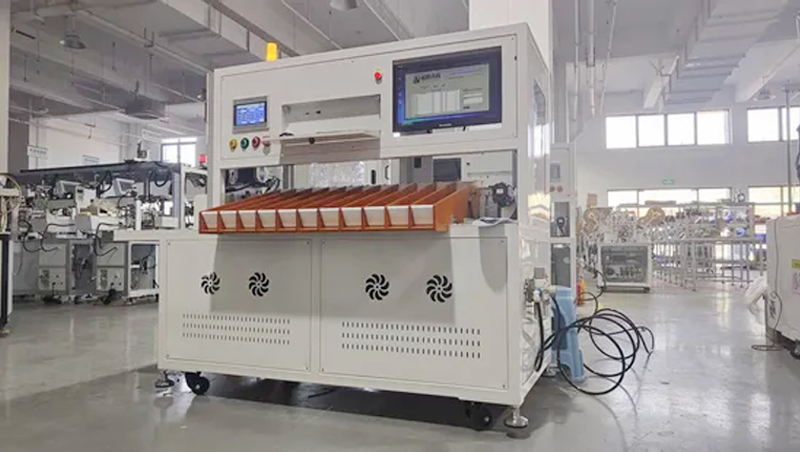

11channels Cylindrical Cell Sorter
11 Channel Sorting Machine
The 18650 battery 11 channel sorting machine is designed for voltage and internal resistance testing and sorting of 18650 battery cells from manufacturing facilities. This advanced sorting system features modular electrical controls for high integration, excellent versatility, and easy maintenance.
Key Features
  • Stepper motor controlled actuators for high precision and reliable operation
  • 11 receiving slots with customizable voltage and internal resistance settings
  • High sorting efficiency with accurate cell placement based on preset parameters
  • Silo-type loading system with automatic cylinder material distribution
  • Manual material collection with automated 18650 cell sorting process
Technical Specifications
  • Input Power: Single phase 220 V/50 Hz
  • Dimensions: 1800 mm (L) × 800 mm (W) × 1400 mm (H)
  • Air Pipe Connection: 10 mm outer diameter
  • Air Source Pressure: 0.4-0.6 MPa
  • Machine Weight: 290 kg
  • Power Consumption: 0.5 kW
