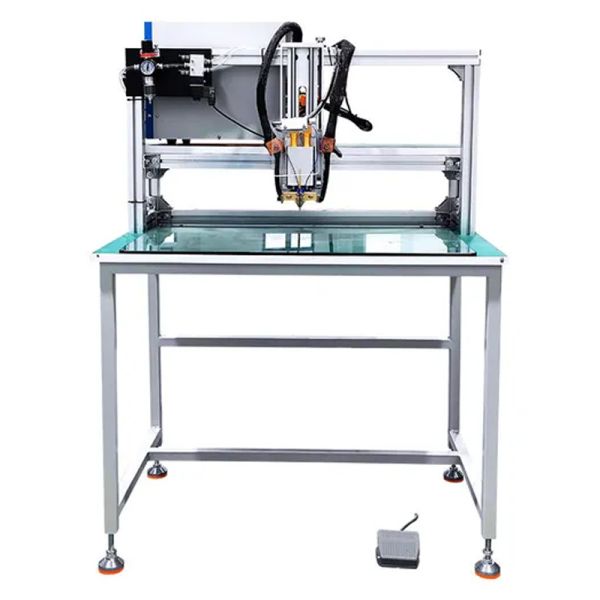

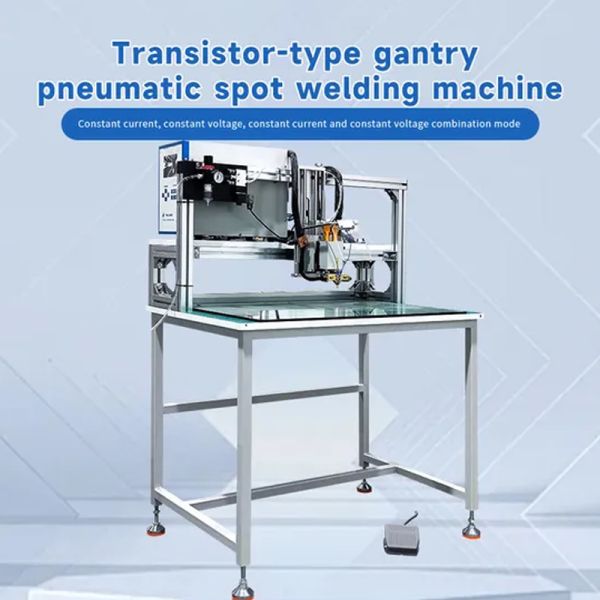

Transistor Gantry Pneumatic Spot Welding Machine for 21700 & 18650 Battery Cells
Spot Welding Machine Spot Welder For21700 And18650 Batterycells
Key Features & Benefits
  • Transistor power supply provides extremely fast welding current rise rate for rapid process completion
  • Minimal heat affected zone with no splatter during welding process
  • Ideal for ultra-precision welding applications including fine wire, button cell battery connectors, relay contacts, and metal foil
  • Three control modes: constant current, constant voltage, and combination of both
  • Large LCD display shows welding current, power, and electrode voltage
  • Built-in detection function verifies workpiece status before power-on

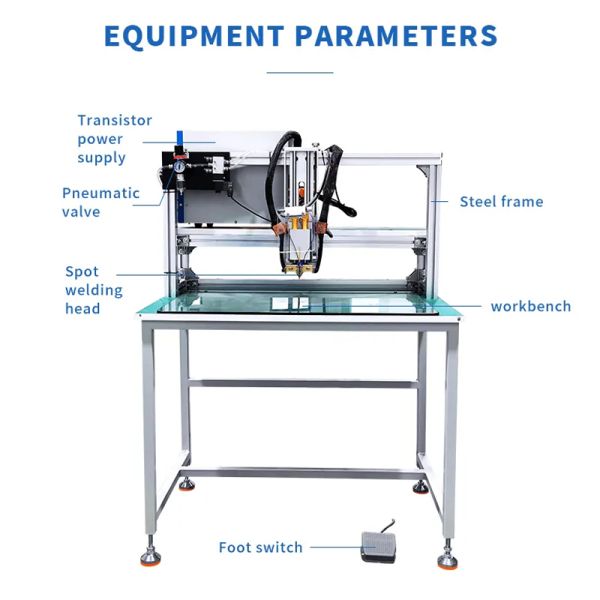

Technical Specifications
Model SKXD-50
Supply Voltage 220V/380V 50Hz
Welding Time 1.0ms-20.0ms Adjustable
Maximum Output Power 25 KVA
Air Pressure 0.5-0.6MPa
Maximum Short Circuit Current 5000A
Nickel Thickness Range 0.08 mm - 0.3 mm
Welding Voltage 80.0-330V Adjustable, Accuracy 0.5V
Machine Dimensions 350×180×280mm
Weight 50Kg
Please inform us of your specific nickel thickness requirements, and we will recommend the most suitable machine for your application. We provide professional one-stop solutions including complete equipment for battery pack assembly lines.
Contact us today to discuss your spot welding needs and receive our best service.
