Specifications
Description
Cylindrical Power Battery Sorter and Tester for 18650 & 21700 Lithium Ion Cells
Advanced Battery Sorting Solution
This 13-channel battery sorting machine is specifically designed for voltage and internal resistance testing of 18650 cylindrical battery cells. The system features modular electrical controls with high integration, excellent versatility, and easy maintenance capabilities.
Key Features & Benefits
  • 13-channel sorting capacity with customizable voltage and internal resistance settings
  • Stepper motor controlled actuators for high precision and reliable operation
  • High sorting efficiency up to 3,500 pieces per hour
  • Automated silo-type loading with cylinder-based material distribution
  • Precise battery routing to designated slots based on preset parameters
  • Manual collection system with automated material handling

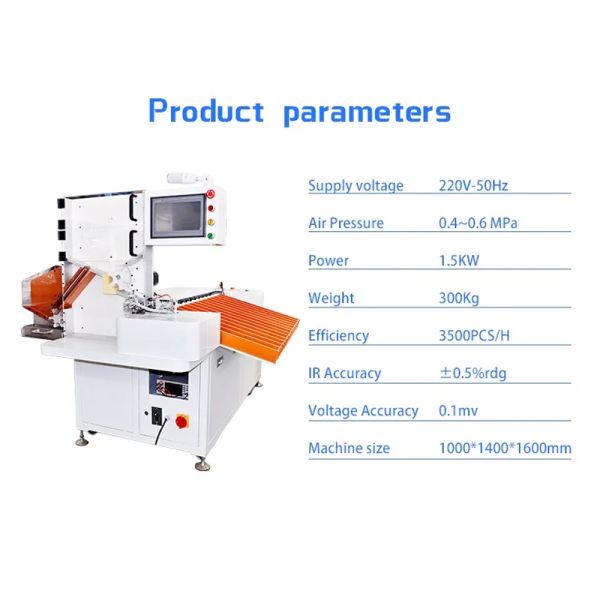

Technical Specifications
Place of OriginGuangdong, China
Brand NameJXC/TWSL
ConditionNew
Weight200 KG
Core ComponentsPLC, Motor
Warranty1 Year
Applicable IndustriesManufacturing Plant, Machinery Repair Shops, Energy & Mining
ApplicationCylindrical Battery Sorting
Voltage220V 50HZ
Size1800×800×1400mm
Power Supply1.5KW
Working Efficiency3500 PC/H
Minimum Order Quantity1 Set
CertificationCE ROHS
Key AdvantageHigh Efficiency, Low Cost
Quality Assurance
This equipment includes video outgoing-inspection services and machinery test reports to ensure optimal performance and reliability.
