11channels Cylindrical Cell Sorter
11 Channel Sorting Machine

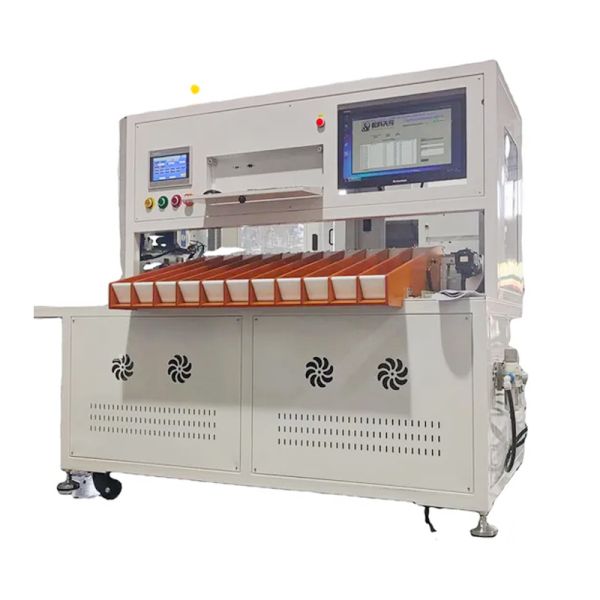

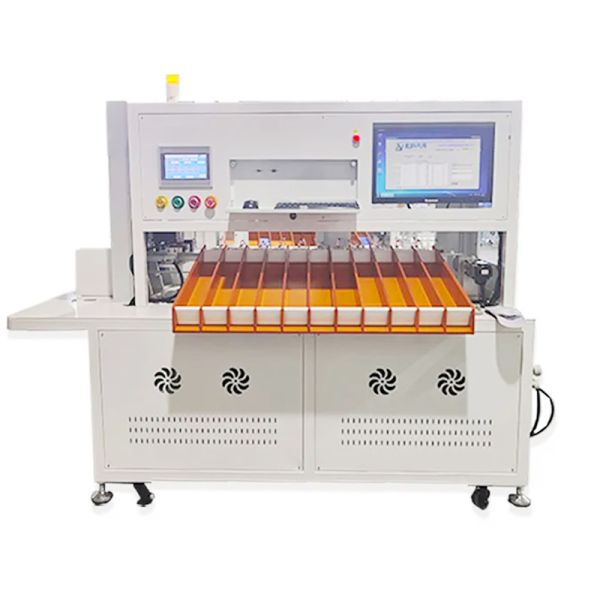

The 18650 battery 11 channel sorting machine is designed for precise voltage and internal resistance sorting tests of 18650 battery cells from manufacturing facilities.
Key Features
  • Modular electrical control system with high integration and easy maintenance
  • Stepper motor actuator for high precision and reliable operation
  • 11 receiving slots with customizable voltage and internal resistance settings
  • High sorting efficiency with accurate cell placement based on preset parameters
  • Silo-type loading with automatic cylinder material division
  • Manual material collection with automated 18650 cell sorting process
Technical Specifications
Input Power: Single phase 220 V/50 Hz
Dimensions: 1800 mm (length) × 800 mm (width) × 1400 mm (height)
Air Pipe Connection: 10 mm outer diameter
Air Source Pressure: 0.4~0.6 MPa
Machine Weight: 290 KG
Power Consumption: 0.5 KW
