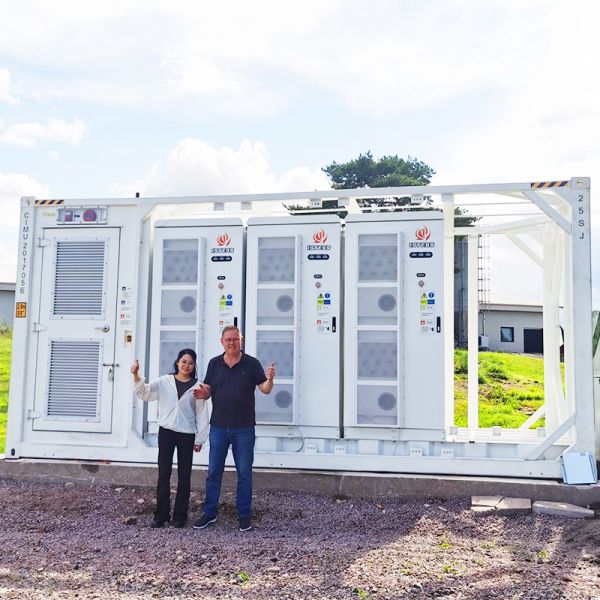

Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Specifications
Model Number :
EnerCube3.0
Cooling :
Air Cooling
Battery Type :
LiFePO4
Technical Support :
Send Engineer Team
Place of Origin :
China
ESS container :
10ft/20ft/40ft
Payment Terms :
MoneyGram,Western Union,T/T,D/A,L/C,D/P
Brand Name :
COENG
Description
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
Product Overview
The EnerCube3.0 Container Battery Energy Storage System features an All-in-One modular design that integrates multiple critical components into a single, efficient unit. This comprehensive system combines the battery PACK, intelligent energy storage converter (PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), temperature control system (TcS), and intelligent monitoring system (IMS) within a standardized 20HQ container design.
This integrated approach saves valuable application space while facilitating transportation, hoisting, installation, and maintenance operations.
Technical Specifications
DC Side Parameters
Type P400C860 P500C1075 P600C1290 P700C1505 P800C1720
Cell type & capacity LiFePO₄-280Ah
Battery module type 1P20S
System configuration 4*1P240S 5*1P240S 6*1P240S 7*1P240S 8*1P240S
Capacity (BOL) 860kWh 1075kWh 1290kWh 1505kWh 1720kWh
AC Side Parameters
Type P400C860 P500C1075 P600C1290 P700C1505 P800C1720
Grid type 3P4W+PE
Rated output power 400kW 500kW 600kW 700kW 800kW
Rated voltage AC400V
Rated frequency 50/60(±5)Hz
Maximum output current 577A 722A 866A 1010A 1155A
Harmonics <3%(@rated power)
Overload capacity 110%,10mins;120%,60s
General Parameters
  • Isolation transformer: No
  • Protection level: Outdoor installation (Battery cabinet: IP55, Electrical room: IP34)
  • Container anti-corrosion grade: C3
  • Operation temperature: -20℃~50℃
  • Relative humidity: 0~95% (non-condensing)
  • Permissible altitude: <2000m
  • Cooling method: Battery cabinet: HVAC, Electrical room: forced air cooling
  • Fire fighting system: FAS & FM200/Novec1230
  • Noise emission: ≤75dB
  • Dimension (W*D*H): 20HQ container (6058mm*2438mm*2896mm)
  • Maximum weight: 24500kg
  • Communication interface: Ethernet
  • Communication protocol: Modbus TCP/IP
  • Warranty: 5 years (can be extended to 10 years)
Certifications
  • System: UN3536, LVD, EMC, RoHS
  • Cell: IEC62619, UL1973, UL9540A
  • PACK: UN38.3
  • PCS: G99, EN50549, AS4777.2, VDE4105
Product Gallery
Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation Fully Integrated Containerized ESS Power Station with PDU and Cluster Fire Isolation
