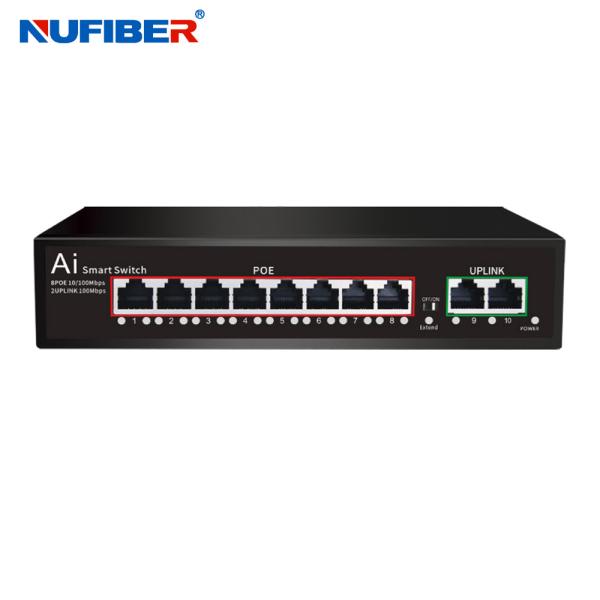

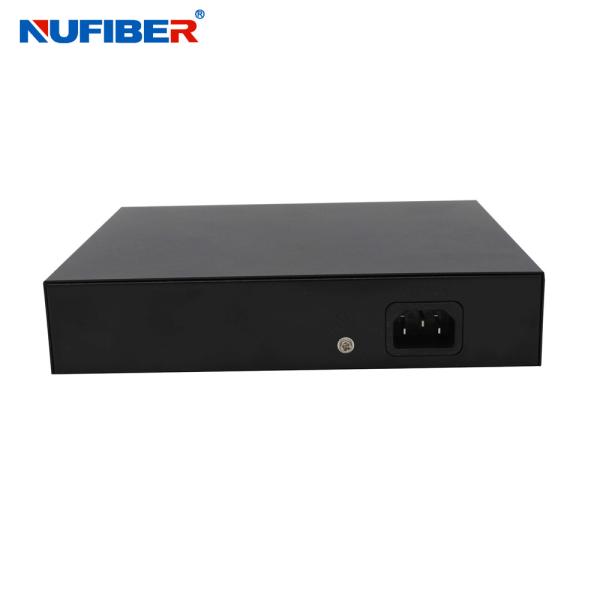

250m Distance 8 Port 10/100 Mbps Smart POE Switch
250m Distance 8 Port 10/100 Mbps Smart POE Switch
250m Distance 8 Port 10/100 Mbps Smart POE Switch
250m Distance 8 Port 10/100 Mbps Smart POE Switch
Specifications
Brand Name :
NuFiber
Model Number :
NF-PSE5208
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1-3 work days
Packaging Details :
20pcs/carton, carton size: 452*372*297mm
Material :
Iron Case
Color :
Black
Data Transfer Rate :
10/100Mbps
POE ports :
8
Uplink port :
2
Standard :
IEEE802.3af/at
Total power :
72Watts
Power Supply :
Built-in power 52V/2.3A/120W
OEM & ODM :
Accepted
Warranty :
12months
Single POE port max :
30W
Description

smart POE Switch 10/100Mbps 8port POE+2Uplink port high speed poe ethernet network switch

Specifications

Hardware

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control

Ports

8x100M bit Auto-MDIX PoE / PoE+ RJ-45 ports

Data Transfer Rate

Ethernet: 10/100 Mbps (Half / Full Duplex)

Forwarding Rate

100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps

Data RAM Buffer

96 K bytes

Address Table

2 K MAC entries

Switch Fabric

1Gbps

Power

DC:52V 1.38A

Diagnostic LEDs

Power, PoE, Link / Activity

Power Consumption

Min: 8 Watts (standby)
Max: 72 Watts
PoE Max: 60 Watts (4 x 15 watts PoE devices connected

Temperature

Operating: 0° ~ 50°C
Storage: -20° ~ 70°C

Humidity

Max 90% (non-condensing)

Dimensions

140 x 91 x 28 mm

Weight

0.75 kg

PoE

Power over Ethernet

Up to 25.5 watts for PoE
PoE: pin 3,6 for power- and pin 1,2 for power+

Features

  • 8*10/100mbps POE port,2*10/100mbps UP Link port
  • 250m Distance
  • Support IEEE802.3AF/AT
  • Whole Power:120W(52V 2.3A)
  • All port supported by MDI/MDIX auto flip and self negotiation
  • Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
  • Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
  • Each port max. power supply reached 30W.
